21" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - ALR46WIF

This product has been discontinued by the manufacture and is no longer available.

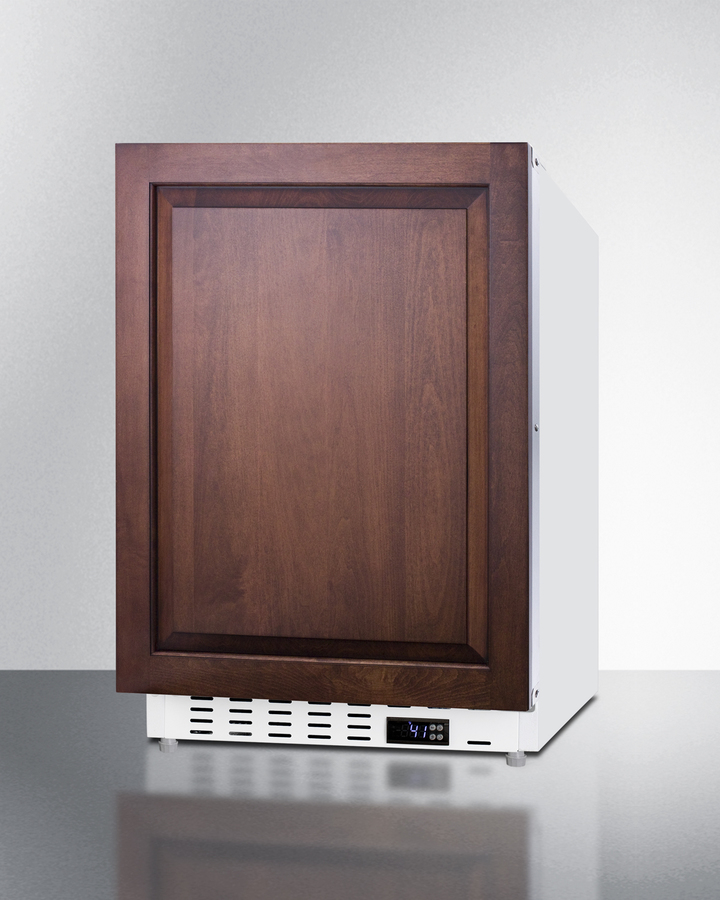

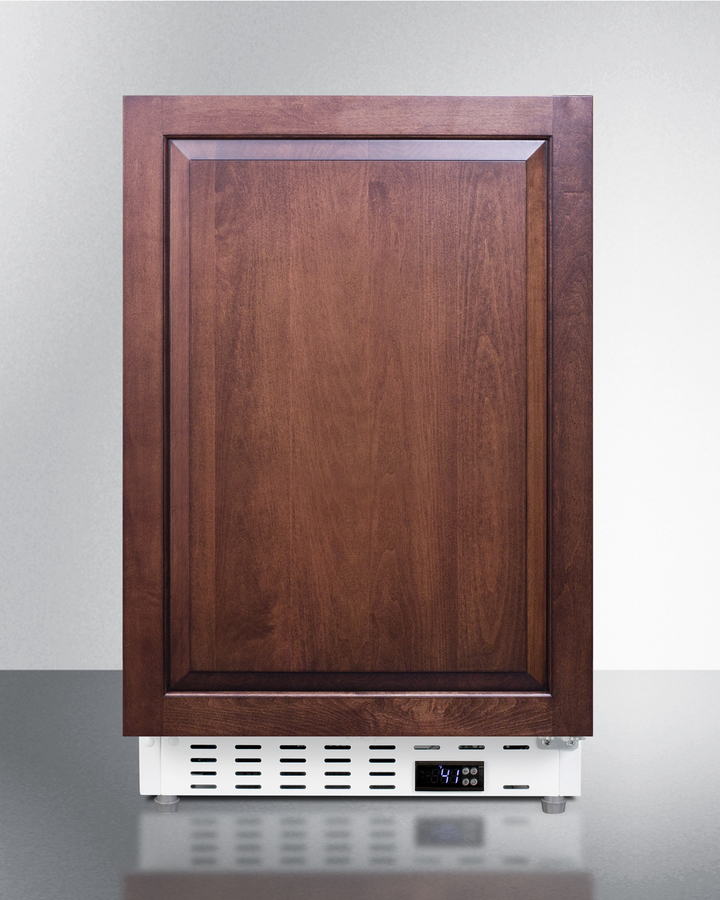

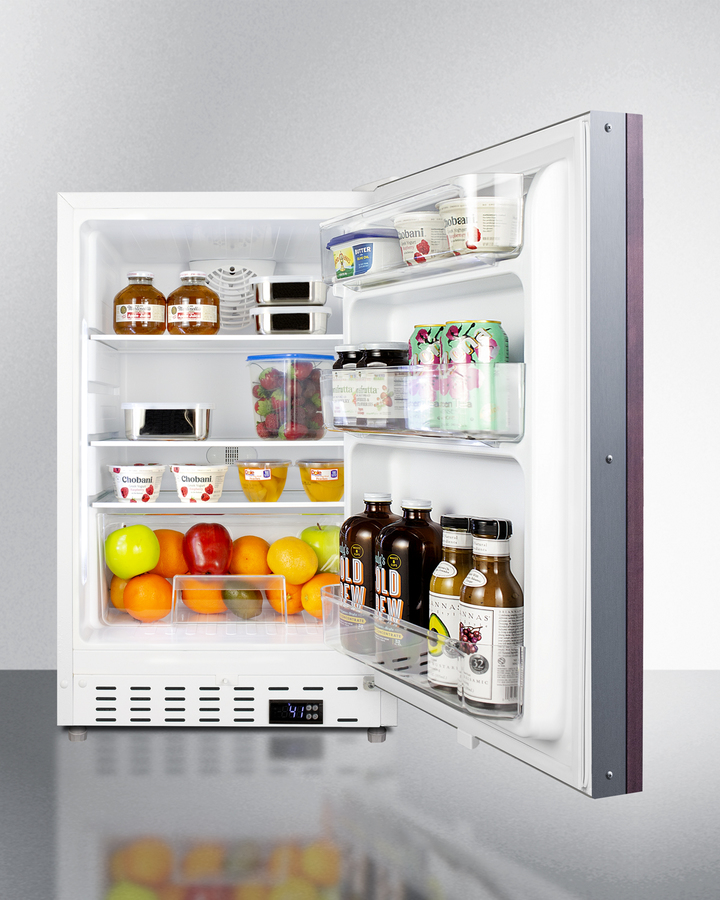

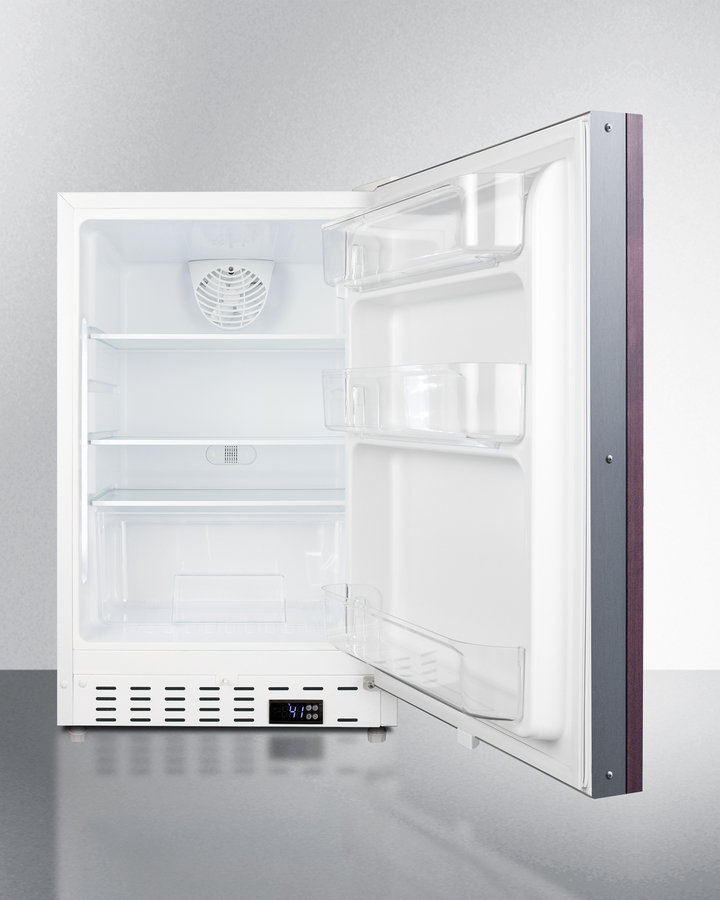

21" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)

Model: ALR46WIF

20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF
+2more

Color : White

20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WIF
White

Depth : Counter Depth

Key Features

  • Built-in capable

  • Panel-ready door

  • Adjustable thermostat

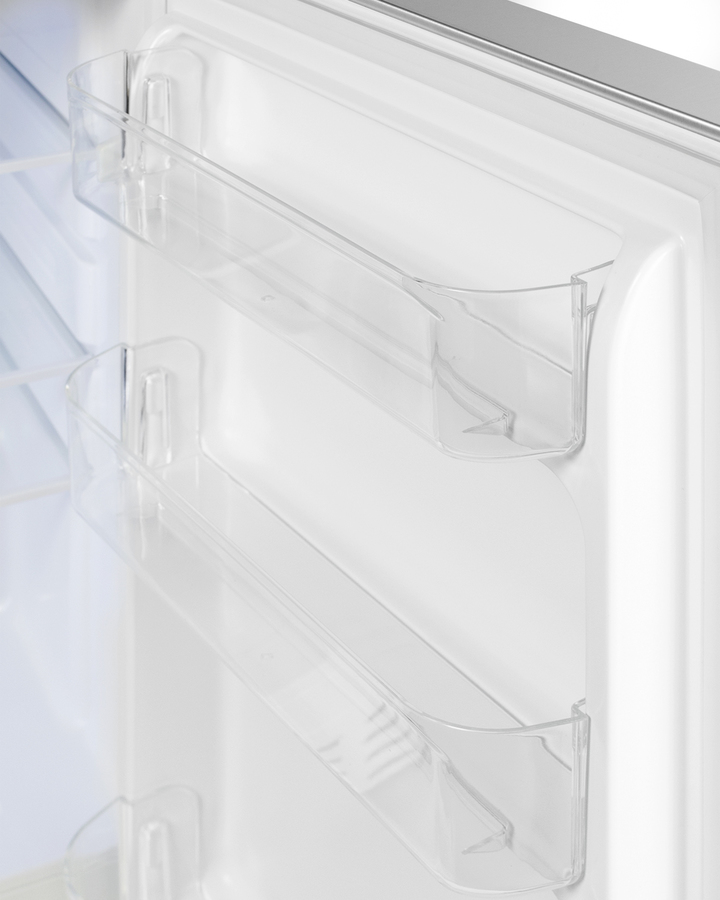

  • Door shelves

  • Fruit and vegetable crisper

  • ADA compliant design

  • 3" thick door

  • Temperature alarms

Read More

Description

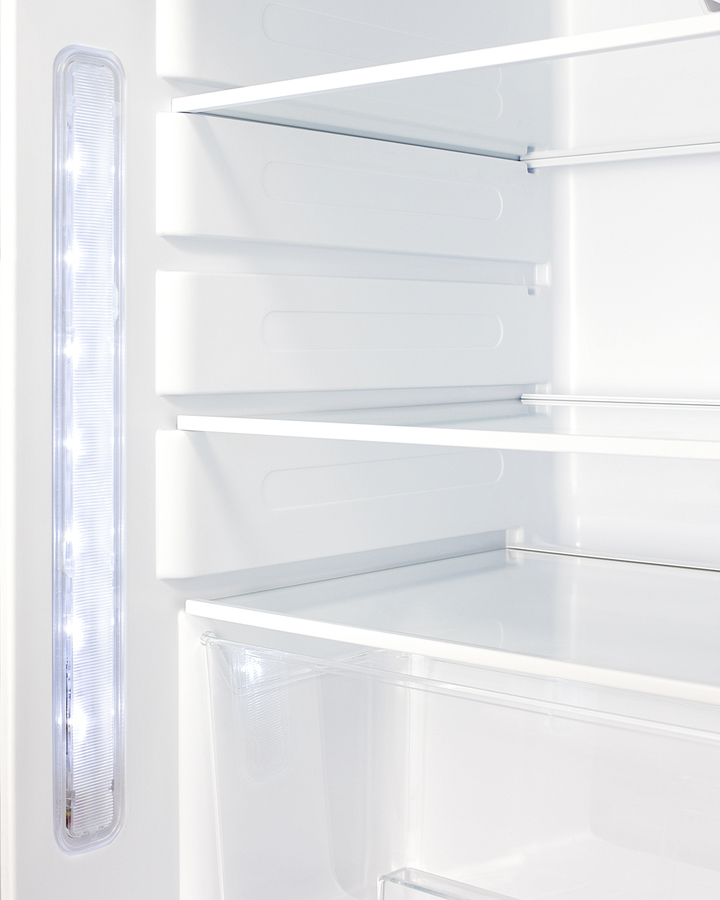

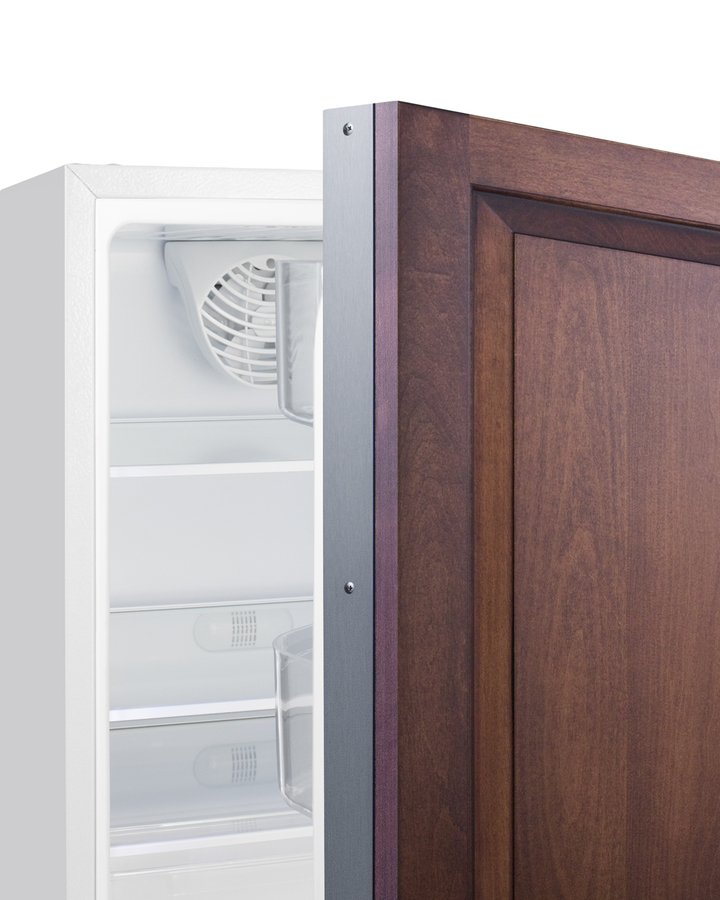

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALR46WIF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALR46WIF features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALR46WIF is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36IF all-freezer. Additional choices in complete stainless steel or a white exterior are available.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

Built-in capable

Panel-ready door

Adjustable thermostat

Door shelves

Fruit and vegetable crisper

ADA compliant design

3" thick door

Temperature alarms

Adjustable glass shelves

Sealed back

Right-angle plug

Automatic defrost

Interior light

Open door alarm

Matching all-freezer

100% CFC free

Fully finished white cabinet

Specifications

Warranty

Parts1 Year
Labor1 Year

Overview Refrigerator Features Dimensions

Nominal Height32.0" (81 cm)
Height of Cabinet31.75" (81 cm)
Height to Hinge Cap32.0" (81 cm)
Nominal Width21.0" (53 cm)
Width20.25" (51 cm)
Nominal Depth23.0" (58 cm)
Depth23.0" (58 cm)
Depth with door at 90°40.25" (102 cm)
Capacity3.53 cu.ft. (100 L)
Defrost TypeAutomatic
DoorPanel-Ready
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Energy Usage/Year251.0kWh/year
Amps1.1
Voltage/Frequency115 V AC/60 Hz
Weight75.0 lbs. (34 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101076645
Door SwingRHD
ReversibleFactory Reversible
Crisper Qty1
Crisper FinishTransparent
Crisper CoverGlass
Shelf TypeGlass
Shelf Qty3
Full Door Shelf Qty3
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount0.99oz.
High Side PSI180.0
Low Side PSI80.0
Level Legs Qty2
Wheel Qty2
Interior LightYes
Temperature Range35 to 46°F
Sound Level33.2 dB
Interior Height23.5" (60 cm)
Interior Width16.25" (41 cm)
Interior Depth17.0" (43 cm)
Compressor Step Height6.25" (16 cm)
Compressor Step Width16.25" (41 cm)
Compressor Step Depth6.0" (15 cm)
