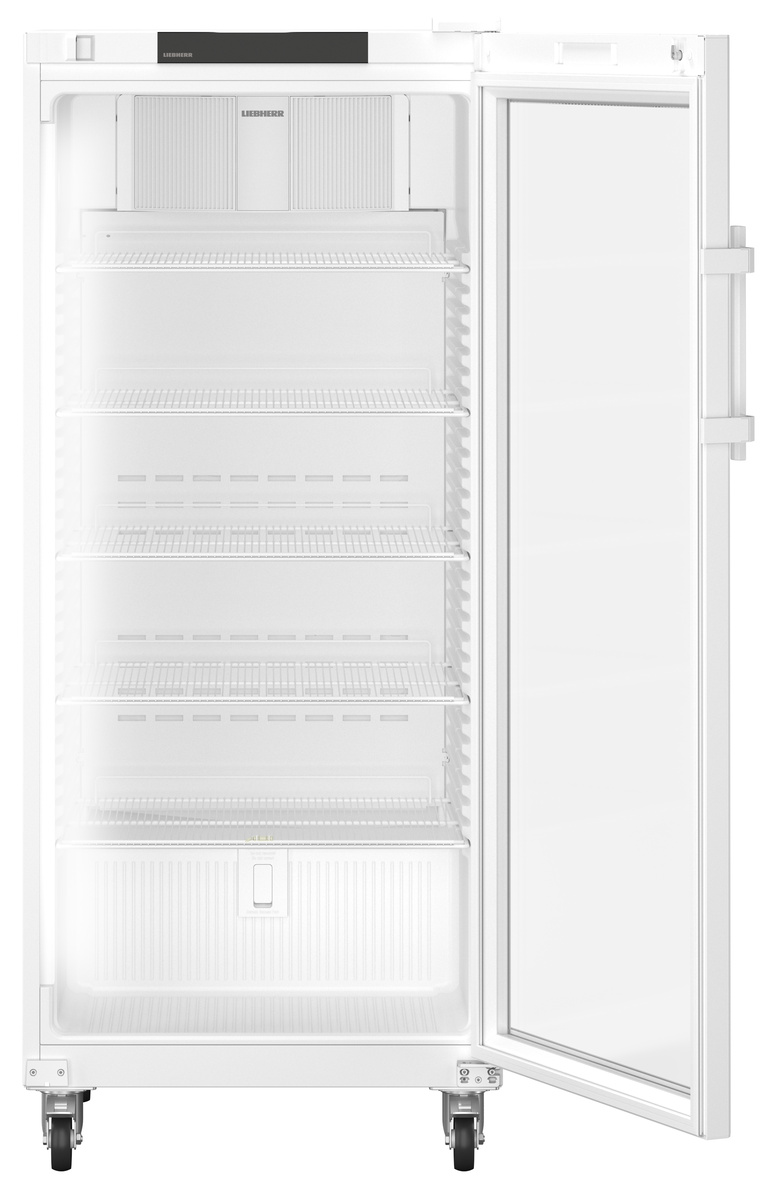

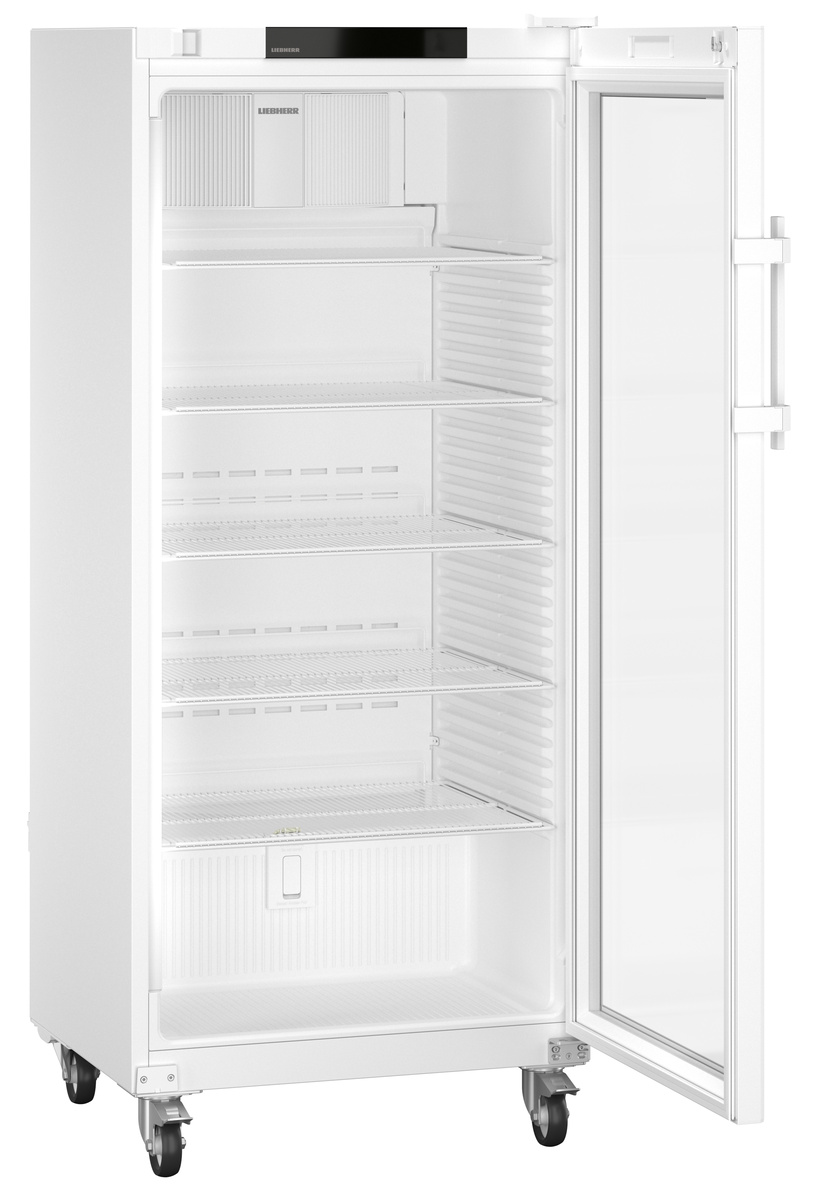

Laboratory refrigerator with convection cooling, Right Hinged - SRFVH5511PERFECTION

Laboratory refrigerator with convection cooling, Right Hinged

Model: SRFVH5511PERFECTION

Laboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTIONLaboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTIONLaboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTIONLaboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTION
Laboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTION
Laboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTION
Laboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTION
Laboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTION

Color : Other

Laboratory refrigerator with convection cooling, Right Hinged SRFVH5511PERFECTION
Other

Key Features

  • DIN 13277 compliant

  • Energy Star

  • +2 °C SafetyDevice

  • German engineering

  • ±2°C temperature stability

  • Ultra efficient

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

DIN 13277 compliant

Laboratory and pharmacy refrigerators from Liebherr meet all the necessary features and performance criteria to fully comply with DIN 13277. DIN 13277 defines the requirements and test specifications for refrigerators and freezers used in laboratories and for storing medicinal products.

Energy Star

Liebherr refrigerators help to produce less energy waste and greenhouse gas emissions with the aim of having the least damaging effect on the environment and offering solutions that help consumers conserve energy.

+2 °C SafetyDevice

If the temperature falls below +2 °C due to a malfunction while the temperature setting is at +5 °C or higher, the SafetyDevice takes control, stabilizing the temperature, activating the alarm and protecting the contents from freezing. At colder settings, this activation threshold decreases relatively with the temperature setting.

German engineering

Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.

±2°C temperature stability

Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr appliances have an impressive maximum deviation of just ±2 °C from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.

Ultra efficient

Energy-efficient refrigerators and freezers help with ever increasing electricity prices. Liebherr fully utilizes the savings potential of every component – from the compressor to the seal, to the lighting and electronics. The ultra-efficient appliances in the Perfection series, for example, demonstrate how this has a positive effect on your overall operating costs.

Specifications

Other

CertificationsDIN 13277 / IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
Cleanroom class according to ISO EN 14664-1ISO class 4
Load-bearing capacity of shelf areas, refrigerator compartment132.3
Total gross volume20.8
Total net volume19.3

Dimensions & Weight

Width29.44 in.
Height70.63 in.
Length30.31 in.
Weight231.5 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.44 in.
Shipping Height75.63 in.
Shipping Length35.31 in.
Shipping Weight271.5 lbs.
Total of Shipping Weight271.5 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement36.47 ft³
Dimensional Weight453.38 lbs.
Total of Cubes36.47 ft³
Total of Dimensional Weight453.38 lbs.

Exterior dimensions: height/width/depth

Exterior dimensions: height/width/depth70 5/8 | 29 7/16 | 30 5/16 inch

Adjustable temperature range

Adjustable temperature range+3 °C to +16 °C

General product information

ClassificationPerfection
GTIN9005382256176
Model typeLaboratory refrigerator with convection cooling

Output and consumption

RefrigerantR 600a
Voltage115-127 V ~
Heat distribution systemAir cooling
Frequency60 Hz
Energy consumption in 24h1.360 kWh / 24h
Measurement methodology for energy consumptionLaboratory Grade Refrigerators and Freezers Programme Requirements Version 1.1
Noise level48 dB
Energy consumption per year497 kWh/a
Ambient temperature50°F to 95°F
Heat emission388 kJ / h
Rated power consumption Watt145.0 W
Maximum fluctuation2.0 °C
Gradient3.3 °C

Control and functions

Product sensorintegrated
min./max. temperature recordingYes
Control unitTouch & Swipe
Power failure alarmimmediately upon power failure for min. 12h
potential-free contact
Connectivity typeSmartModule
InterfaceWLAN/LAN
Malfunction: Warning signaloptical and acoustical
Data loggerintegrated, USB interface
Alarm historyYes
positive temperature deviation from the setpoint1.5 Kelvin
negative temperature deviation from the setpoint-1.9 Kelvin
Heating from +5 °C to +10 °C (empty, +25 °C TU)35 min
Cooling time from +25°C to +5°C (empty, +25°C TU)45 min
Recovery time after 1 min door opening (empty, +25 °C TU, according to EN 60068-3)10 min

Refrigerator compartment

of which adjustable5
Bottom grid shelf
Number of storage shelves6
Drawers0
Temperature displayexternal digital
Adjustable temperature range+3 °C to +16 °C
Defrosting methodautomatic
Interior lightLED lighting column, left

Design and materials

Material of adjustable feet
HandleAntimicrobial handle with opening mechanism
Material of interior containersPlastic white
Side wall materialsteel
Cabinet Materialwhite
Cabinet MaterialGlass
Storage shelf material, fridge compartmentPlastic-coated grids

Set-up and installation

Castors
Self-closing door
Door sealReplaceable
Type of castorsCastors with arrestor at the front, fixed castors at the rear
Door hinge replacementPossible for customer
Door hingesRight
Height-adjustable feet— mm
Lockmechanical
Max. height of the installation site4,900 ft above sea level
Connector cable (length)3,000 mm

Specifications

CertificationsDIN 13277 / IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
Total gross volume20.8 cubic feet
Total net volume19.3 cubic feet
Exterior dimensions: height/width/depth70 5/8 | 29 7/16 | 30 5/16 inch
Weight (with packaging)249.80 pounds
Exterior dimensions: height/width/depth (with packaging)1,850.0 / 765.0 / 840.0 mm
Weight (without packaging)237.70 pounds
Load-bearing capacity of shelf areas, refrigerator compartment132.3 pounds
Measurements: net depth of storage shelves in inches21 1/8 inch
Clean room class according to ISO EN 14664-1ISO class 4
