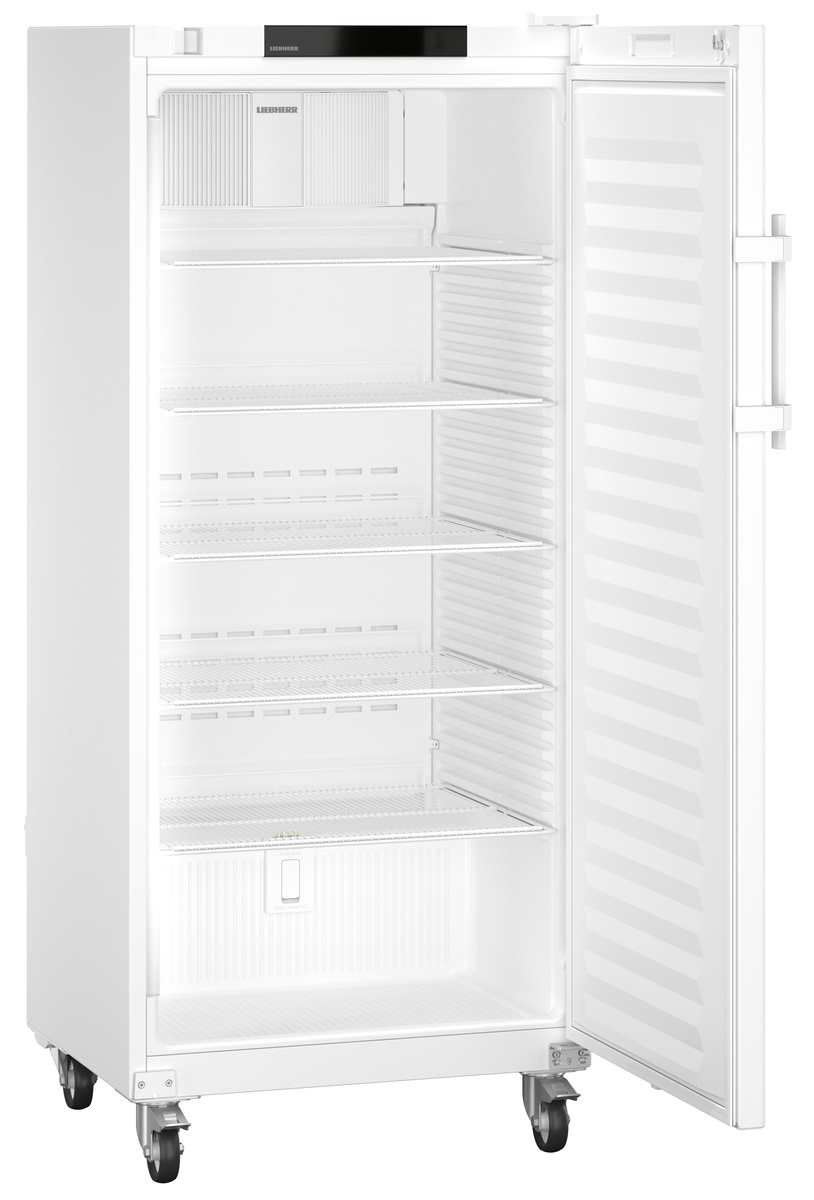

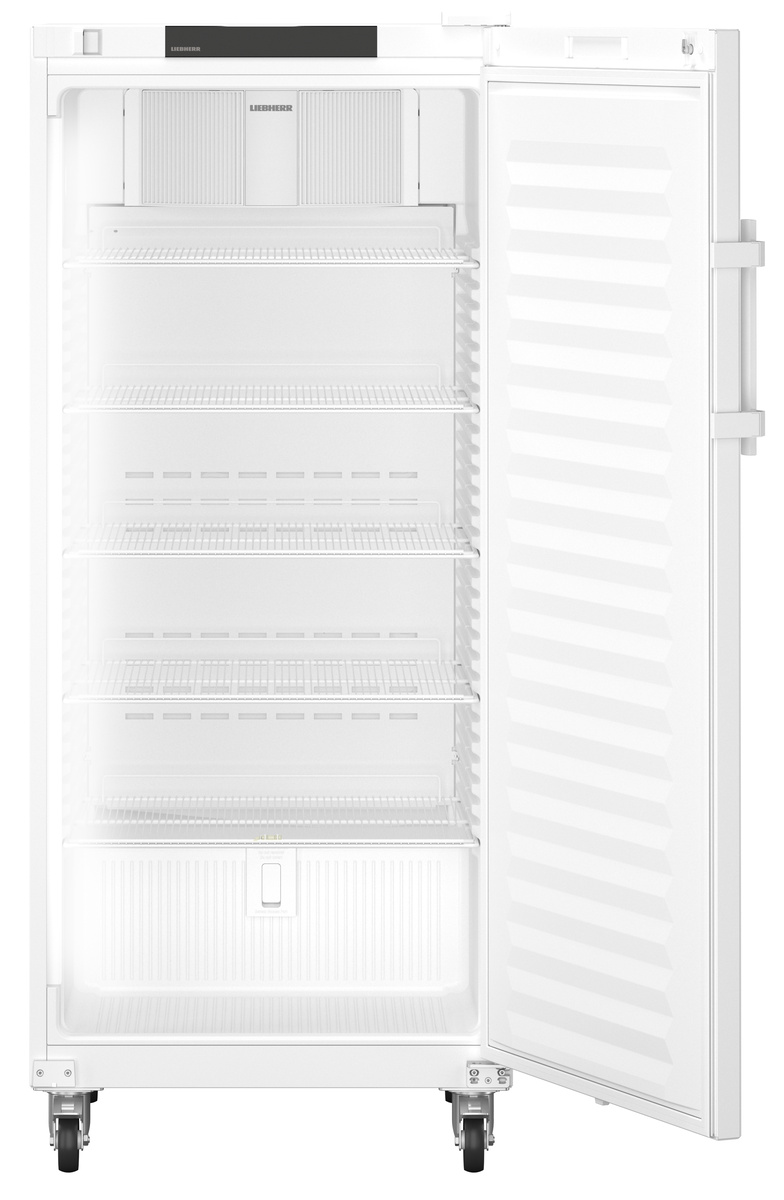

Laboratory refrigerator with convection cooling, Right Hinged - SRFVH5501PERFECTION
Laboratory refrigerator with convection cooling, Right Hinged
Model: SRFVH5501PERFECTION
Laboratory refrigerator with convection cooling, Right Hinged
Model: SRFVH5501PERFECTION
Color : Other
Key Features
DIN 13277 compliant
Energy Star
+2 °C SafetyDevice
German engineering
±2°C temperature stability
Ultra efficient
Available from Drimmers Appliances, serving customers throughout Florida.
Features
DIN 13277 compliant
Laboratory and pharmacy refrigerators from Liebherr meet all the necessary features and performance criteria to fully comply with DIN 13277. DIN 13277 defines the requirements and test specifications for refrigerators and freezers used in laboratories and for storing medicinal products.
Energy Star
Liebherr refrigerators help to produce less energy waste and greenhouse gas emissions with the aim of having the least damaging effect on the environment and offering solutions that help consumers conserve energy.
+2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction while the temperature setting is at +5 °C or higher, the SafetyDevice takes control, stabilizing the temperature, activating the alarm and protecting the contents from freezing. At colder settings, this activation threshold decreases relatively with the temperature setting.
German engineering
Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
±2°C temperature stability
Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr appliances have an impressive maximum deviation of just ±2 °C from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.
Ultra efficient
Energy-efficient refrigerators and freezers help with ever increasing electricity prices. Liebherr fully utilizes the savings potential of every component – from the compressor to the seal, to the lighting and electronics. The ultra-efficient appliances in the Perfection series, for example, demonstrate how this has a positive effect on your overall operating costs.
Specifications
Other
| Certifications | DIN 13277 / IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1 |
| Cleanroom class according to ISO EN 14664-1 | ISO class 4 |
| Total gross volume | 19.7 |
| Load-bearing capacity of shelf areas, refrigerator compartment | 132.3 |
| Total net volume | 18.3 |
Dimensions & Weight
| Width | 29.44 in. |
| Height | 70.63 in. |
| Length | 30.31 in. |
| Weight | 196.2 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.44 in. |
| Shipping Height | 75.63 in. |
| Shipping Length | 35.31 in. |
| Shipping Weight | 236.2 lbs. |
| Total of Shipping Weight | 236.2 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 36.47 ft³ |
| Dimensional Weight | 453.38 lbs. |
| Total of Cubes | 36.47 ft³ |
| Total of Dimensional Weight | 453.38 lbs. |
Exterior dimensions: height/width/depth
| Exterior dimensions: height/width/depth | 70 5/8 | 29 7/16 | 30 5/16 inch |
Adjustable temperature range
| Adjustable temperature range | +3 °C to +16 °C |
General product information
| GTIN | 9005382256114 |
| Classification | Perfection |
| Model type | Laboratory refrigerator with convection cooling |
Output and consumption
| Frequency | 60 Hz |
| Refrigerant | R 600a |
| Heat distribution system | Air cooling |
| Voltage | 115-127 V ~ |
| Energy consumption in 24h | 0.770 kWh / 24h |
| Measurement methodology for energy consumption | Laboratory Grade Refrigerators and Freezers Programme Requirements Version 1.1 |
| Noise level | 48 dB |
| Energy consumption per year | 282 kWh/a |
| Ambient temperature | 50°F to 95°F |
| Heat emission | 238 kJ / h |
| Rated power consumption Watt | 130.0 W |
| Maximum fluctuation | 1.7 °C |
| Gradient | 2.2 °C |
Control and functions
| Connectivity type | SmartModule |
| Alarm history | Yes |
| Interface | WLAN/LAN |
| Malfunction: Warning signal | optical and acoustical |
| Control unit | Touch & Swipe |
| Power failure alarm | immediately upon power failure for min. 12h |
| potential-free contact | ✔ |
| Data logger | integrated, USB interface |
| min./max. temperature recording | Yes |
| Product sensor | integrated |
| positive temperature deviation from the setpoint | 1.3 Kelvin |
| negative temperature deviation from the setpoint | -2.6 Kelvin |
| Heating from +5 °C to +10 °C (empty, +25 °C TU) | 60 min |
| Cooling time from +25°C to +5°C (empty, +25°C TU) | 40 min |
| Recovery time after 1 min door opening (empty, +25 °C TU, according to EN 60068-3) | 10 min |
Refrigerator compartment
| Defrosting method | automatic |
| Number of storage shelves | 6 |
| Adjustable temperature range | +3 °C to +16 °C |
| Temperature display | external digital |
| Bottom grid shelf | — |
| Drawers | 0 |
| of which adjustable | 5 |
| Interior light | LED lighting column, left |
Design and materials
| Side wall material | steel |
| Material of adjustable feet | — |
| Handle | Antimicrobial handle with opening mechanism |
| Material of interior containers | Plastic white |
| Cabinet Material | white |
| Cabinet Material | Full-panel door |
| Storage shelf material, fridge compartment | Plastic-coated grids |
Set-up and installation
| Door hinges | Right |
| Self-closing door | ✔ |
| Door hinge replacement | Possible for customer |
| Door seal | Replaceable |
| Castors | ✔ |
| Type of castors | Castors with arrestor at the front, fixed castors at the rear |
| Height-adjustable feet | — mm |
| Lock | mechanical |
| Max. height of the installation site | 6,500 ft above sea level |
| Connector cable (length) | 3,000 mm |
Specifications
| Certifications | DIN 13277 / IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1 |
| Total gross volume | 19.7 cubic feet |
| Total net volume | 18.3 cubic feet |
| Exterior dimensions: height/width/depth | 70 5/8 | 29 7/16 | 30 5/16 inch |
| Weight (with packaging) | 216.10 pounds |
| Exterior dimensions: height/width/depth (with packaging) | 1,850.0 / 765.0 / 840.0 mm |
| Weight (without packaging) | 196.20 pounds |
| Load-bearing capacity of shelf areas, refrigerator compartment | 132.3 pounds |
| Measurements: net depth of storage shelves in inches | 21 1/8 inch |
| Clean room class according to ISO EN 14664-1 | ISO class 4 |
