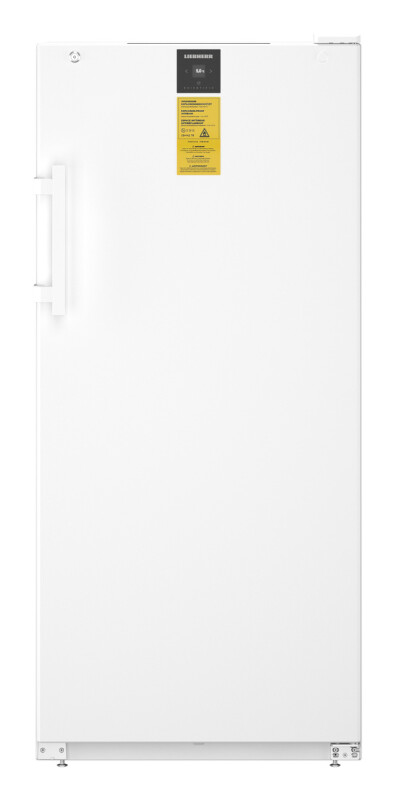

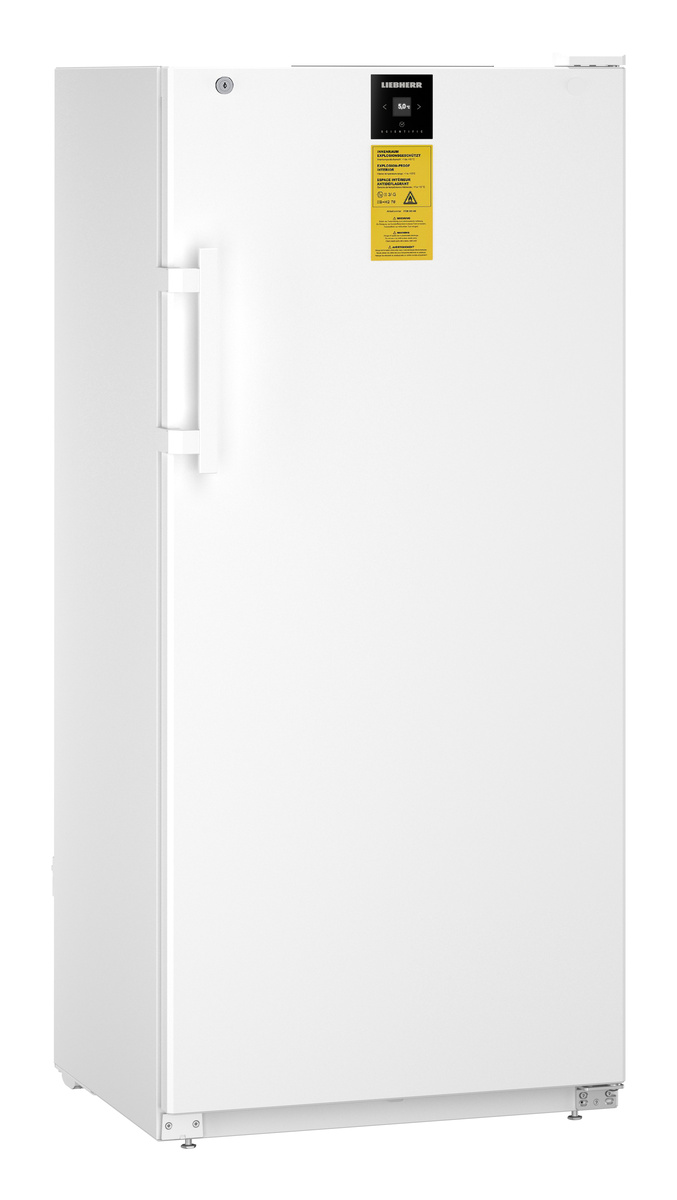

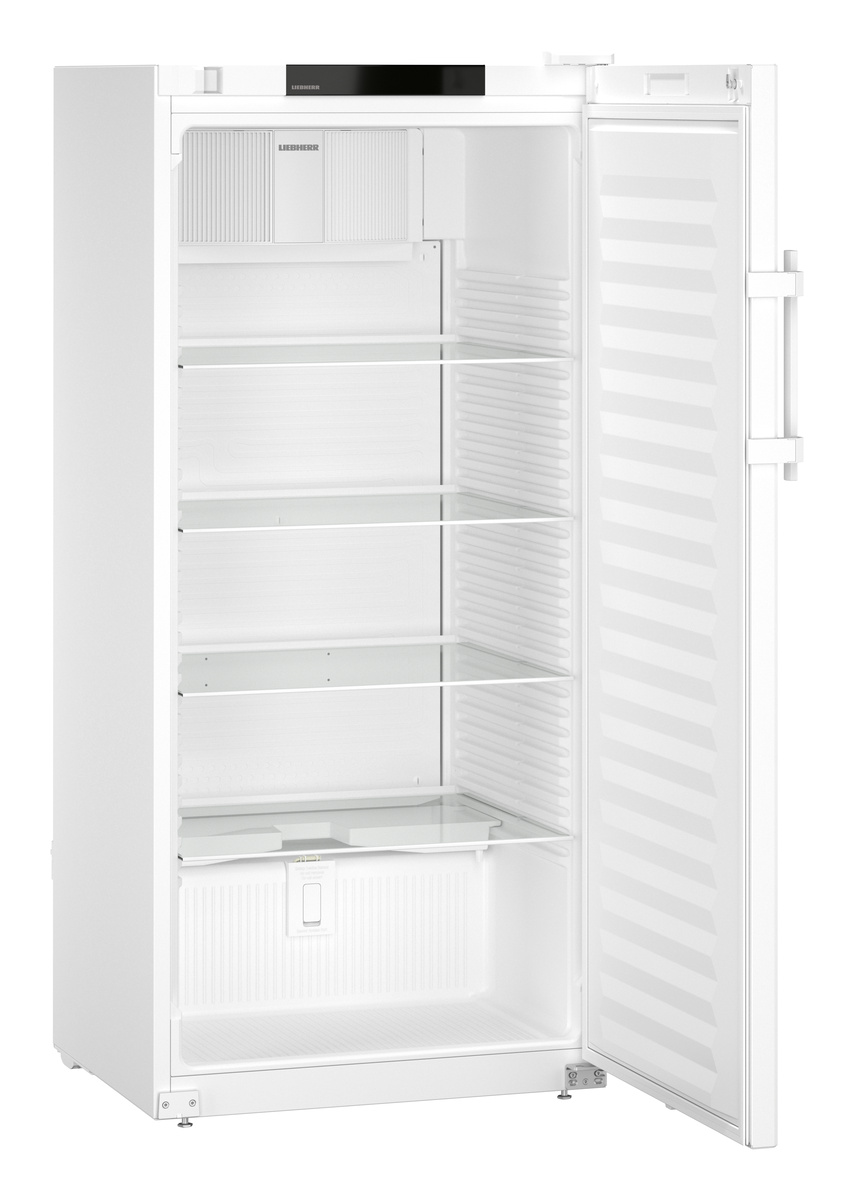

Laboratory refrigerator with convection cooling and an interior free of ignition sources, Right Hinged - SRFFG5501PERFORMANCE
Laboratory refrigerator with convection cooling and an interior free of ignition sources, Right Hinged
Model: SRFFG5501PERFORMANCE
Laboratory refrigerator with convection cooling and an interior free of ignition sources, Right Hinged
Model: SRFFG5501PERFORMANCE
Color : Other
Key Features
Energy Star
±3 °C temperature stability
+2 °C SafetyDevice
Retrofittable WiFi/LAN interface
German engineering
Compliance with applicable standards set by NFPA 45 and NFPA 99
Available from Drimmers Appliances, serving customers throughout Florida.
Features
Energy Star
Liebherr refrigerators help to produce less energy waste and greenhouse gas emissions with the aim of having the least damaging effect on the environment and offering solutions that help consumers conserve energy.
±3 °C temperature stability
Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr refrigerators have an impressive maximum deviation of just ±3°C from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.
+2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction while the temperature setting is at +5 °C or higher, the SafetyDevice takes control, stabilizing the temperature, activating the alarm and protecting the contents from freezing. At colder settings, this activation threshold decreases relatively with the temperature setting.
Retrofittable WiFi/LAN interface
This is how easy it is to network a Liebherr: With the retrofittable WiFi and LAN interface, appliances can be effortlessly connected to external systems, such as SmartMonitoring from Liebherr. With the digital monitoring solution, the storage temperature is controlled and documented conveniently and securely via the subsequently set up interface.
German engineering
Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
Compliance with applicable standards set by NFPA 45 and NFPA 99
The interior of Liebherr refrigerators and freezers designed for storing flammable materials is free from ignition sources and suitable for use with flammable substances in sealed containers. These units meet the requirements for Class I, Division 2, Gas Group B, and comply with applicable standards set by NFPA 45 and NFPA 99.
Specifications
Other
| Cleanroom class according to ISO EN 14664-1 | ISO class 4 |
| Certifications | IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1 |
| Total net volume | 18.3 |
| Total gross volume | 19.7 |
| Load-bearing capacity of shelf areas, refrigerator compartment | 88.2 |
| ATEX classification | < Ex > II 3/- G Ex ec IIC T6 Gc/- |
Dimensions & Weight
| Width | 29.44 in. |
| Height | 66.31 in. |
| Length | 30.31 in. |
| Weight | 191.8 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.44 in. |
| Shipping Height | 71.31 in. |
| Shipping Length | 35.31 in. |
| Shipping Weight | 231.8 lbs. |
| Total of Shipping Weight | 231.8 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 34.24 ft³ |
| Dimensional Weight | 425.7 lbs. |
| Total of Cubes | 34.24 ft³ |
| Total of Dimensional Weight | 425.7 lbs. |
Exterior dimensions: height/width/depth
| Exterior dimensions: height/width/depth | 66 5/16 | 29 7/16 | 30 5/16 inch |
Adjustable temperature range
| Adjustable temperature range | +3 °C to +16 °C |
General product information
| Classification | Performance |
| GTIN | 9005382256299 |
| Model type | Laboratory refrigerator with convection cooling and an interior free of ignition sources |
Output and consumption
| Voltage | 115-127 V ~ |
| Refrigerant | R 600a |
| Frequency | 60 Hz |
| Heat distribution system | Air cooling |
| Energy consumption in 24h | 0.730 kWh / 24h |
| Measurement methodology for energy consumption | Laboratory Grade Refrigerators and Freezers Programme Requirements Version 1.1 |
| Noise level | 48 dB |
| Energy consumption per year | 267 kWh/a |
| Ambient temperature | 50°F to 95°F |
| Heat emission | 250 kJ / h |
| Rated power consumption Watt | 110.0 W |
| Maximum fluctuation | 3.0 °C |
| Gradient | 3.7 °C |
Control and functions
| Power failure alarm | when mains power returns |
| Connectivity type | SmartModule |
| potential-free contact | ✔ |
| Control unit | Touch |
| min./max. temperature recording | Yes |
| Alarm history | No |
| Product sensor | no |
| Interface | WLAN/LAN (optional) |
| Malfunction: Warning signal | optical and acoustical |
| positive temperature deviation from the setpoint | 1.2 Kelvin |
| negative temperature deviation from the setpoint | -3.3 Kelvin |
| Heating from +5 °C to +10 °C (empty, +25 °C TU) | 75 min |
| Cooling time from +25°C to +5°C (empty, +25°C TU) | 56 min |
| Recovery time after 1 min door opening (empty, +25 °C TU, according to EN 60068-3) | 9 min |
Refrigerator compartment
| Adjustable temperature range | +3 °C to +16 °C |
| Bottom grid shelf | — |
| Temperature display | external digital |
| Drawers | 0 |
| Number of storage shelves | 6 |
| Interior light | — |
| Defrosting method | automatic |
| of which adjustable | 5 |
Design and materials
| Material of adjustable feet | Steel, zinced |
| Side wall material | steel |
| Material of interior containers | Plastic white |
| Handle | Antimicrobial handle with opening mechanism |
| Cabinet Material | white |
| Cabinet Material | Full-panel door |
| Storage shelf material, fridge compartment | Glass |
Set-up and installation
| Self-closing door | ✔ |
| Door hinges | Right |
| Door hinge replacement | Possible for customer |
| Door seal | Replaceable |
| Type of castors | — |
| Castors | — |
| Height-adjustable feet | — mm |
| Lock | mechanical |
| Max. height of the installation site | 6,500 ft above sea level |
| Connector cable (length) | 3,000 mm |
Specifications
| Certifications | IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1 |
| Total gross volume | 19.7 cubic feet |
| Total net volume | 18.3 cubic feet |
| Exterior dimensions: height/width/depth | 66 5/16 | 29 7/16 | 30 5/16 inch |
| Weight (with packaging) | 206.80 pounds |
| Exterior dimensions: height/width/depth (with packaging) | 1,720.0 / 765.0 / 840.0 mm |
| Weight (without packaging) | 194.00 pounds |
| Load-bearing capacity of shelf areas, refrigerator compartment | 88.2 pounds |
| Measurements: net depth of storage shelves in inches | 21 3/16 inch |
| Flammable Storage Classification Interior | II 3/- G Ex ec IIC T6 Gc/- |
| Clean room class according to ISO EN 14664-1 | ISO class 4 |
