20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant - ADA404REFAL
20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant
Model: ADA404REFAL











20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant
Model: ADA404REFAL
Key Features
ADA compliant design
3" thick door
+2°C to +8°C operation
Built-in capable
Open door alarm
External temperature readout
High/low temperature alarm
Flat door liner
Description
Available from Drimmers Appliances, serving customers throughout Florida.
Features
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
+2°C to +8°C operation
Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute
External temperature readout
Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

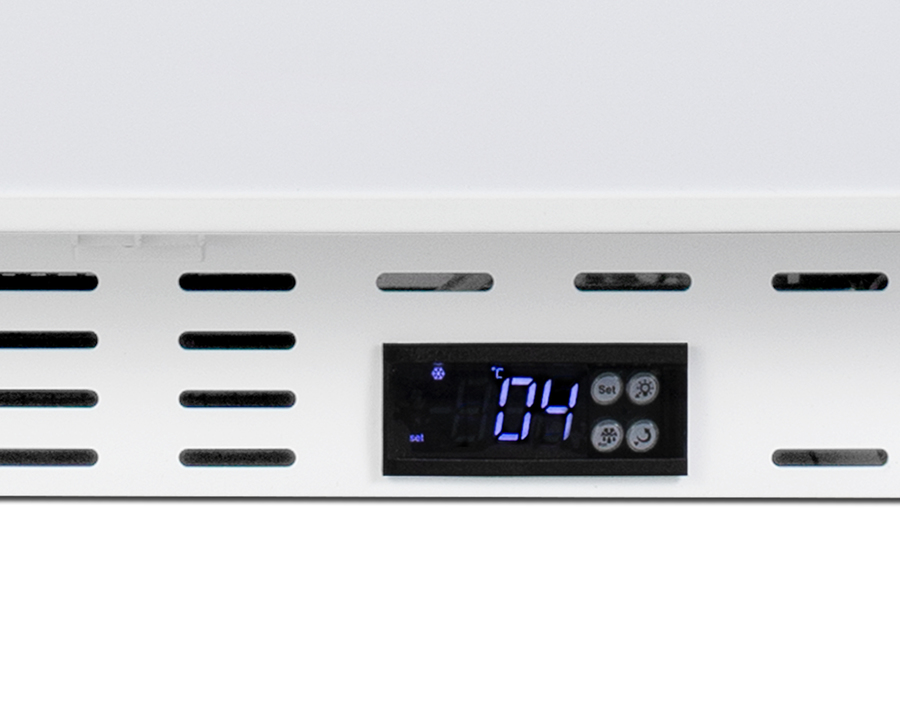

Adjustable digital thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

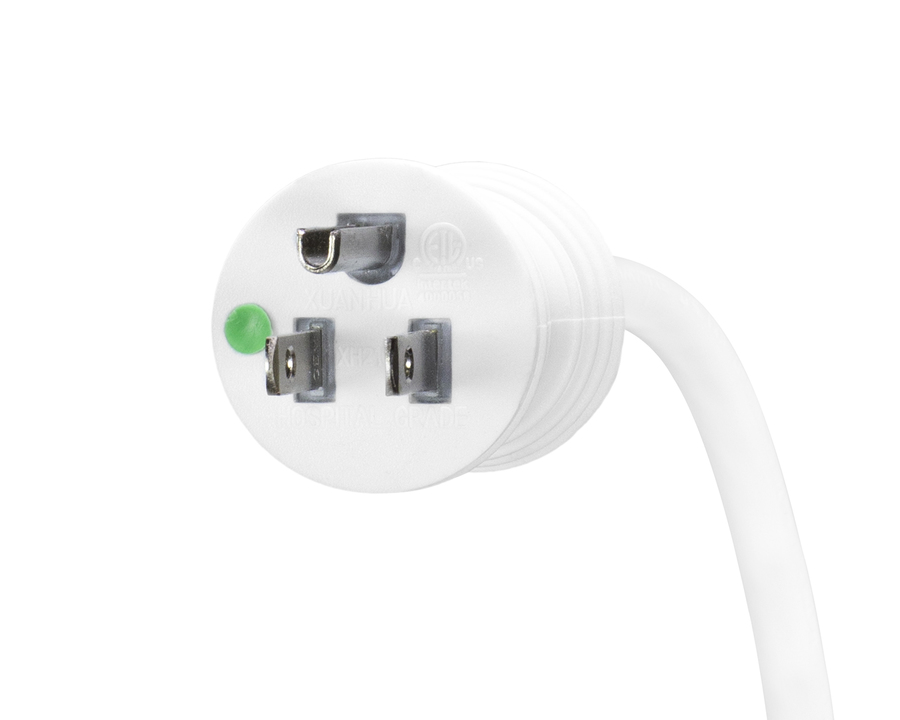

Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety

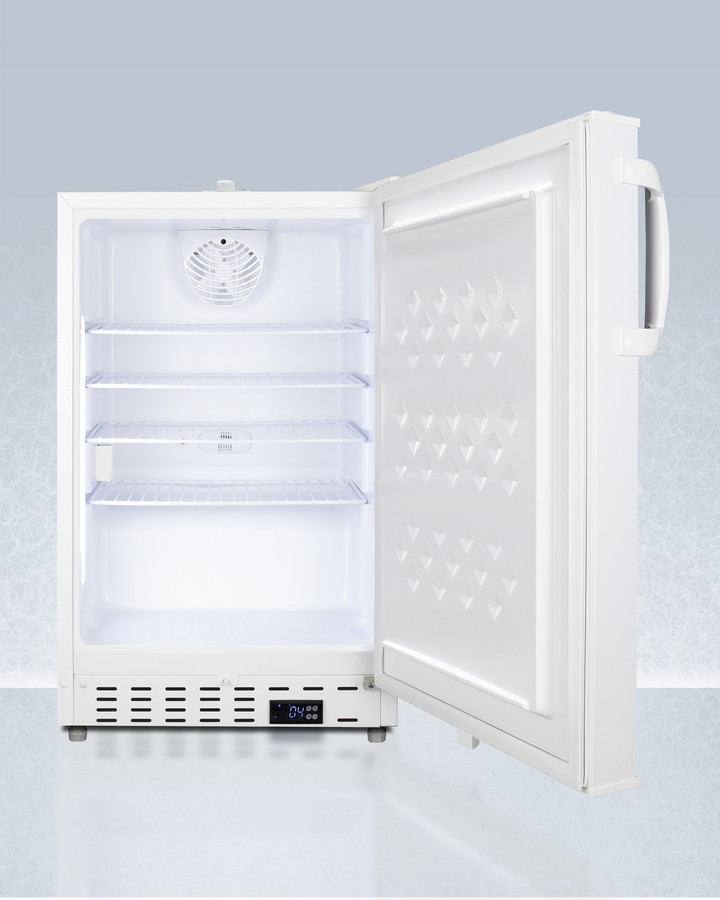

Adjustable wire shelves
Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
Right-hand door swing
Unit has a right-hand door swing (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)
Sealed back
Space-saving design that offers easier cleanability
Automatic defrost
Reduced user maintenance with an auto defrost system
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Interior light
Front-located LED light ensures entire interior is lit when door opens
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Fully finished white cabinet
Allows the unit to be freestanding
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview Refrigerator Features Dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 3.32 cu.ft. (94 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 59.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079042 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Sound Level | 2°C to 8°C |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
