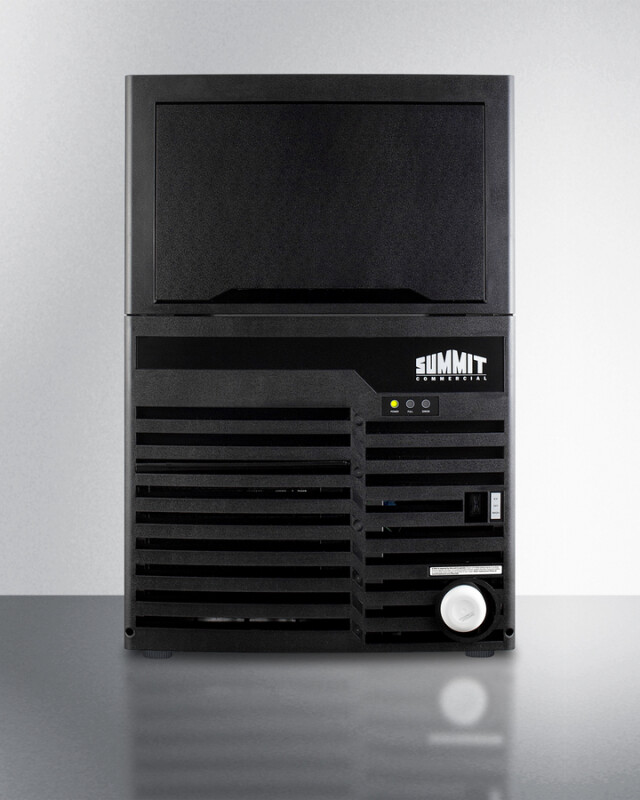

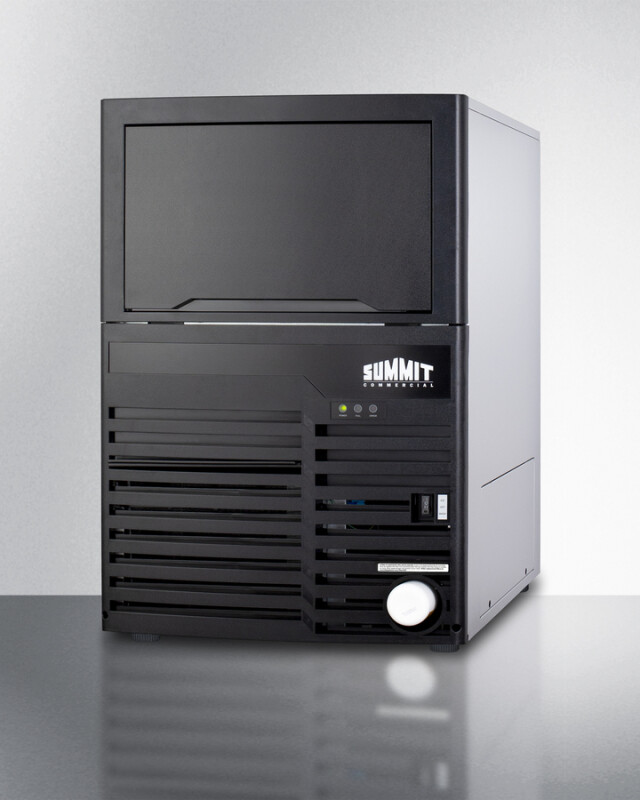

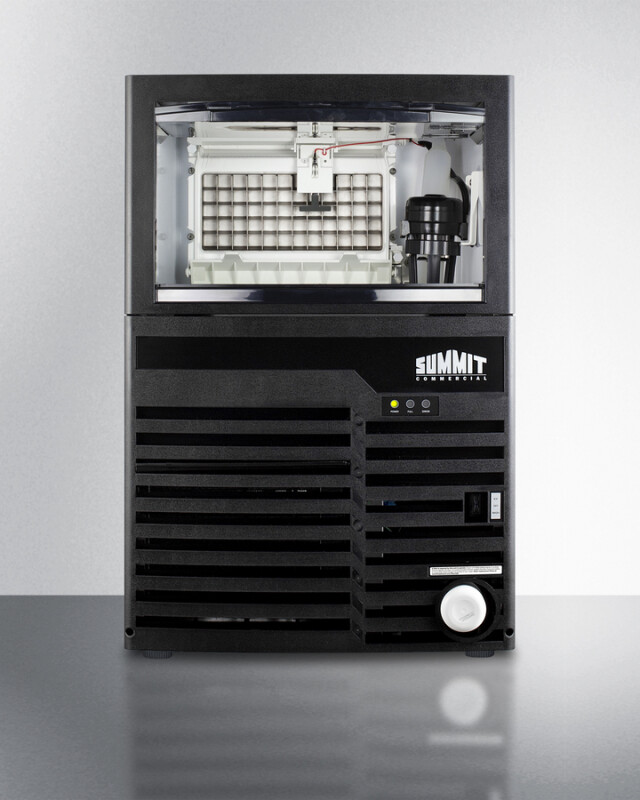

100 lb. Commercial Icemaker, ADA Compliant - BIM100ADA
100 lb. Commercial Icemaker, ADA Compliant
Model: BIM100ADA














100 lb. Commercial Icemaker, ADA Compliant
Model: BIM100ADA
Key Features
ADA compatible height
Quiet operation
Large production capacity
Easy cleaning
Built-in capable
Clear ice production
Water purification filter
Sliding door
Description
Available from Drimmers Appliances, serving customers throughout Florida.
Features
ADA compatible height
Includes a set of 1 1/2" high leveling legs to bring the overall height up to 31 1/2", ideal for fitting under lower counters following ADA guidelines
Quiet operation
Efficient, low noise fan for a quiet performance
Large production capacity
Produces up to 100 lbs. of clear ice in a day cycle
Easy cleaning
Included leg set allows you to clean the space below the icemaker
Built-in capable
Front-breathing design allows this unit to be installed under counters
Clear ice production

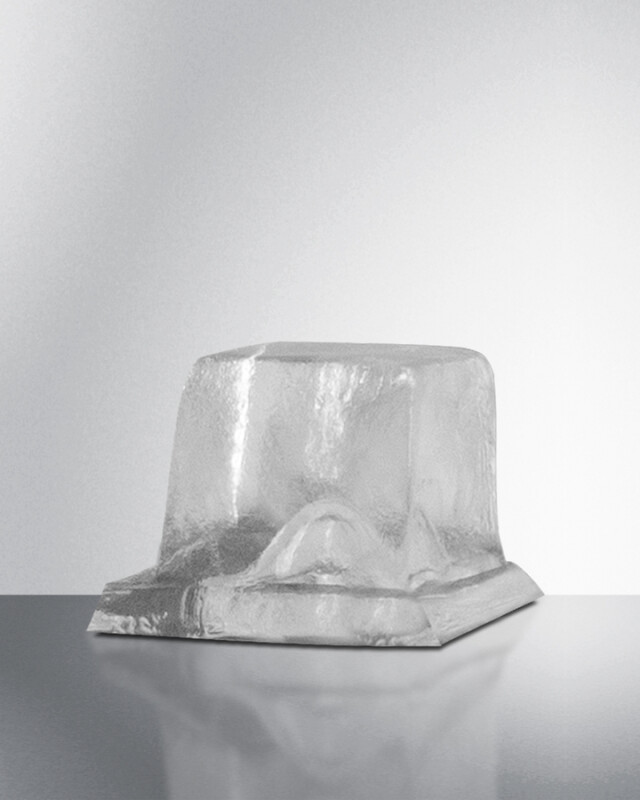

Produces clear 1" x 1" dice cubes

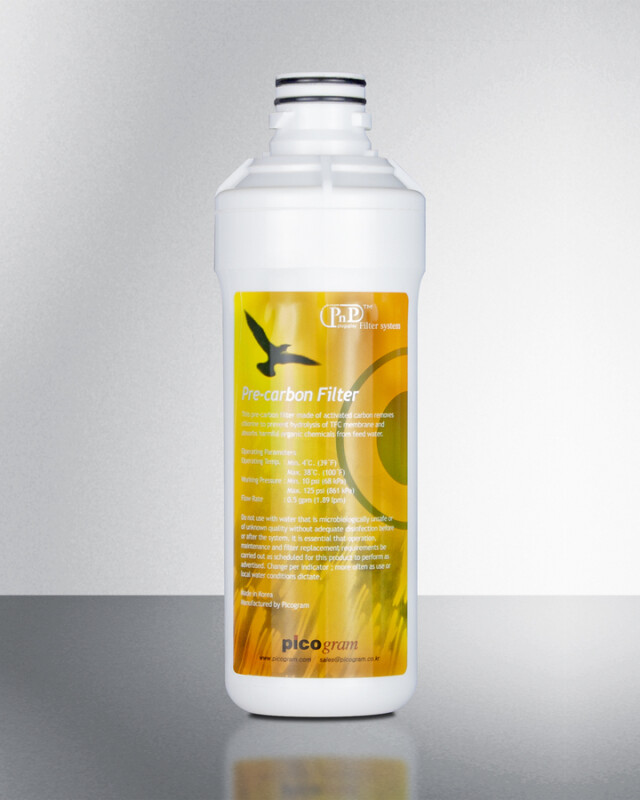

Water purification filter
Helps maintain great tasting ice. A purification filter is required for operation (1 is included with your initial purchase); To order replacement filters, visit summitappliance.com/filter100
Sliding door
Top lid is on lift-up glides for easy access to the ice bin
Ice full sensor
Automatic sensor alerts when bin is full and stops ice production to prevent overfill
Air filter
Removable mesh filter located in the front of the icemaker makes it easy to keep the condenser clean
Wash function
Auto clean mode allows you to periodically clean the system as needed with a neutral detergent

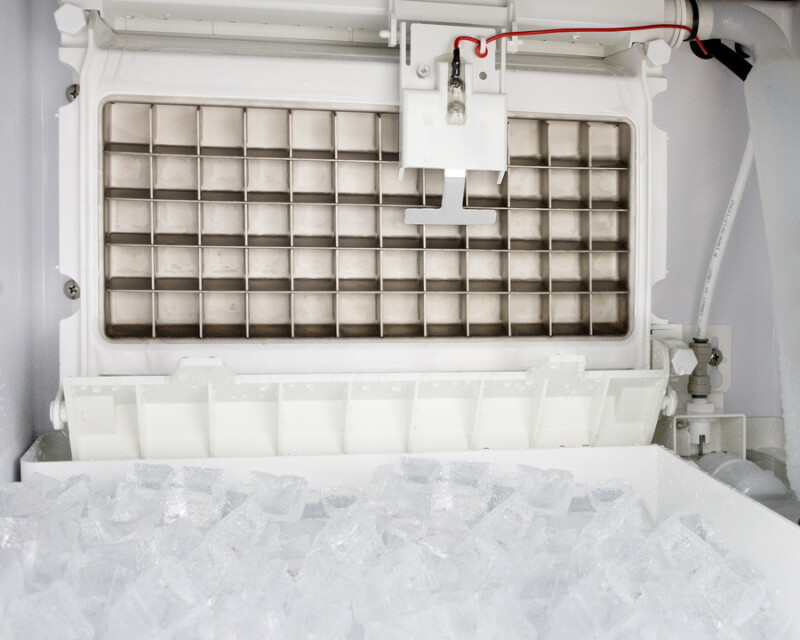

Generous storage
Interior holds up to 27 lbs. of ice
Ice scoop
Ice scoop included for added convenience
Sealed back
Space-saving design with easier cleanability
Fully finished stainless steel cabinet
Durable finish allows the unit to be used freestanding
7.5" long power cord
Extra long pre-installed power cord allows more flexibility in placing the unit

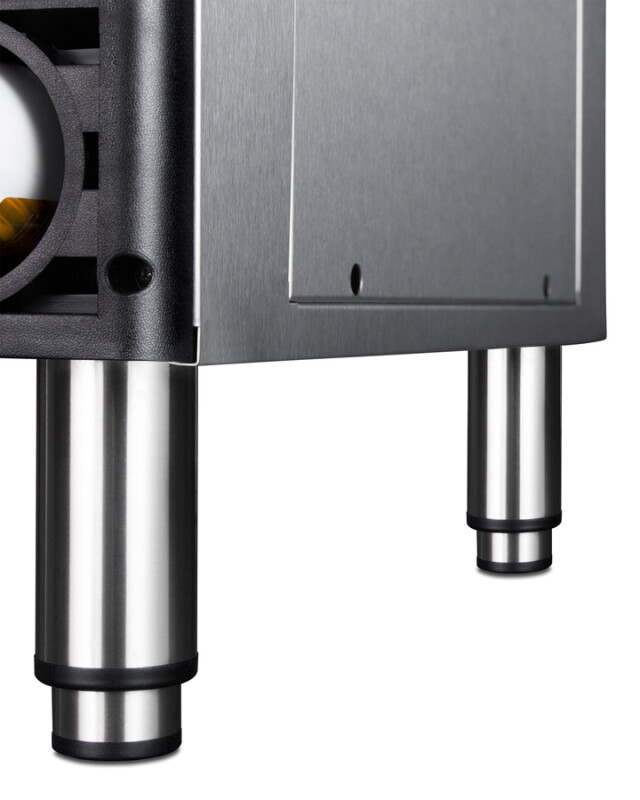

Extra leveling legs

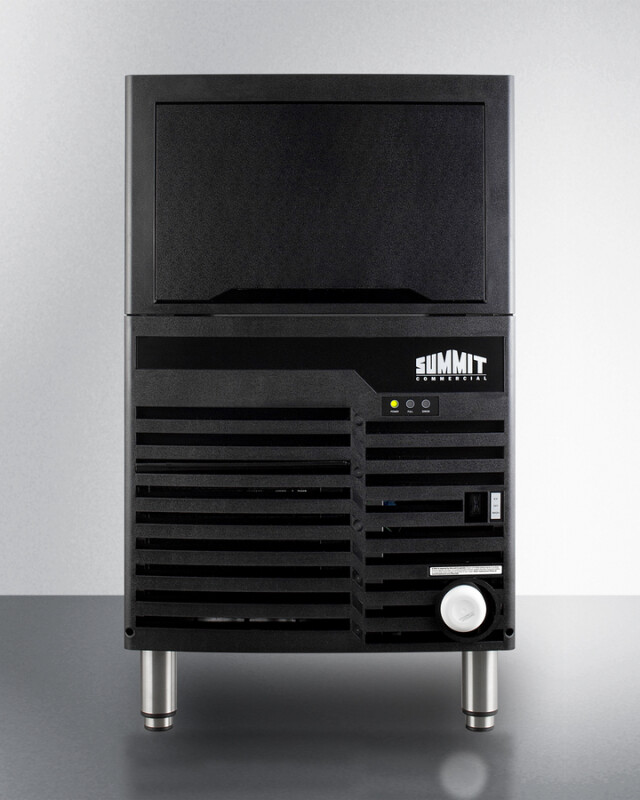

We include a set of 4 1/2" high legs for optional use to raise the height up to 34 1/2"
Requires professional installation
Gravity drain system
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Commercially approved
ETL-S listed to NSF-12 commercial standards
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 20.5 in. |
| Height | 31.5 in. |
| Length | 22.25 in. |
| Weight | 110 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.31 ft³ |
| Dimensional Weight | 103.37 lbs. |
| Total of Cubes | 8.31 ft³ |
| Total of Dimensional Weight | 103.37 lbs. |
Overview Icemaker
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.5" (80 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.5" (52 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.25" (57 cm) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 3.75 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101075709 |
| Door Swing | Lift-Up |
| Height Adjustable | Yes |
| Drain Required | Yes |
| Daily Ice Production | 100.0 lbs. (45 kg) |
| Ice Storage Capacity | 27.0 lbs. (12 kg) |
| Ice Shape | Cube |
| Size of Cube | 1" x 1" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 8.5 oz. |
| High Side PSI | 190.0 |
| Low Side PSI | 133.0 |
| Interior Height | 10.25" (26 cm) |
| Interior Width | 18.0" (46 cm) |
| Interior Depth | 17.0" (43 cm) |
| Level Legs | 4 |
