$2,480.00
24" Wide Built-In All-Refrigerator, ADA Compliant - ASDS2413KSHH
$2,480.00
Color : Black Stainless Steel
Key Features
24" wide all-refrigerator
Less than 18" deep
ADA compliant design
Adjustable height
Built-in capable
Stainless steel interior
Black stainless steel wrapped door
Professional handle
Description
Available from Drimmers Appliances, serving customers throughout Florida.
Features
24" wide all-refrigerator
3.1 cu.ft. interior for residential or commercial cold storage
Less than 18" deep
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Adjustable height
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup

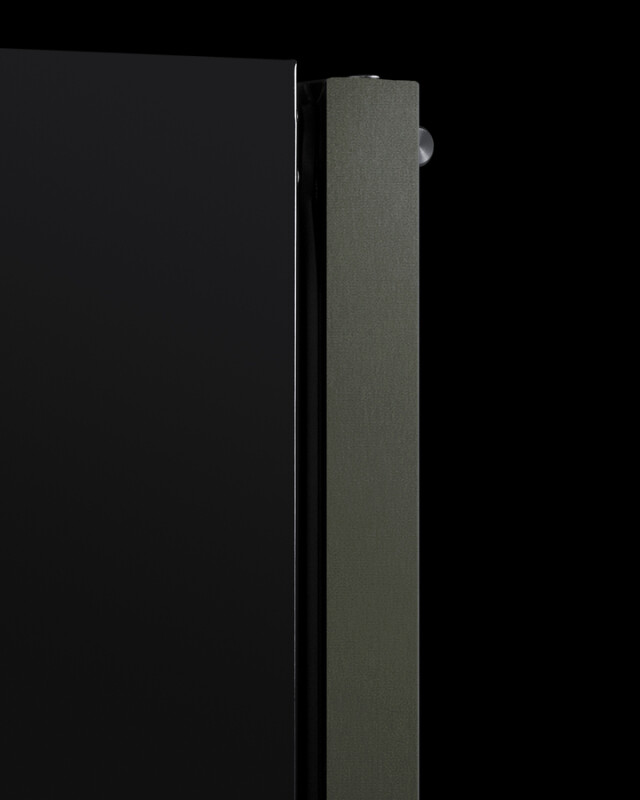

Black stainless steel wrapped door
304 grade stainless steel painted black with a slight gloss finish
Professional handle
Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Frost-free operation
No-frost operation for minimum user maintenance
Internal fan
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Digital thermostat
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Dimmable LED lighting
Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

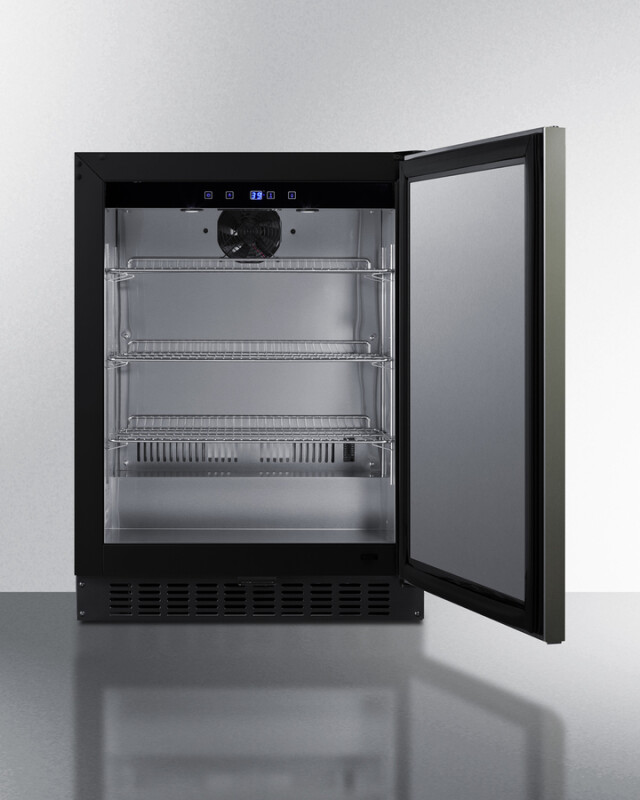

Cantilevered shelving
Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Integrated hinge
Flat hinge ensures no added height is needed when installing under a counter
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Reversible door
User-reversible door swing for added flexibility
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Certifications
ADA Compliant

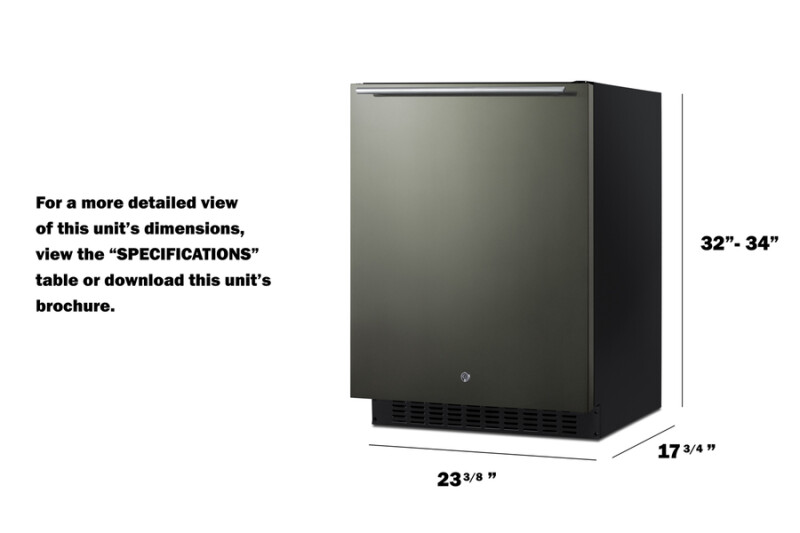

Specifications
Overview
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.5" (50 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Black Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 215.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 89.0 lbs. (40 kg) |
| Shipping Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088839 |
Refrigerator Features
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
Dimensions
| Interior Height | 24.25" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.25" (11 cm) |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 23.38 in. |
| Height | 32 in. |
| Length | 17.75 in. |
| Weight | 89 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.38 in. |
| Shipping Height | 37 in. |
| Shipping Length | 22.75 in. |
| Shipping Weight | 110 lbs. |
| Total of Shipping Weight | 110 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.69 ft³ |
| Dimensional Weight | 95.54 lbs. |
| Total of Cubes | 7.69 ft³ |
| Total of Dimensional Weight | 95.54 lbs. |
Overview Refrigerator Features Dimensions
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.5" (50 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Black Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 215.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 89.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088839 |
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 32.9 dB |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.25" (11 cm) |
