21" Wide Built-In All-Refrigerator, ADA Compliant - ALR46WCSSHV

This product has been discontinued by the manufacture and is no longer available.

21" Wide Built-In All-Refrigerator, ADA Compliant

Model: ALR46WCSSHV

20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV
20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV
+1more

Color : Stainless Steel

20" Wide Built-In All-Refrigerator, ADA Compliant ALR46WCSSHV
Stainless Steel

Depth : Standard Depth

Key Features

  • ADA compliant design

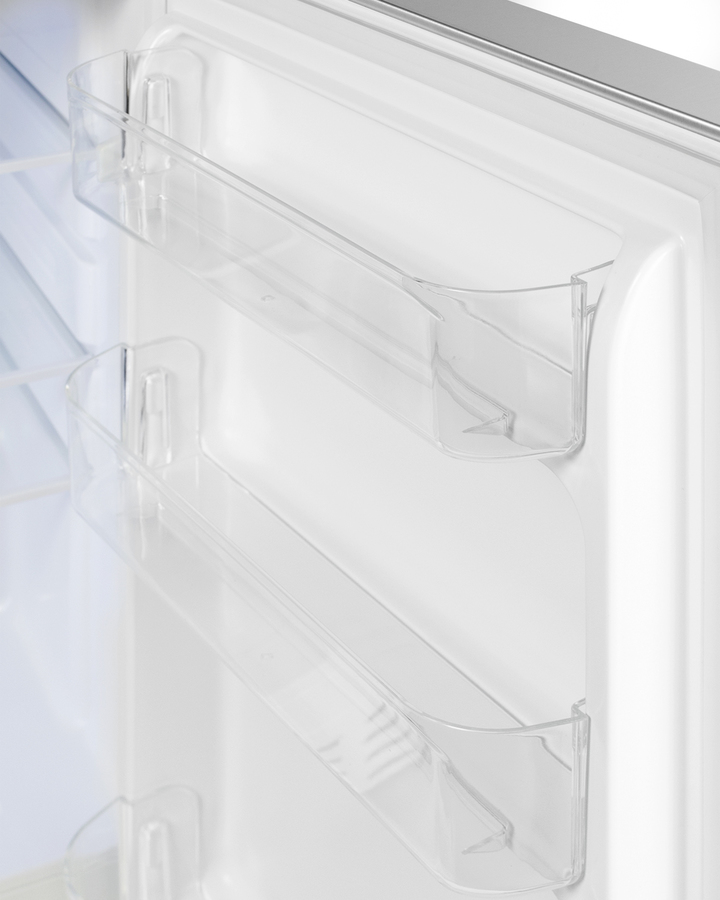

  • Door shelves

  • Adjustable glass shelves

  • Built-in capable

  • Fruit and vegetable crisper

  • Adjustable thermostat

  • Open door alarm

  • 3" thick door

Read More

Description

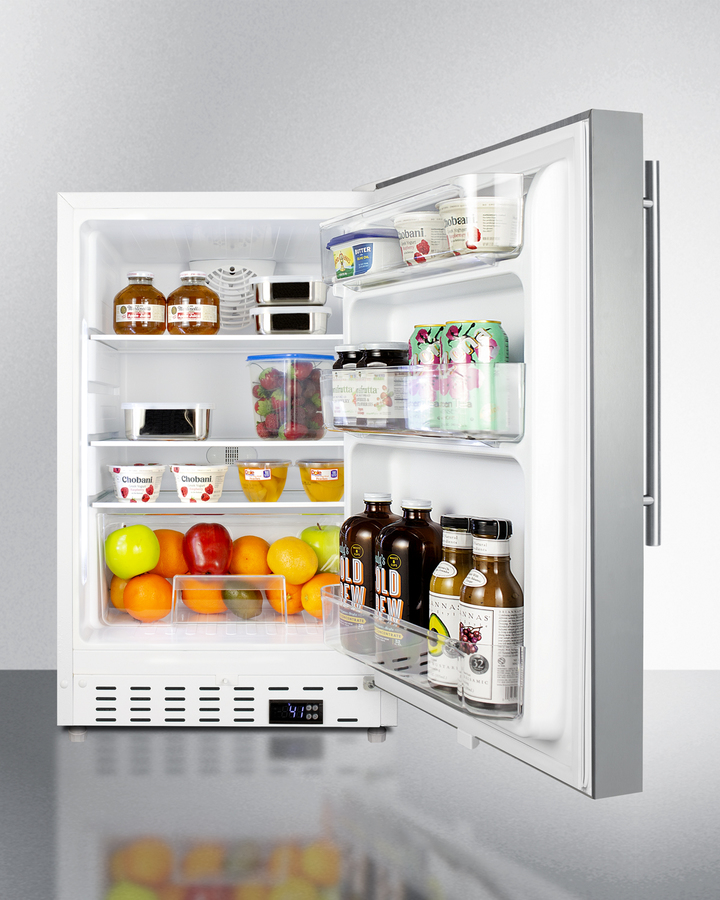

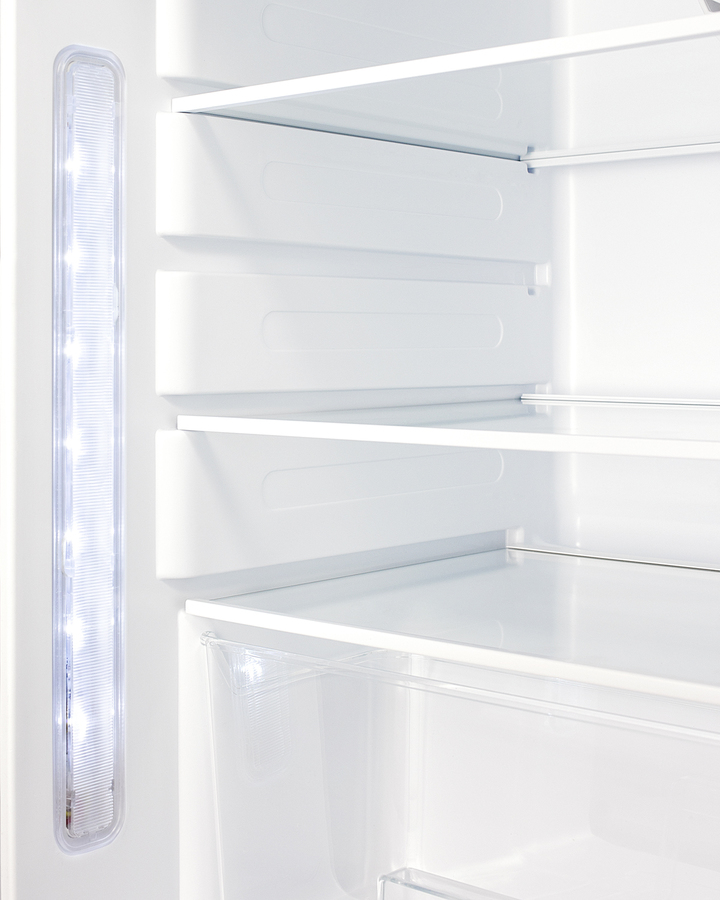

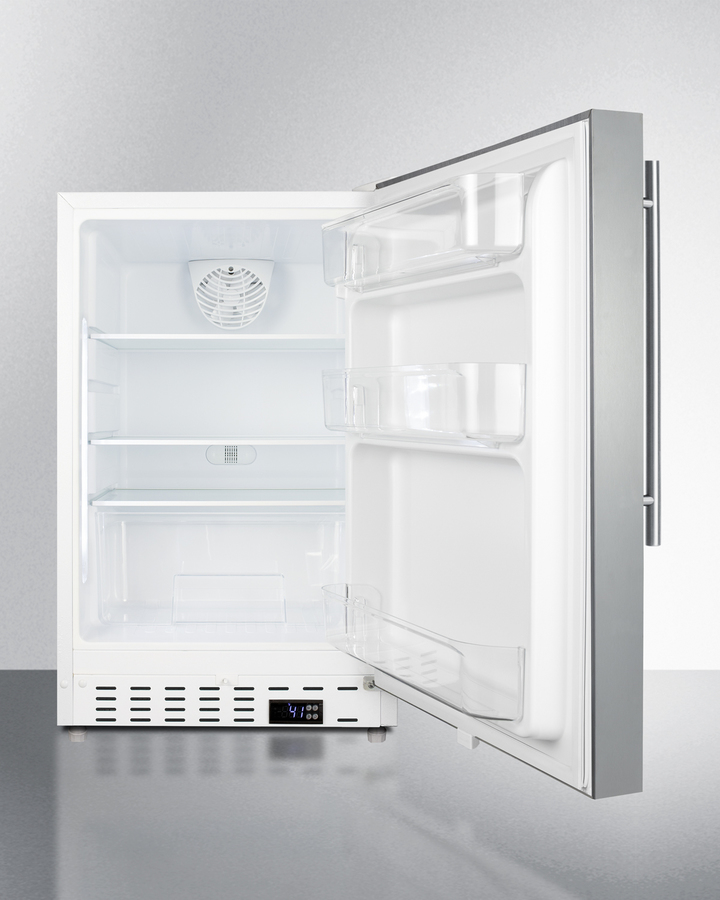

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALR46WCSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible, stainless steel, door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALR46WCSSHV features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALR46WCSSHV is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36CSSHV all-freezer. Additional choices with a white exterior and panel-ready styles are available.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

ADA compliant design

Door shelves

Adjustable glass shelves

Built-in capable

Fruit and vegetable crisper

Adjustable thermostat

Open door alarm

3" thick door

Sealed back

Reversible stainless steel door

Temperature alarms

Automatic defrost

Right-angle plug

Professional handle

Interior light

Matching all-freezer

Fully finished stainless steel cabinet

100% CFC free

Specifications

Warranty

Parts1 Year
Labor1 Year

Overview Refrigerator Features Dimensions

Nominal Height32.0" (81 cm)
Height of Cabinet31.75" (81 cm)
Height to Hinge Cap32.0" (81 cm)
Nominal Width21.0" (53 cm)
Width20.88" (53 cm)
Nominal Depth23.0" (58 cm)
Depth22.5" (57 cm)
Depth with Handle24.0" (61 cm)
Depth with door at 90°40.25" (102 cm)
Capacity3.53 cu.ft. (100 L)
Defrost TypeAutomatic
DoorStainless Steel
CabinetStainless Steel
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Energy Usage/Year251.0kWh/year
Amps1.1
Voltage/Frequency115 V AC/60 Hz
Weight105.0 lbs. (48 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101076843
Door SwingRHD
ReversibleYes
Crisper Qty1
Crisper FinishTransparent
Crisper CoverGlass
Shelf TypeGlass
Shelf Qty3
Full Door Shelf Qty3
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount0.99oz.
High Side PSI180.0
Low Side PSI80.0
Level Legs Qty2
Wheel Qty2
Interior LightYes
Temperature Range35 to 46°F
Sound Level33.2 dB
Interior Height23.5" (60 cm)
Interior Width16.25" (41 cm)
Interior Depth17.0" (43 cm)
Compressor Step Height6.25" (16 cm)
Compressor Step Width16.25" (41 cm)
Compressor Step Depth6.0" (15 cm)
