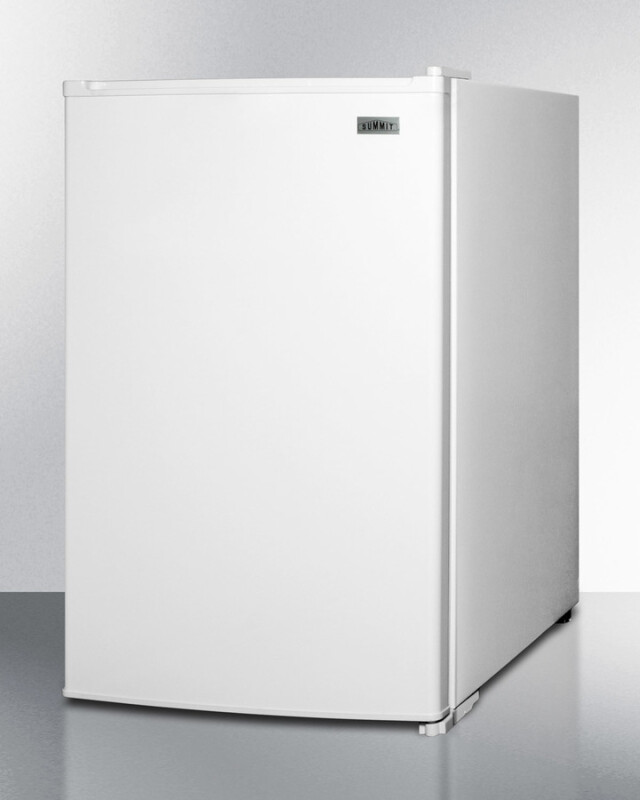

22" Wide All-Freezer - FS605
22" Wide All-Freezer
Model: FS605
22" Wide All-Freezer
Model: FS605
Color : White
Key Features
Upright all-freezer
Full 5 cu.ft. capacity
Slim counter height dimensions
Manual defrost
Fixed wire shelves
Door shelves
Dial thermostat
Quiet operation
Description
Available from Drimmers Appliances, serving customers throughout Florida.
Features
Upright all-freezer
Made in North America and designed for residential applications
Full 5 cu.ft. capacity
Generously sized interior offers more storage space than any freezer in this size class
Slim counter height dimensions
Just 22 inches wide for easy placement in any small location, including laundry rooms, offices, second kitchens, & more
Manual defrost
Static cooling system for efficiency and improved performance

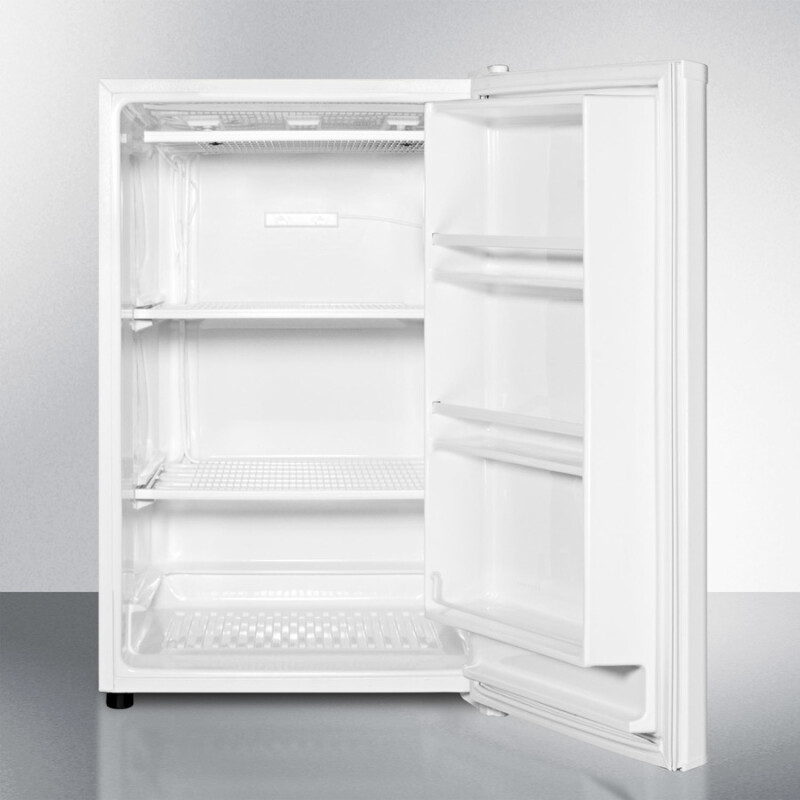

Fixed wire shelves
Two interior shelves with built-in cooling coils to ensure proper cold storage for your items
Door shelves
Three racks for added storage options
Dial thermostat
Simple and intuitive analog controls located inside for easy temperature management
Quiet operation
Runs at under 33 dB for a quiet performance in any setting
Fully finished white cabinet
Allows the unit to be used freestanding
Leveling legs
Front adjustable feet let you ensure a clean fit on uneven surfaces
Right hand door swing
Note: this door is not reversible
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.13" (84 cm) |
| Height to Hinge Cap | 33.63" (85 cm) |
| Nominal Width | 22.0" (56 cm) |
| Width | 21.38" (54 cm) |
| Nominal Depth | 26.0" (66 cm) |
| Depth | 25.75" (65 cm) |
| Depth with door at 90° | 44.5" (113 cm) |
| Capacity | 5.04 cu.ft. (143 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Energy Usage/Year | 301.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 90.0 lbs. (41 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101085975 |
Freezer
| Door Swing | RHD |
| Reversible | No |
| Interior Height | 29.5" (75 cm) |
| Interior Width | 18.63" (47 cm) |
| Interior Depth | 19.0" (48 cm) |
| Shelf Type | Wire |
| Shelf Qty | 2 |
| Full Door Shelves | 3 |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.94 oz. |
| Compressor Step Height | 7.5" (19 cm) |
| Compressor Step Width | 18.63" (47 cm) |
| Compressor Step Depth | 4.0" (10 cm) |
| Sound Level | 32.8 dB |
Dimensions & Weight
| Width | 21.38 in. |
| Height | 33.13 in. |
| Length | 25.75 in. |
| Weight | 90 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 26.38 in. |
| Shipping Height | 38.13 in. |
| Shipping Length | 30.75 in. |
| Shipping Weight | 130 lbs. |
| Total of Shipping Weight | 130 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.56 ft³ |
| Dimensional Weight | 131.22 lbs. |
| Total of Cubes | 10.56 ft³ |
| Total of Dimensional Weight | 131.22 lbs. |
Overview Freezer
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.13" (84 cm) |
| Height to Hinge Cap | 33.63" (85 cm) |
| Nominal Width | 22.0" (56 cm) |
| Width | 21.38" (54 cm) |
| Nominal Depth | 26.0" (66 cm) |
| Depth | 25.75" (65 cm) |
| Depth with door at 90° | 44.5" (113 cm) |
| Capacity | 5.04 cu.ft. (143 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Energy Usage/Year | 301.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 90.0 lbs. (41 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101085975 |
| Door Swing | RHD |
| Reversible | No |
| Interior Height | 29.5" (75 cm) |
| Interior Width | 18.63" (47 cm) |
| Interior Depth | 19.0" (48 cm) |
| Shelf Type | Wire |
| Shelf Qty | 2 |
| Full Door Shelves | 3 |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.94 oz. |
| Compressor Step Height | 7.5" (19 cm) |
| Compressor Step Width | 18.63" (47 cm) |
| Compressor Step Depth | 4.0" (10 cm) |
| Sound Level | 32.8 dB |
