22" Wide All-Freezer - FS603

SummitSummit brand logo

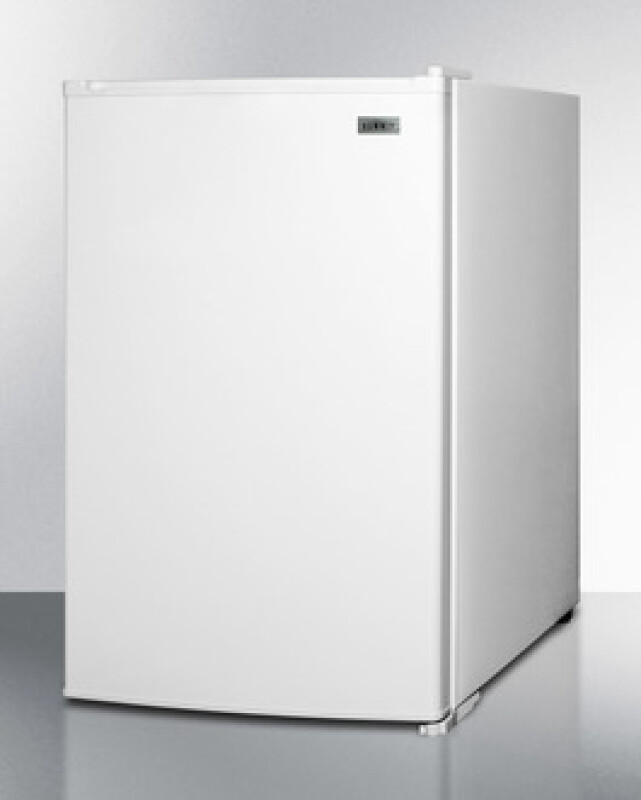

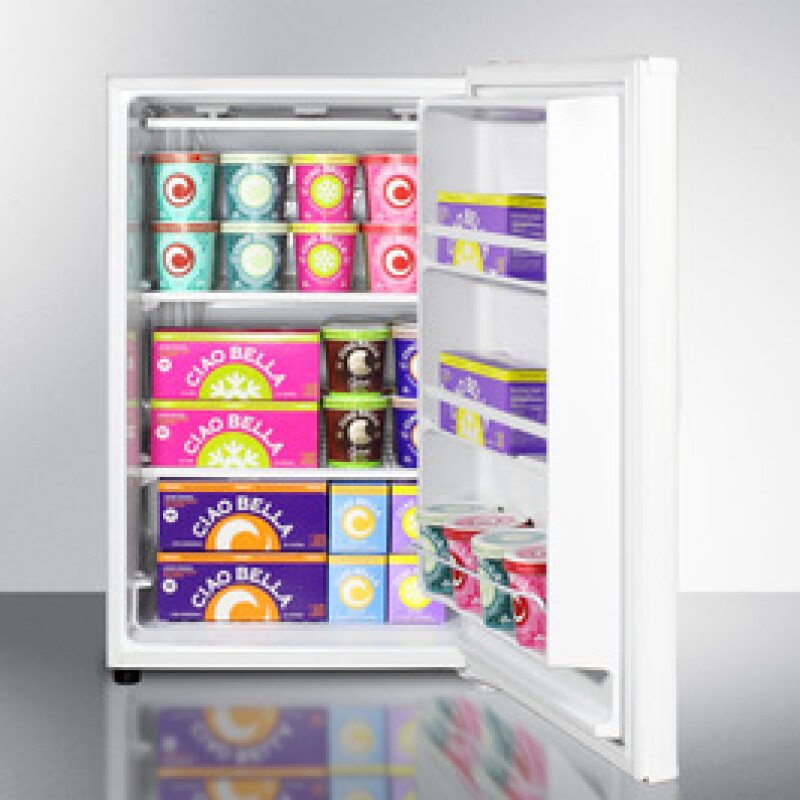

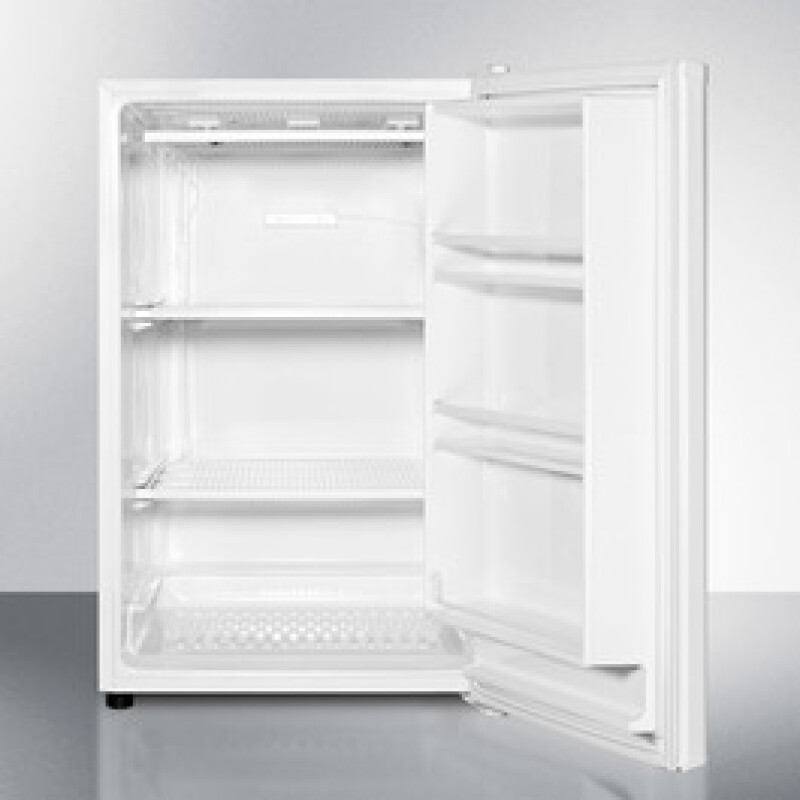

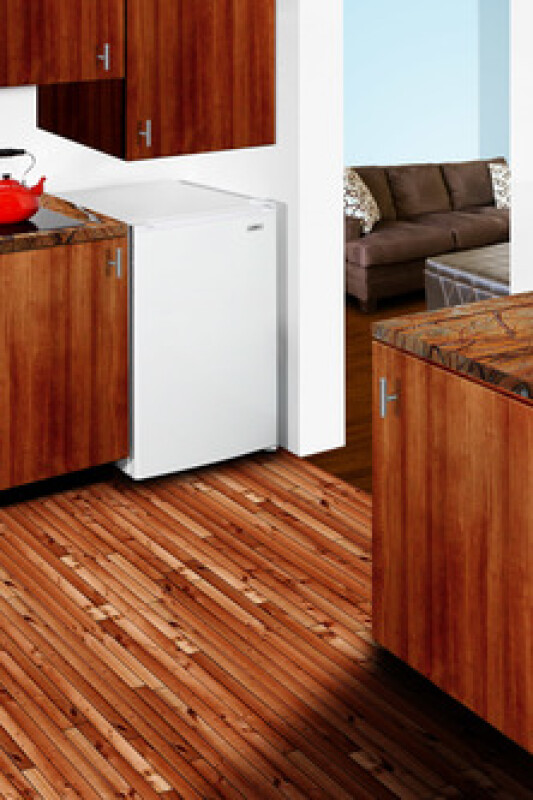

22" Wide All-Freezer

Model: FS603

22" Wide All-Freezer FS60322" Wide All-Freezer FS60322" Wide All-Freezer FS60322" Wide All-Freezer FS60322" Wide All-Freezer FS603
22" Wide All-Freezer FS603
22" Wide All-Freezer FS603
22" Wide All-Freezer FS603
22" Wide All-Freezer FS603
22" Wide All-Freezer FS603

Color : Other

22" Wide All-Freezer FS603
Other

Key Features

  • Slim counter height dimensions

  • Manual defrost

  • Open shelves

  • Door shelves

  • Fully finished white cabinet

  • 100% CFC free

  • Adjustable thermostat

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

Slim counter height dimensions

Just 22 inches wide for easy placement in any small location

Manual defrost

No temperature fluctuations with a manual defrost system that keeps the cold inside

Open shelves

Fixed shelves accommodate large items

Door shelves

Three racks for added storage options

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Adjustable thermostat

Manage the interior temperature with ease and accuracy

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width21.38 in.
Height33.13 in.
Length25.75 in.
Weight90 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.56 ft³
Dimensional Weight131.22 lbs.
Total of Cubes10.56 ft³
Total of Dimensional Weight131.22 lbs.

Overview Freezer

Height of Cabinet33.13" (84 cm)
Height to Hinge Cap33.63" (85 cm)
Width21.38" (54 cm)
Depth25.75" (65 cm)
Depth with door at 90°44.5" (113 cm)
Capacity5.0 cu.ft. (142 L)
Defrost TypeManual
DoorWhite
CabinetWhite
US Electrical SafetyUL
Canadian Electrical SafetyULC
Energy Usage/Year301.0kWh/year
Amps1.1
Weight90.0 lbs. (41 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101038322
Door SwingRHD
ReversibleNo
Interior Height29.5" (75 cm)
Interior Width18.63" (47 cm)
Interior Depth19.0" (48 cm)
Shelf TypeWire
Shelf Qty2
Full Door Shelves3
Thermostat TypeDial
Refrigerant TypeR134a
Refrigerant Amount2.5 oz.
High Side PSI235.0
Low Side PSI130.0
Compressor Step Height7.5" (19 cm)
Compressor Step Width18.63" (47 cm)
Compressor Step Depth4.0" (10 cm)
