17 Cu.Ft. Dipping Cabinet - NOVA53PDC

This product has been discontinued by the manufacture and is no longer available.

17 Cu.Ft. Dipping Cabinet

Model: NOVA53PDC

17 Cu.Ft. Dipping Cabinet NOVA53PDC17 Cu.Ft. Dipping Cabinet NOVA53PDC17 Cu.Ft. Dipping Cabinet NOVA53PDC17 Cu.Ft. Dipping Cabinet NOVA53PDC17 Cu.Ft. Dipping Cabinet NOVA53PDC
17 Cu.Ft. Dipping Cabinet NOVA53PDC
17 Cu.Ft. Dipping Cabinet NOVA53PDC
17 Cu.Ft. Dipping Cabinet NOVA53PDC
17 Cu.Ft. Dipping Cabinet NOVA53PDC
17 Cu.Ft. Dipping Cabinet NOVA53PDC

Color : White

17 Cu.Ft. Dipping Cabinet NOVA53PDC
White

Key Features

  • Digital thermostat

  • Commercially listed

  • Sneezeguard

  • Wide temperature range

  • Strong insulation

  • Ice cream tub holders

  • Casters

  • Sliding glass lid

Read More

Description

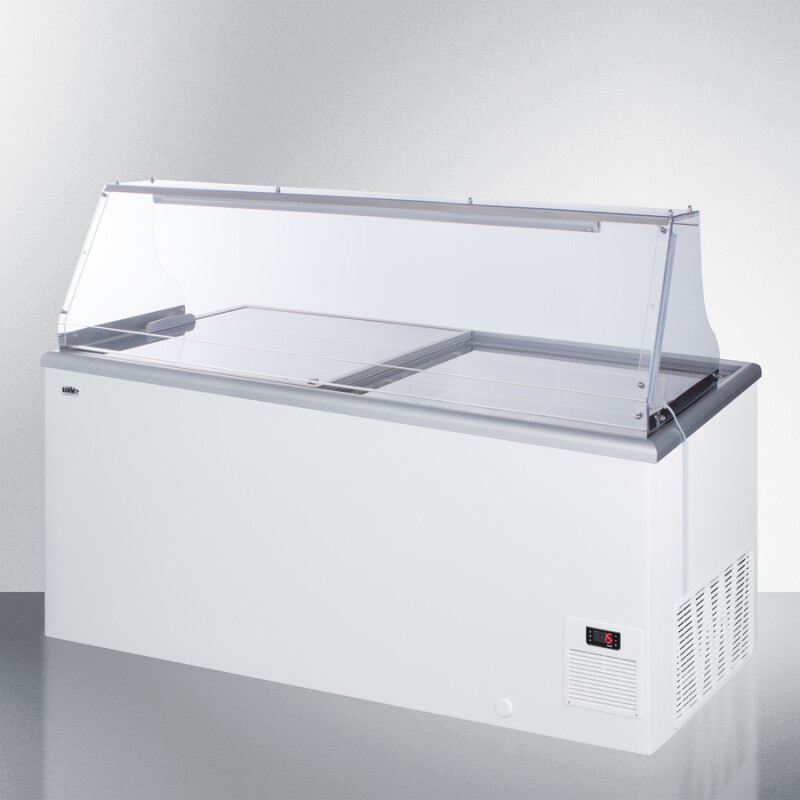

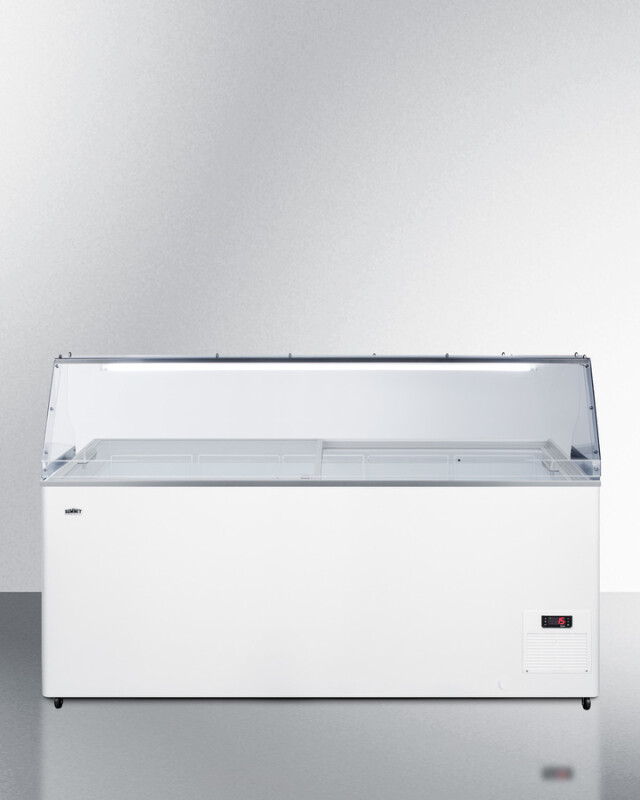

Summit Commercial offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving. Made for us by Elcold in Denmark, the NOVA53PDC is a 61" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF. Inside, the NOVA53 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA53PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

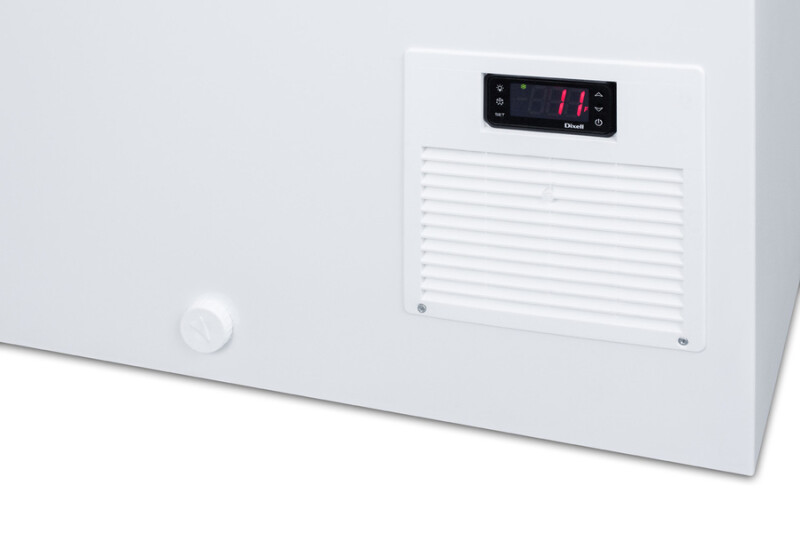

Digital thermostat

Electronic controls for precise temperature management

Commercially listed

UL-S listed to NSF-7 Standards for use in commercial establishments

Sneezeguard

Durable polycarbonate sneezeguard is pre-installed

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

Strong insulation

3" thick insulation helps to ensure items stay cold

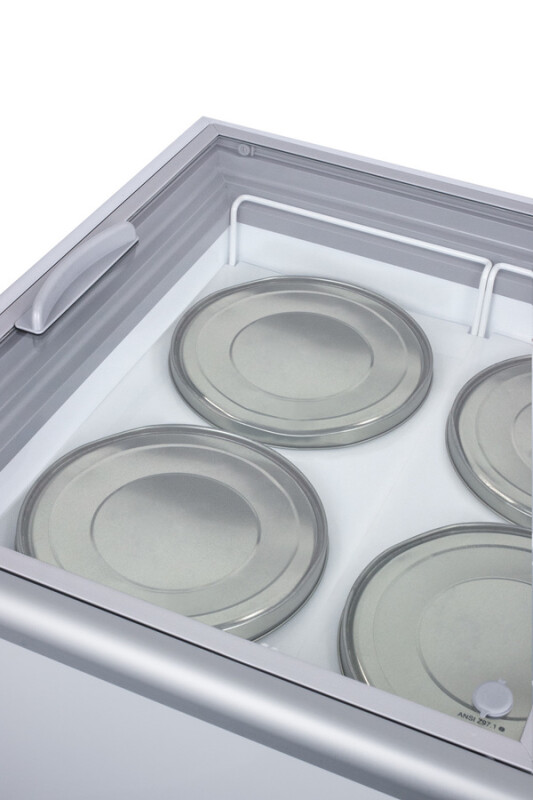

Ice cream tub holders

Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Holds 18 standard 3 gallon tubs

Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets

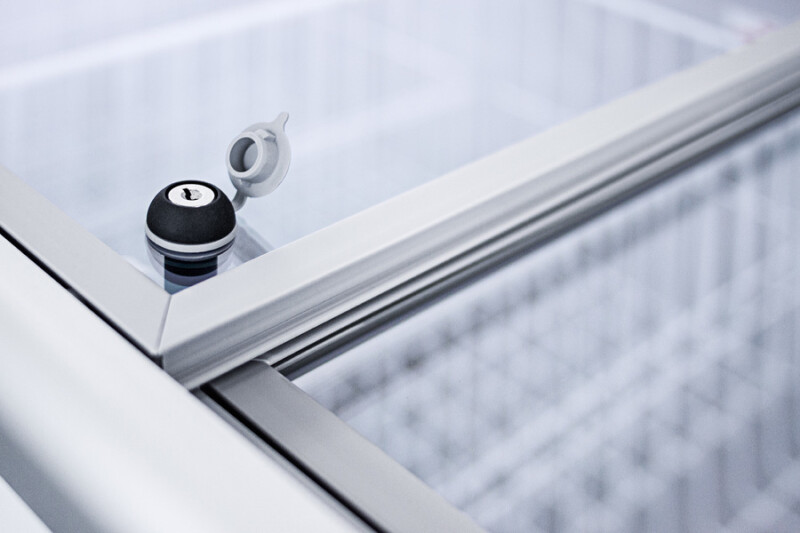

Removable lock

A keyed lock is included for optional use

Manual defrost

Static cooling system for improved temperature stability

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Steel interior

Durable construction in a white finish for easy visibility

Light

Sneezeguard light for added visibility

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width60.75 in.
Height45.5 in.
Length27.25 in.
Weight190 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement43.59 ft³
Dimensional Weight541.89 lbs.
Total of Cubes43.59 ft³
Total of Dimensional Weight541.89 lbs.

Overview Freezer

Nominal Height46.0" (117 cm)
Height of Cabinet45.5" (116 cm)
Nominal Width61.0" (155 cm)
Width60.75" (154 cm)
Nominal Depth28.0" (71 cm)
Depth27.25" (69 cm)
Capacity17.8 cu.ft. (504 L)
Defrost TypeManual
DoorGlass
CabinetWhite
US Electrical SafetyUL
Canadian Electrical SafetyULC
SanitationUL-S
Amps4.2
Voltage/Frequency115 V AC/60 Hz
Weight190.0 lbs. (86 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101060187
Door SwingSliding
Interior Height26.0" (66 cm)
Interior Width54.5" (138 cm)
Interior Depth21.0" (53 cm)
Thermostat TypeDigital
Refrigerant TypeR290
Refrigerant Amount3.17 oz.
High Side PSI345.0
Low Side PSI140.0
Wheels4
Compressor Step Height9.75" (25 cm)
Compressor Step Width7.88" (20 cm)
Compressor Step Depth21.0" (53 cm)
Temperature Range-13 to 23ºF
