20" Wide Built-In All-Freezer, ADA Compliant - ALFZ36

This product has been discontinued by the manufacture and is no longer available.

20" Wide Built-In All-Freezer, ADA Compliant

Model: ALFZ36

20" Wide Built-In All-Freezer, ADA Compliant ALFZ3620" Wide Built-In All-Freezer, ADA Compliant ALFZ3620" Wide Built-In All-Freezer, ADA Compliant ALFZ3620" Wide Built-In All-Freezer, ADA Compliant ALFZ3620" Wide Built-In All-Freezer, ADA Compliant ALFZ3620" Wide Built-In All-Freezer, ADA Compliant ALFZ36
20" Wide Built-In All-Freezer, ADA Compliant ALFZ36
20" Wide Built-In All-Freezer, ADA Compliant ALFZ36
20" Wide Built-In All-Freezer, ADA Compliant ALFZ36
20" Wide Built-In All-Freezer, ADA Compliant ALFZ36
20" Wide Built-In All-Freezer, ADA Compliant ALFZ36
+1more

Color : White

20" Wide Built-In All-Freezer, ADA Compliant ALFZ36
White

Key Features

  • ADA compliant design

  • Built-in capable

  • Adjustable thermostat

  • 3" thick door

  • Temperature alarms

  • Door shelves

  • Adjustable shelves

  • Reversible door

Read More

Description

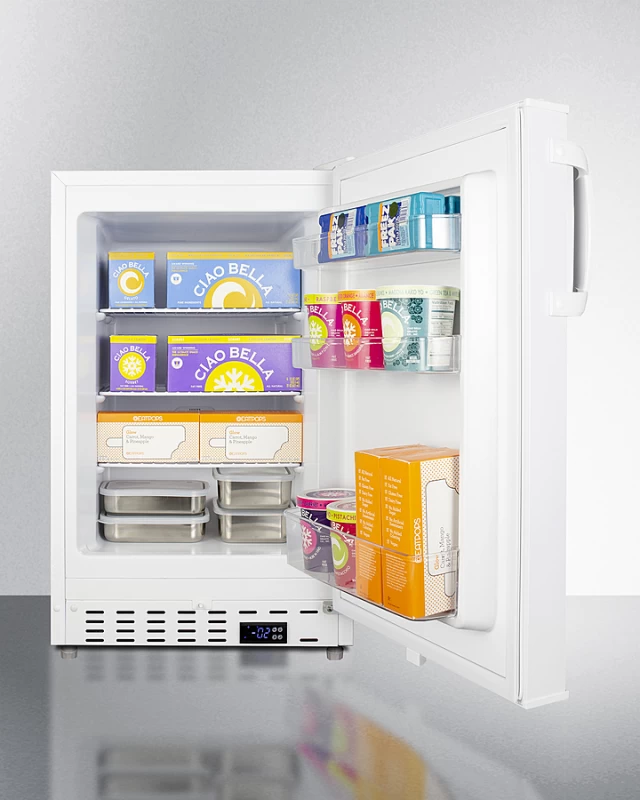

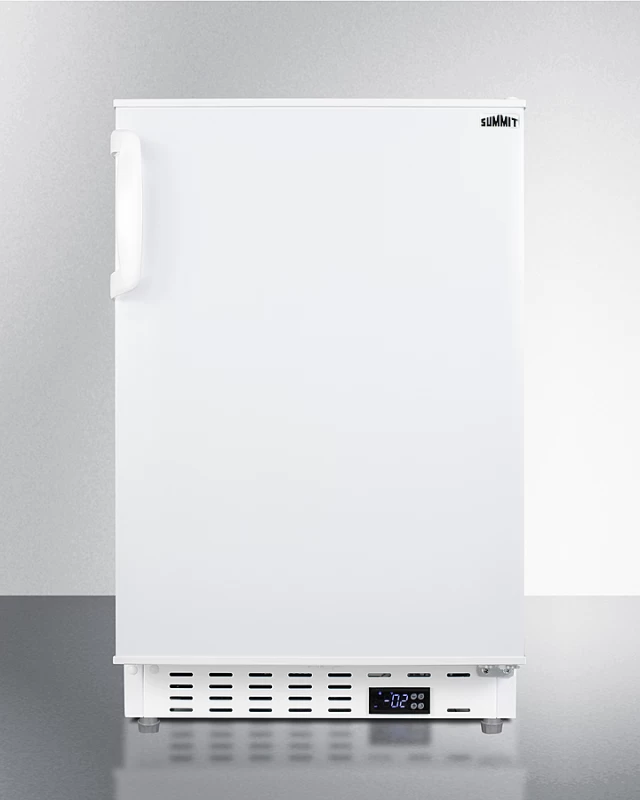

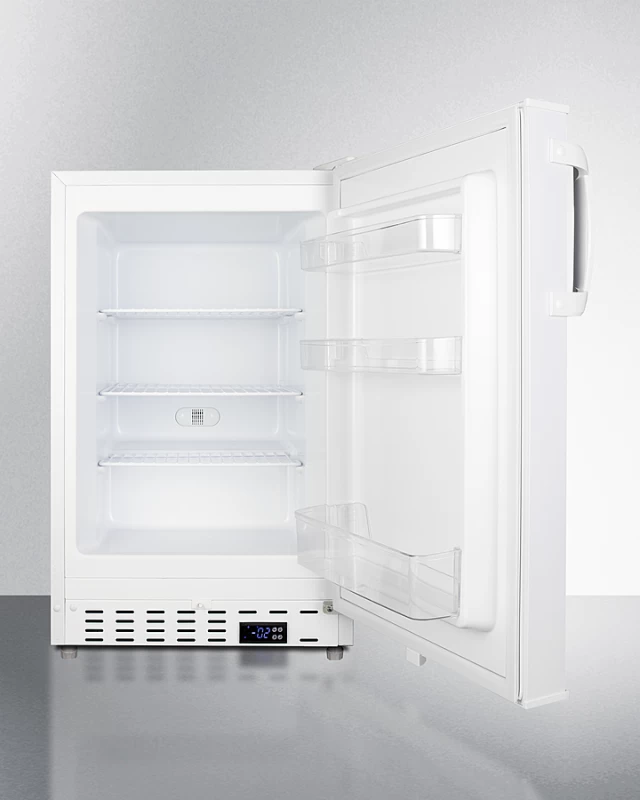

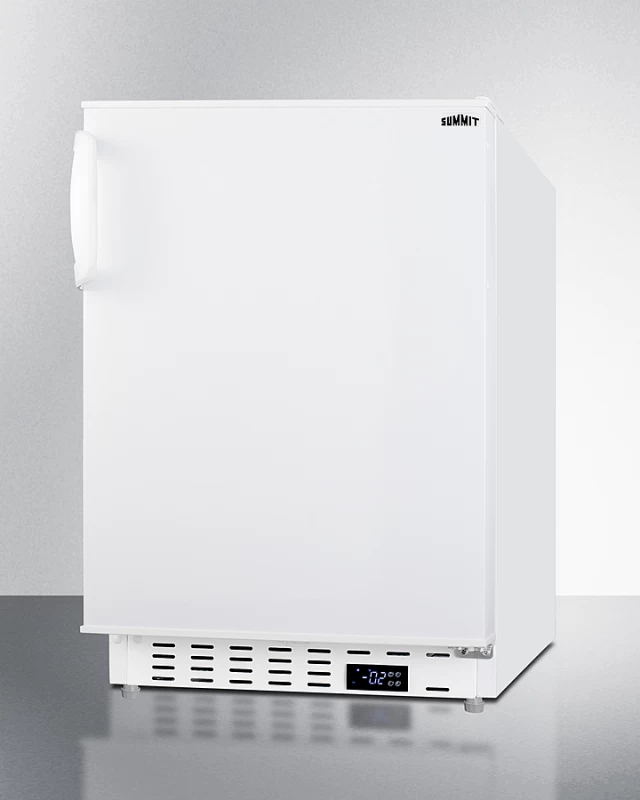

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ36 is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ36 features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 20" wide, the ALFZ36 is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR46W all-refrigerator. Additional choices are available in stainless steel and panel-ready exterior finishes.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications
Certifications

Features

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Door shelves

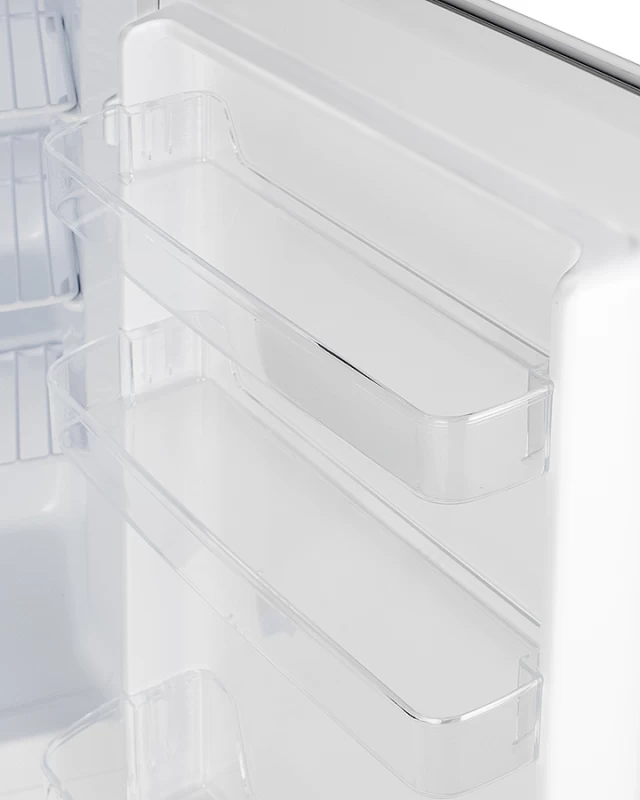

Three removable door racks for additional storage of larger items

Adjustable shelves

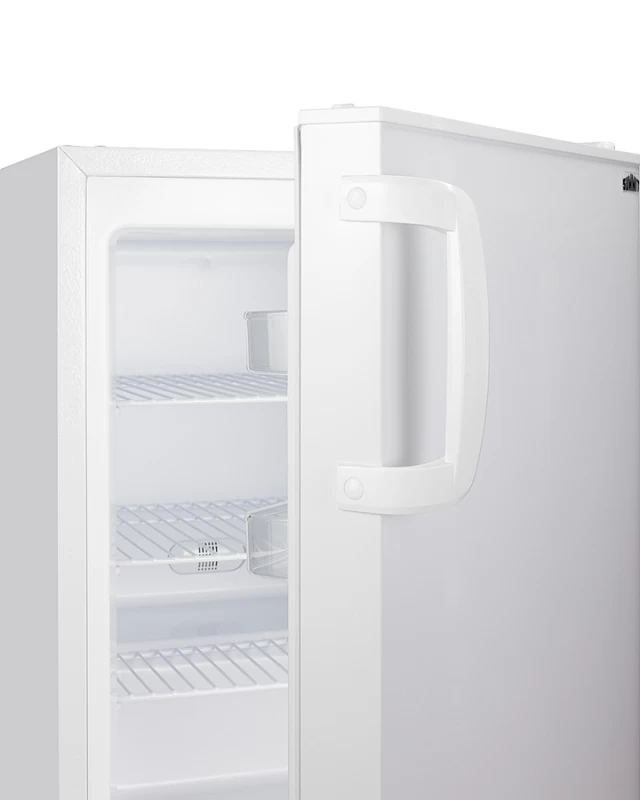

Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost

More temperature stability with an energy efficient manual defrost system

Matching all-refrigerator

This unit can be paired with the ALR46W all-refrigerator for a complete set

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Fully finished white cabinet

Allows the unit to be used freestanding

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width19.75 in.
Height31.75 in.
Length22.5 in.
Weight65 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.16 ft³
Dimensional Weight101.5 lbs.
Total of Cubes8.16 ft³
Total of Dimensional Weight101.5 lbs.

Overview Freezer

Nominal Height32.0" (81 cm)
Height of Cabinet31.75" (81 cm)
Height to Hinge Cap32.0" (81 cm)
Nominal Width20.0" (51 cm)
Width19.75" (50 cm)
Width with Door Open20.25" (51 cm)
Nominal Depth23.0" (58 cm)
Depth22.5" (57 cm)
Depth with Handle24.38" (62 cm)
Depth with door at 90°40.25" (102 cm)
Capacity2.68 cu.ft. (76 L)
Defrost TypeManual
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Energy Usage/Year266.0kWh/year
Amps0.6
Voltage/Frequency115 V AC/60 Hz
Weight65.0 lbs. (29 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101063041
Door SwingRHD
ReversibleYes
Interior Height23.75" (60 cm)
Interior Width14.5" (37 cm)
Interior Depth17.0" (43 cm)
Shelf TypeWire
Shelf Qty3
Full Door Shelves3
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeExterior
Refrigerant TypeR600a
Refrigerant Amount1.83 oz.
High Side PSI180.0
Low Side PSI80.0
Level Legs2
Wheels2
Compressor Step Height5.75" (15 cm)
Compressor Step Width14.5" (37 cm)
Compressor Step Depth6.0" (15 cm)
Temperature Range-13 to 5ºF
Sound Level33.1 dB
