Dishwasher with Front Controls - GDF630PFMDS

Dishwasher with Front Controls

Model: GDF630PFMDS

Dishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDSDishwasher with Front Controls GDF630PFMDS
Dishwasher with Front Controls GDF630PFMDS
Dishwasher with Front Controls GDF630PFMDS
Dishwasher with Front Controls GDF630PFMDS
Dishwasher with Front Controls GDF630PFMDS
Dishwasher with Front Controls GDF630PFMDS
+21more

Product Video

GE Dishwasher with Front Controls Black Slate GDF630PFMDS Picture
4 Videos

360 View

360 icon

Color : Black Slate

Dishwasher with Front Controls GDF630PFMDS
Black
Dishwasher with Front Controls GDF630PFMDS
Black Slate
Dishwasher with Front Controls GDF630PFMDS
Slate
Dishwasher with Front Controls GDF630PFMDS
Stainless Steel
Dishwasher with Front Controls GDF630PFMDS
White

Key Features

  • 3rd Rack

  • Dry Boostā„¢

  • 4 Bottle Wash Jets

  • Wash Zones

  • Three-level 600 Series Wash System

  • Steam + Sani

  • Dedicated Silverware Jets

  • Piranha Hard Food Disposer

Read More

Description

Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option.Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean.34 H x 23 3/4 W x 24 D
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications
Certifications

Features

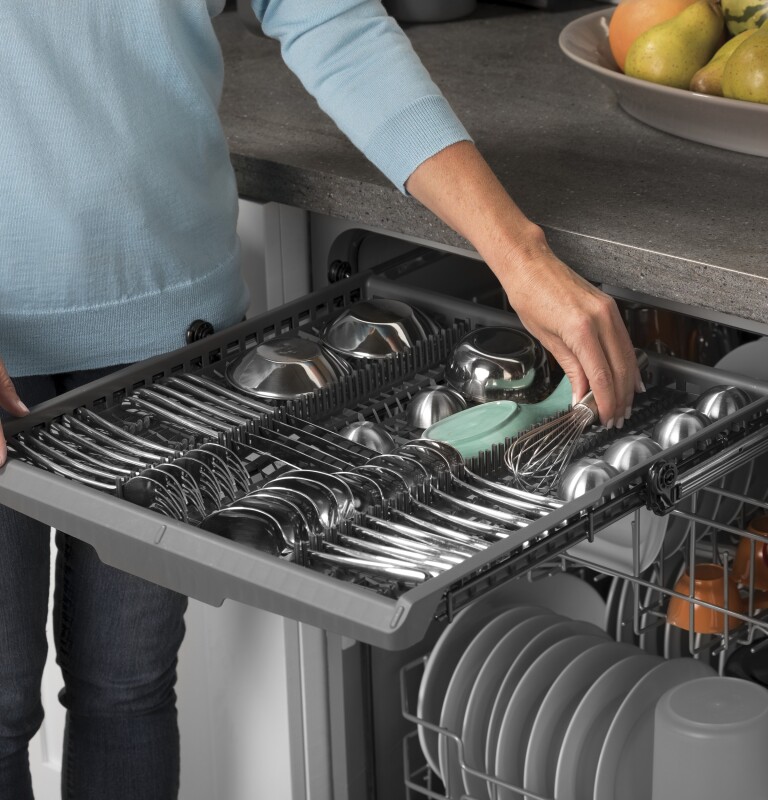

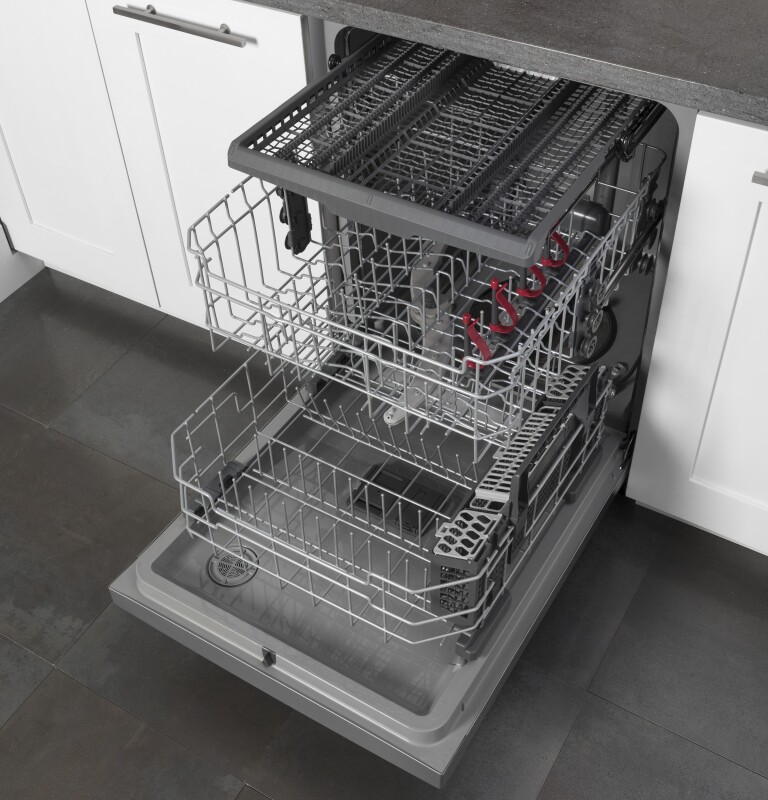

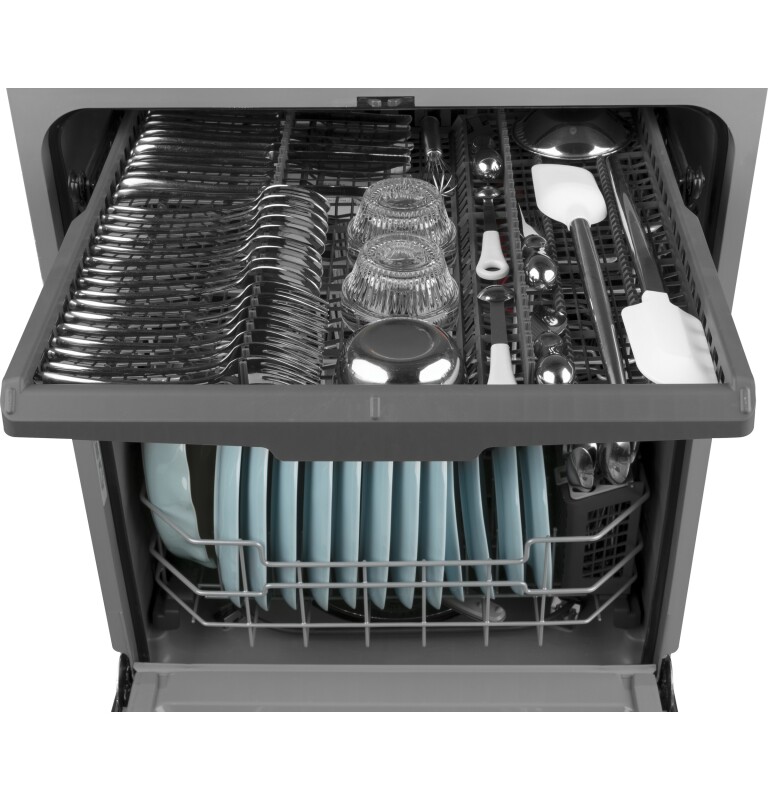

3rd Rack

Easily clean an entire flatware collection, knives and small utensils with an additional rack across the top of the dishwasher

Dry Boostā„¢

Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option

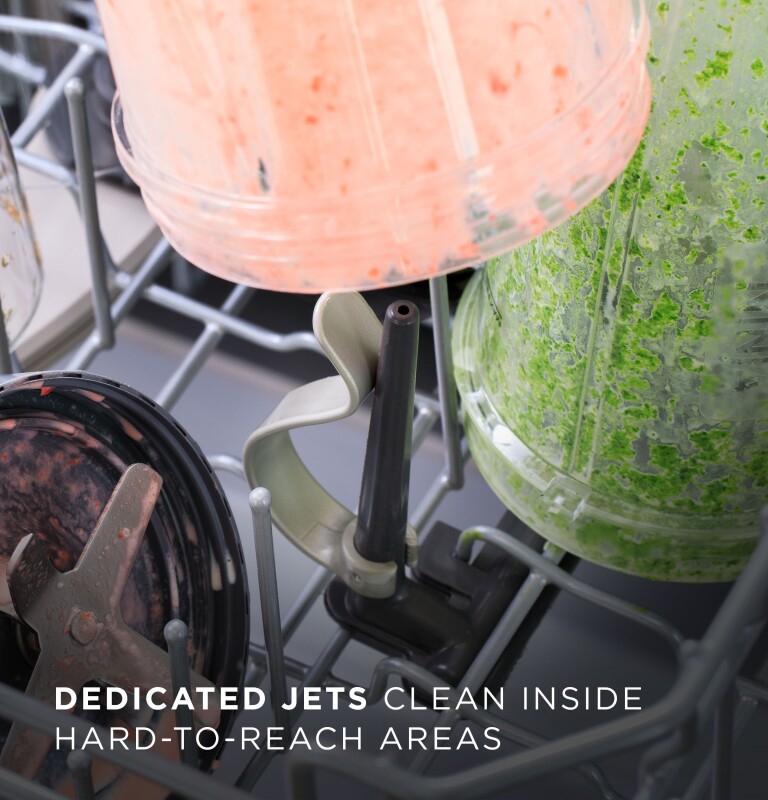

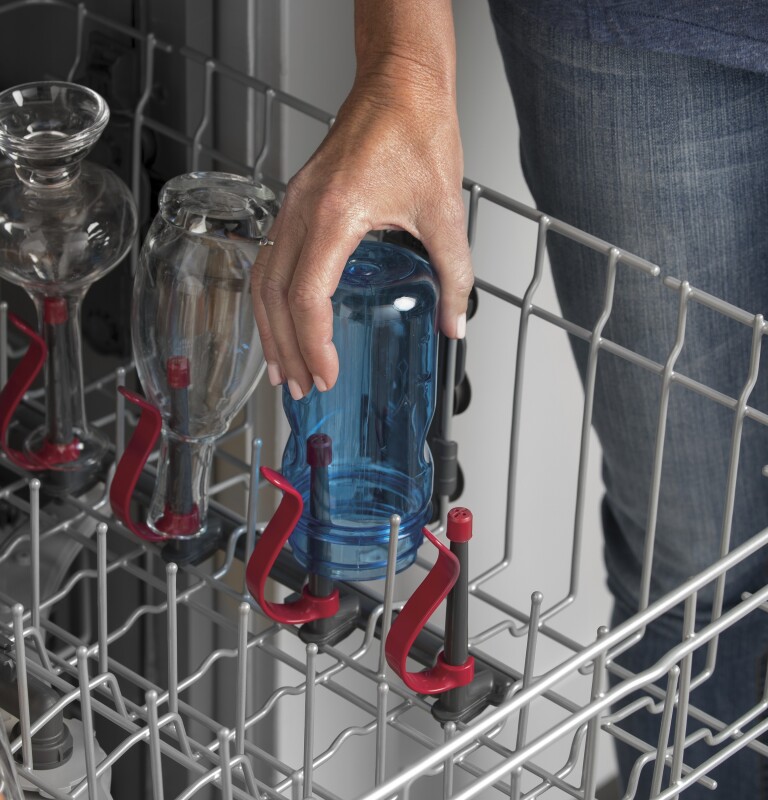

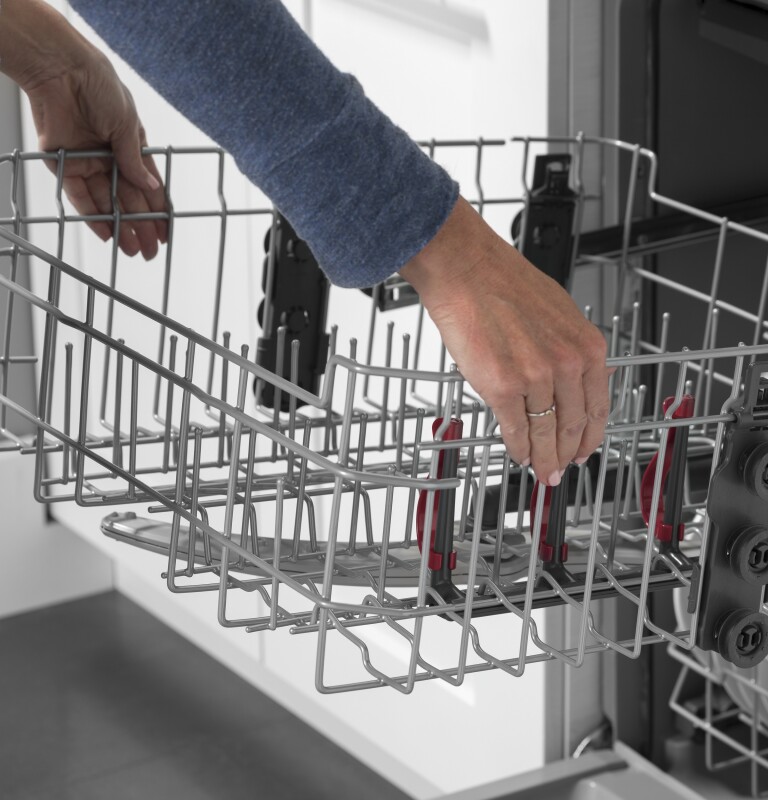

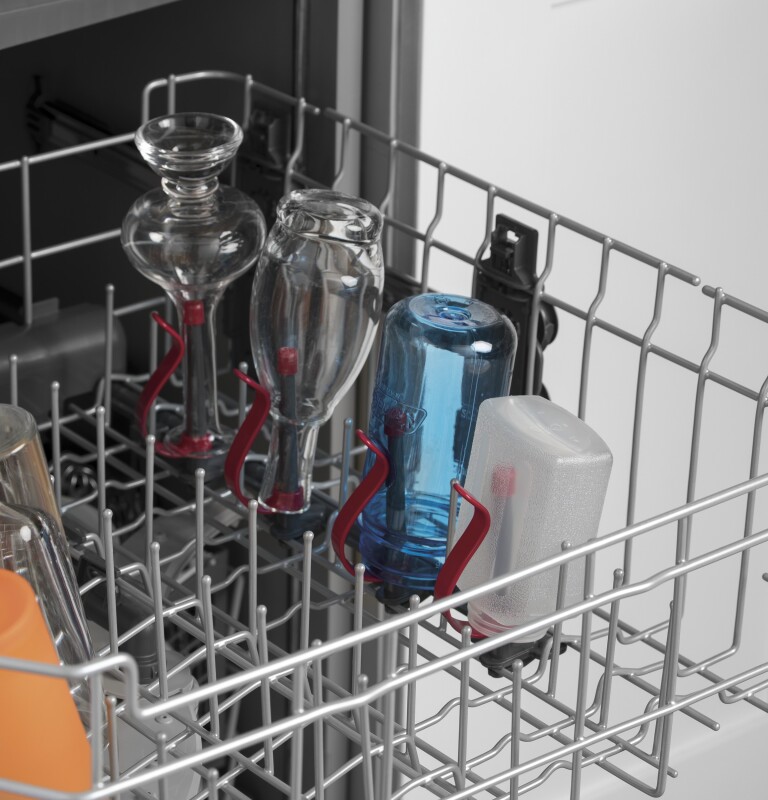

4 Bottle Wash Jets

Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean

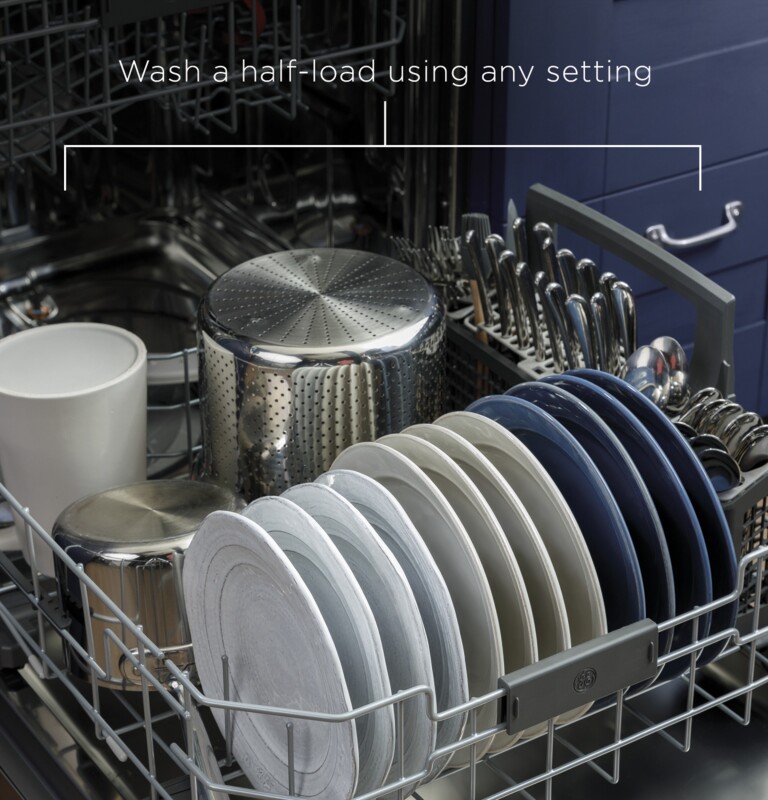

Wash Zones

Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash

Three-level 600 Series Wash System

Get full wash coverage from three pressurized wash zones

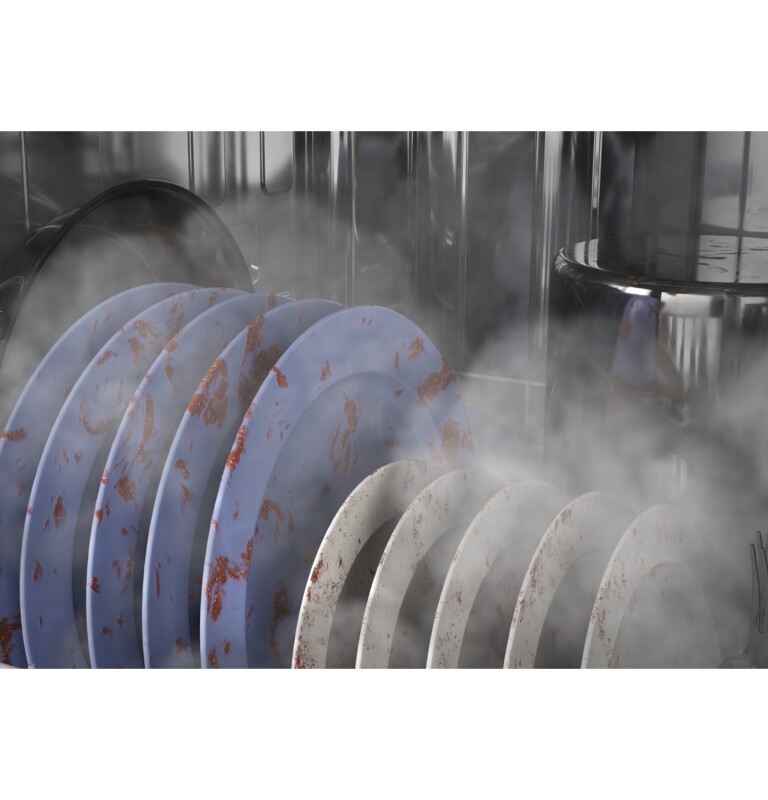

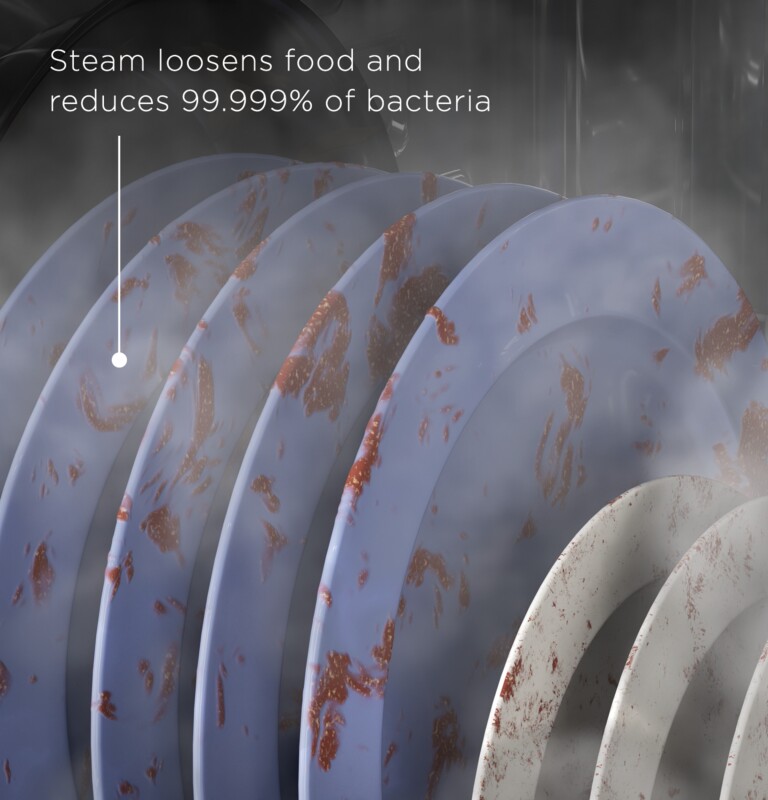

Steam + Sani

Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes

Dedicated Silverware Jets

Get table-ready silverware thanks to powerful jets on the spray arm that focus on silverware baskets

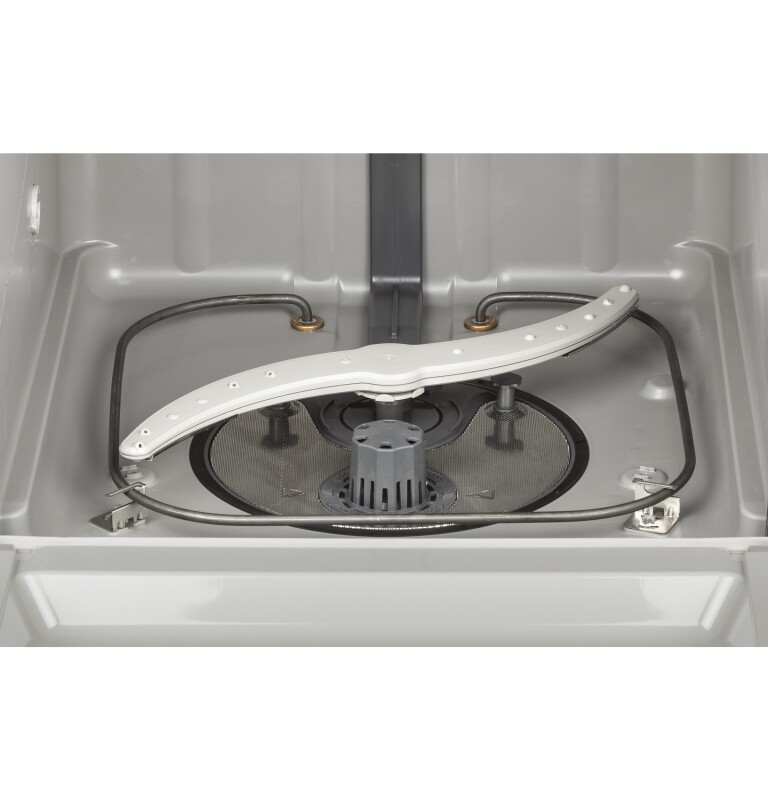

Piranha Hard Food Disposer

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms

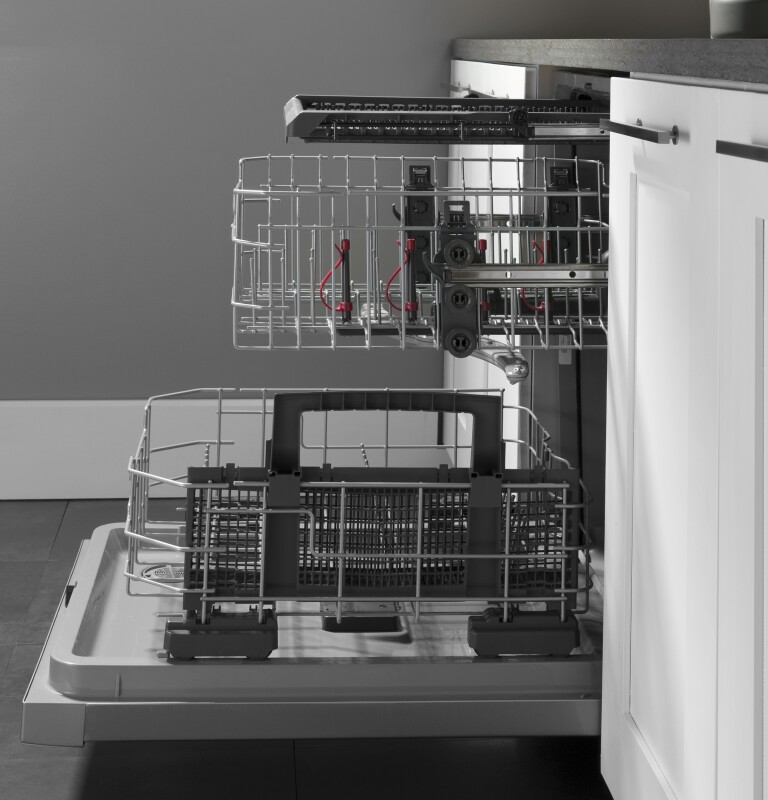

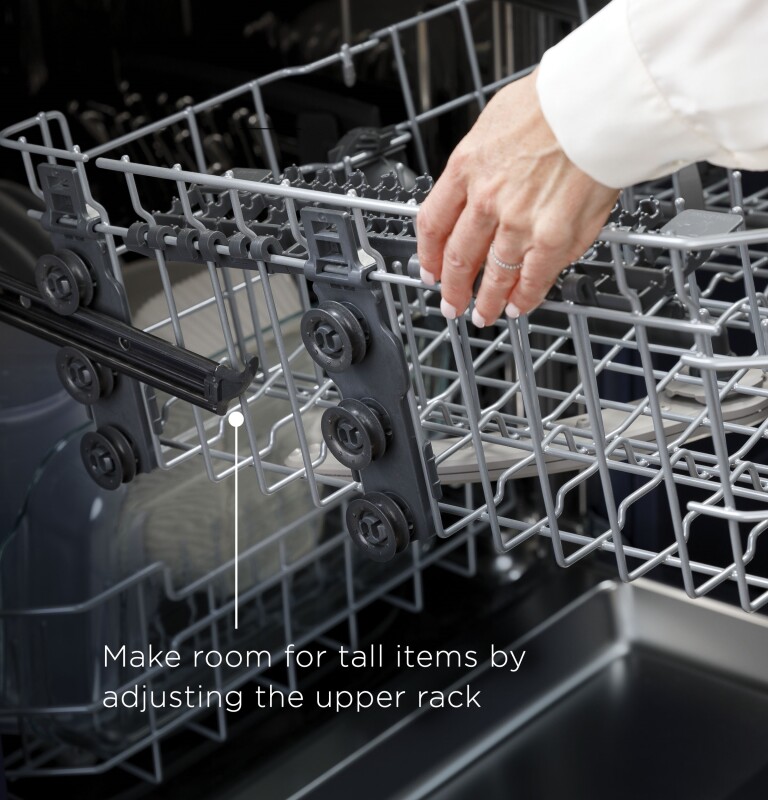

Adjustable Upper Rack

Fitting plates up to 10½" and other tall items in the upper rack is possible with an adjustment

1 Hr Wash

Enjoy a quality clean when you’re short on time

Quiet Package

50 dBA

Certifications

CEE Tier I certification

CEE Tier I

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

NSF Certified certification

NSF Certified

Specifications

Warranty

Parts1 Year
Labor1 Year

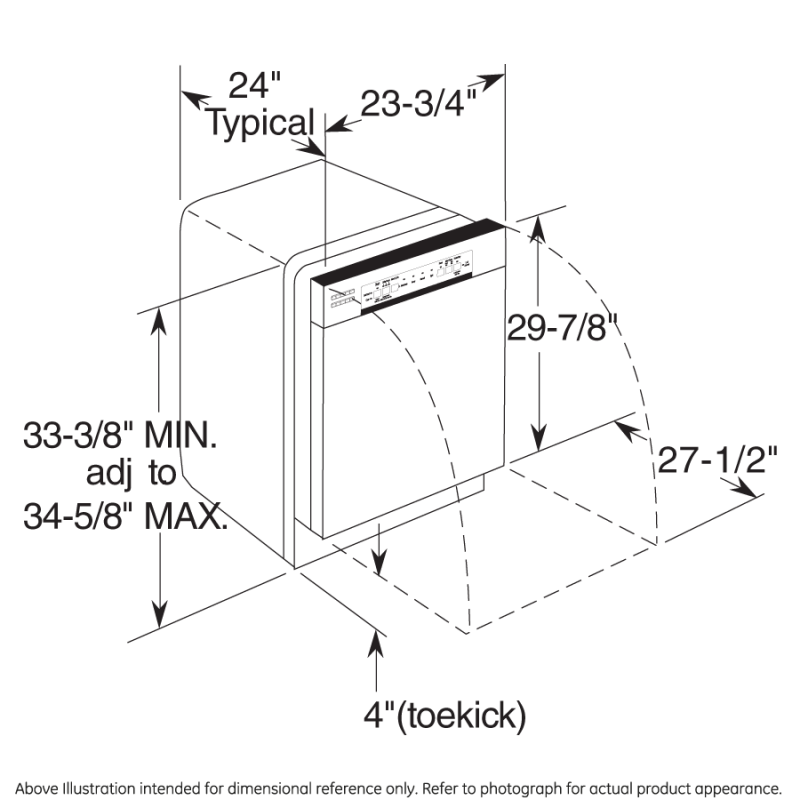

WEIGHTS & DIMENSIONS

Overall Depth24 in
Overall Height34 in
Height w/ Legs Retracted - Minimum Height33.375 in
Cabinet Width24 in
Net Weight67 lb
Approximate Shipping Weight82 lb
Height w/Legs Extended - Maximum Height34.625 in
Overall Width23 3/4 in

Dimensions & Weight

Width23.75 in.
Height34 in.
Length24 in.
Weight67 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.75 in.
Shipping Height39 in.
Shipping Length29 in.
Shipping Weight107 lbs.
Total of Shipping Weight107 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.22 ft³
Dimensional Weight139.42 lbs.
Total of Cubes11.22 ft³
Total of Dimensional Weight139.42 lbs.

FEATURES

Wash System600 Series
SensorClean Sensor
Lower RackBall-Tip Tines
Tub TypeTall Tub
Leveling System4 Leveling Legs
Number of Place Settings16
Tub LinerPlastic
LatchCenter Pull
Number of Options11
StyleBuilt-In Front Control
Water Filtration System100% Filtration with Piranha Hard Food Disposer and Removable Filter
Cutlery TrayOne piece removable 3rd rack
Door LinerClean Design with Plastic
Rack ColorSilver
DispenserRinse Aid with Indicator and Adjustment
WiFi ConnectOptional (Requires part no. PBX23W00Y1)
Racking SystemNylon Towerless
Dishwasher Drying FeaturesHeated Dry - On/Off
Exterior StyleTraditional
Number of Cycles4
Tub and Door LinerGray Plastic
Showroom Power ModeYes
Connected CapabilitiesAmazon Dash Replenishment

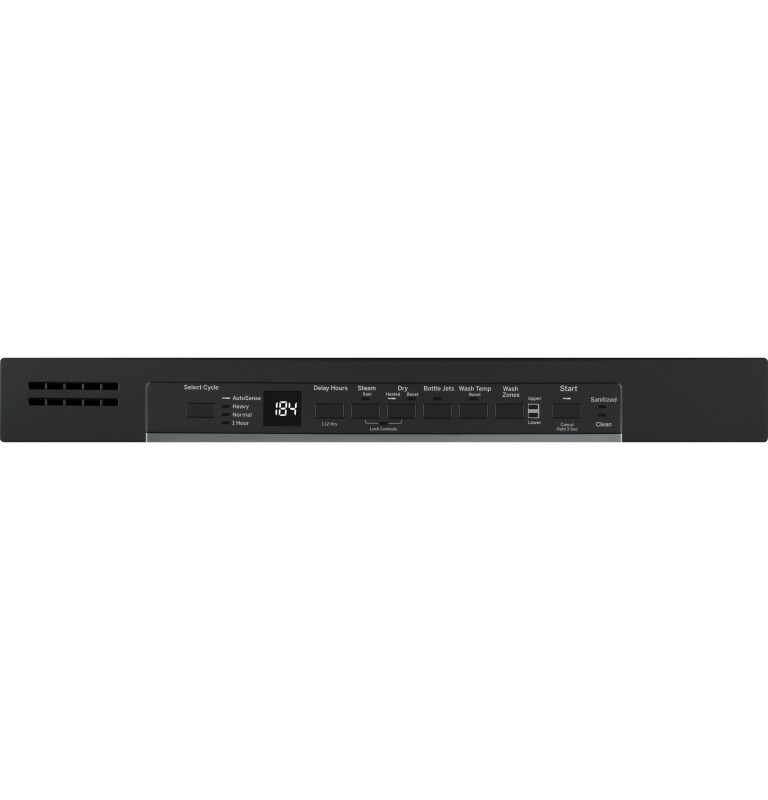

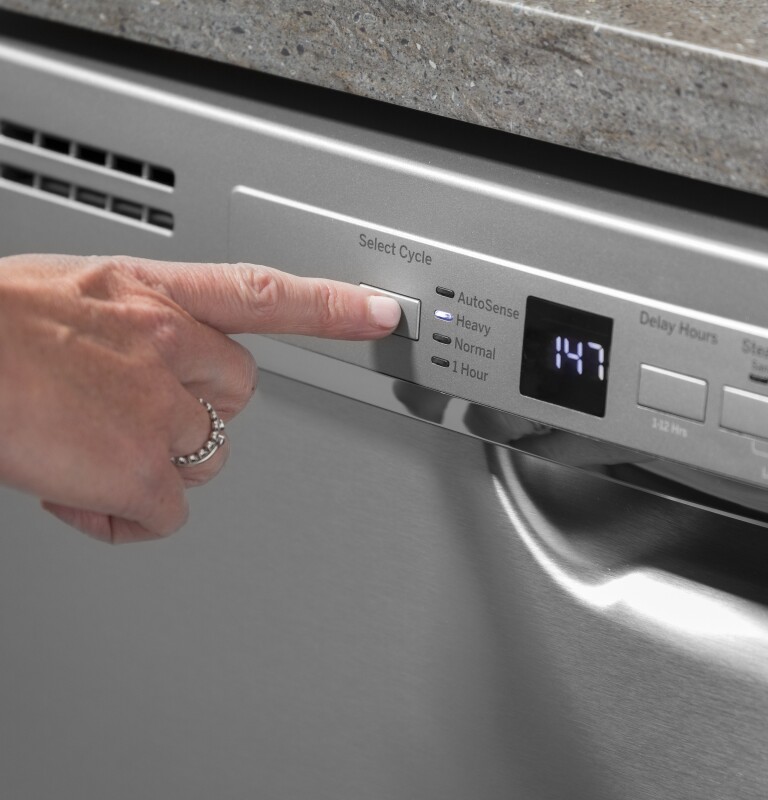

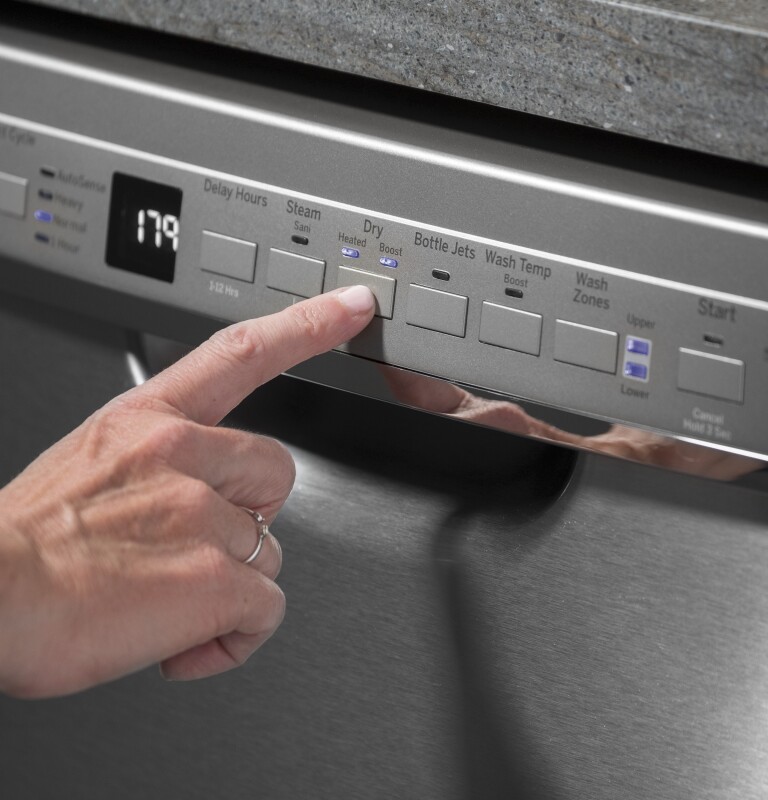

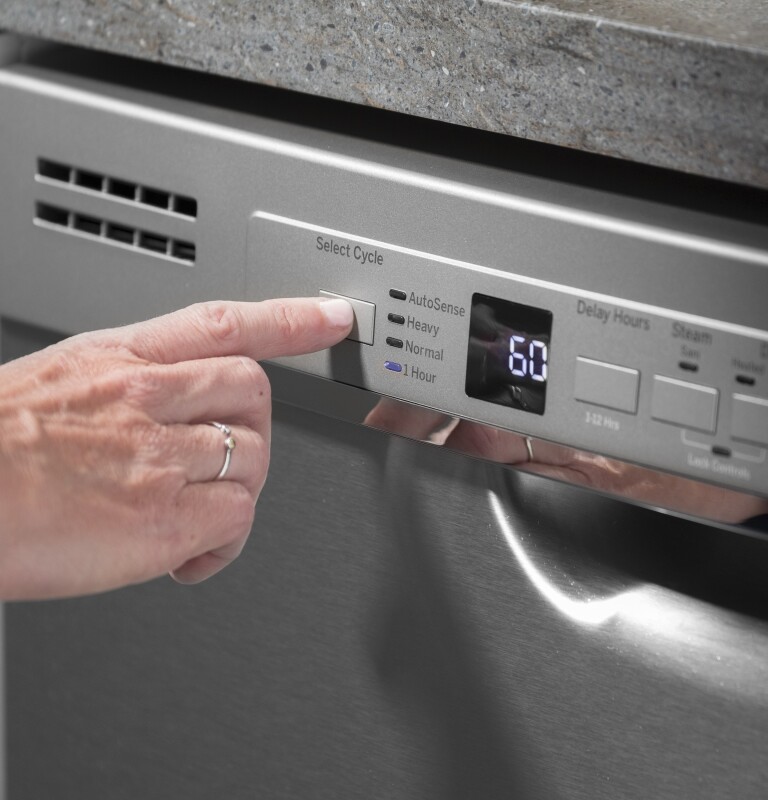

Control TypeElectronic Tactile Buttons
Dishwasher Control FeaturesAudible End-of-Cycle Signal
Dishwasher CyclesAutoSense
Dishwasher OptionsChild Lock
Rack FeaturesBall-Tipped Tines
Upper RackHeight Adjustable
Wash ArmsLower
Wash System FeaturesAutomatic Temperature Control
Dishwasher OptionsWash Zone Upper Only
Rack FeaturesManual Adjustable Upper Rack
Dishwasher CyclesNormal Wash
Control TypeFront Controls
Wash ArmsUpper
Wash System FeaturesPiranhaā„¢ Hard Food Disposer with removable filter
Connected CapabilitiesThe Google Assistant
Upper RackRemovable
Dishwasher Control FeaturesStart/Reset Pad
Connected CapabilitiesAmazon Alexa
Connected CapabilitiesIFTTT

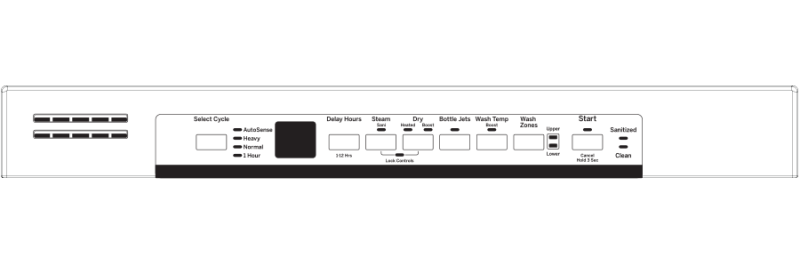

Control Type8 Touchpads
Dishwasher Control Features3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
Dishwasher Control FeaturesLast Cycle Memory
Dishwasher Control FeaturesControl Lock
Dishwasher CyclesHeavy Wash
Dishwasher Cycles1 Hour Wash
Dishwasher Drying FeaturesDry Boostā„¢
Dishwasher OptionsDelay Start 1-12 Hr.
Dishwasher OptionsSteam PreWash
Dishwasher OptionsWash TempBoost
Dishwasher OptionsSani (Certified to NSF Standard 184)
Dishwasher OptionsHeated Dry
Dishwasher OptionsDry Boostā„¢
Dishwasher OptionsStart/Reset
Dishwasher OptionsWash Zone Lower Only
Dishwasher OptionsBottle Wash

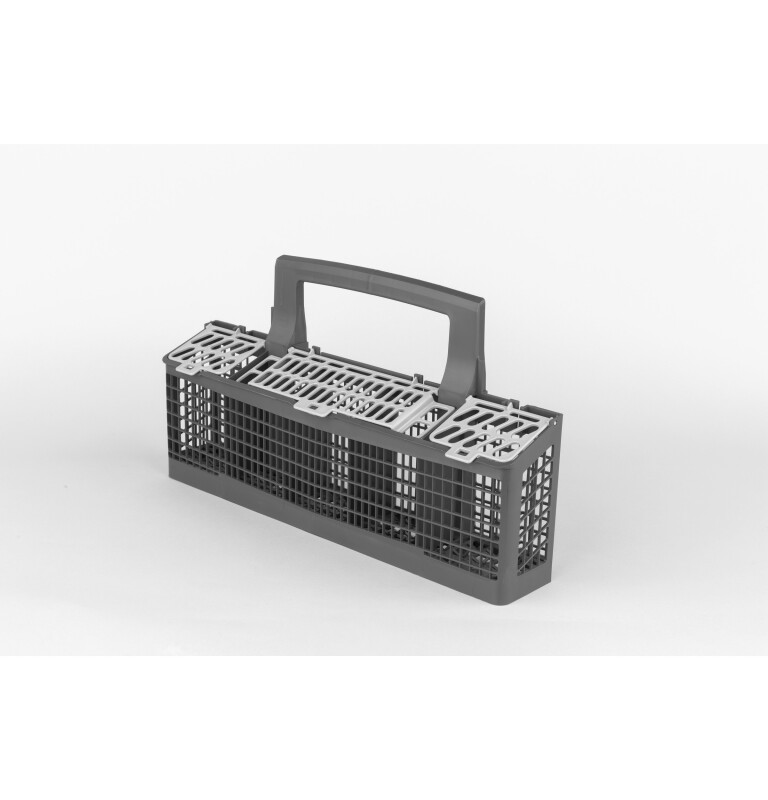

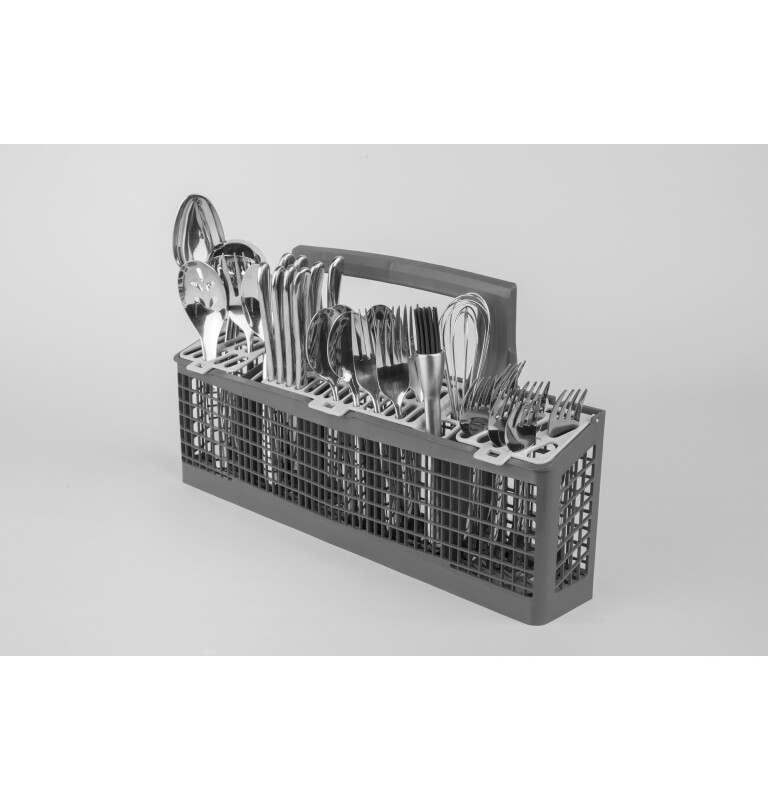

Rack Features1 Piece Silverware Basket with Cell Covers
Upper RackBall-Tip Tines
Wash Arms3 Wash Levels
Wash ArmsMiddle
Wash System FeaturesDual Pumps and Motors
Wash System FeaturesDrain Pump
Wash System FeaturesAutomatic HotStart
Wash System FeaturesBottle Jets (4)
Wash System FeaturesDedicated Silverware Jets

POWER / RATINGS

Power ConnectionOptional cord kit (GPFCORD - WX09X70910, WX09X70911)
Calrod Heater Watts800/500
Volts/Hertz/Amps120v; 60Hz; 7.1A

ECONOMICAL / QUIET

Door InsulationMastic
Quiet Package50 dBA
Outer WrapInsulation Blanket
Motor TypeSingle Speed
Quiet FeaturesSealed Toe Kick
Quiet FeaturesTub Collar Trim
Door InsulationInsulation
Quiet FeaturesQuiet Water Valve

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

APPEARANCE

Handle ColorColor-Matched
Door StyleLong Door
Door AppearanceContour door
Color AppearanceFingerprint Resistant Black Slate
Control Panel ColorColor Matched
Handle DesignRecessed
InstallationFlush Cabinet Installation
InstallationSide or Top Mount Install Brackets Included
InstallationBuilt-Up Floor Capable
