$2,599.00

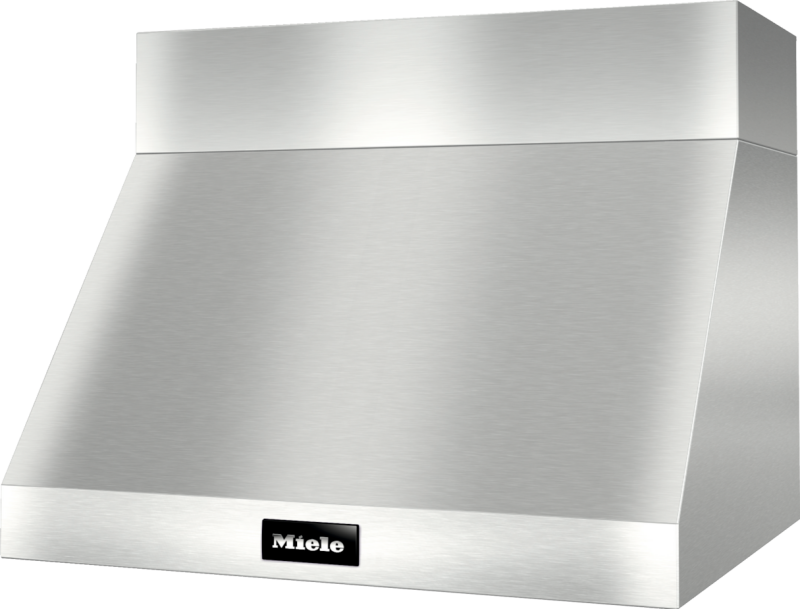

Wall ventilation hood for perfect combination with Ranges and Rangetops. - DAR12203
Wall ventilation hood for perfect combination with Ranges and Rangetops.
Model: DAR12203
$2,599.00
Rebate AvailableColor : Stainless steel
$2,599.00
Current Rebates
Key Features
Discreetly integrated
Powerful lighting with minimal energy consumption
Convenience and safety in detail
Permanent safety
Available from Drimmers Appliances, serving customers throughout Florida.
Features
Discreetly integrated
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Powerful lighting with minimal energy consumption
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Permanent safety
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Specifications
Operating modes
| Recirculated mode | Can be retrofitted |
| External operation possible | Yes |
Design
| Wall ventilation hood | Yes |
Required accessories
| Blower | Yes |
| Duct cover | Yes |
User convenience
| Rotary knob | Yes |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | Yes |
Cleaning convenience
| Easy to clean canopy interior CleanCover | Yes |
| Dishwasher-safe grease collection channel | Yes |
Filter system
| Number of dishwasher-safe stainless steel baffle filters | 2 |
Lighting
| LED | Yes |
| Number x W | 2 x 3 W |
Fan option (buy separately)
| DRIB XL internal blower in CFM (m³(h) | 1189 |
| DREB XL external blower in CFM (m³/h) | 1189 |
Installation note
| Vent connection at top | Yes |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
Standard accessories
| Non-return flap | Yes |
Other
| Standard plug fitted | Yes |
| Total connected load in kW | 0.81 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
Dimensions & Weight
| Weight | 132 lbs. |
| Width | 29.92 in. |
| Height | 24.29 in. |
| Length | 24.06 in. |
| Weight | 131.23 lbs. |
| Gross Weight | 90.39 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Weight | 172 lbs. |
| Total of Shipping Weight | 172 lbs. |
| Source | Manufacturer |
| Shipping Width | 35.43 in. |
| Shipping Height | 27.95 in. |
| Shipping Length | 29.13 in. |
| Shipping Weight | 171.23 lbs. |
| Total of Shipping Weight | 171.23 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 16.7 ft³ |
| Cubic Feet Measurement | 10.12 ft³ |
| Dimensional Weight | 125.80 lbs. |
| Total of Cubes | 10.12 ft³ |
| Total of Dimensional Weight | 125.80 lbs. |
