36" Under Cabinet Ductless Range Hood, ADA Compliant - ADAH1736W

36" Under Cabinet Ductless Range Hood, ADA Compliant

Model: ADAH1736W

36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W
36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W
36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W
36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W
36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W
36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W

Color : Other

36" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1736W
Other

Key Features

  • ADA compliant design

  • 36" width

  • Ductless range hood

  • White finish

  • Dishwasher-safe aluminum filter

  • Two-speed fan

  • Charcoal liner

  • Switchable light option

Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications
Certifications

Features

ADA compliant design

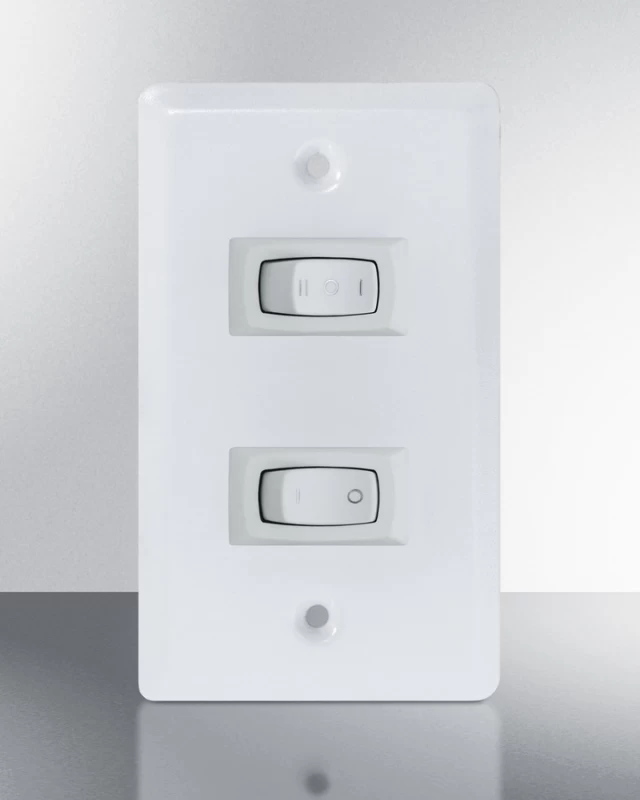

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

36" width

Designed to fit over commonly sized ranges and cooktops

Ductless range hood

Use for recirculating operation where no ducting to the outside is available

White finish

Stainless steel and black range hoods also available in this size and series

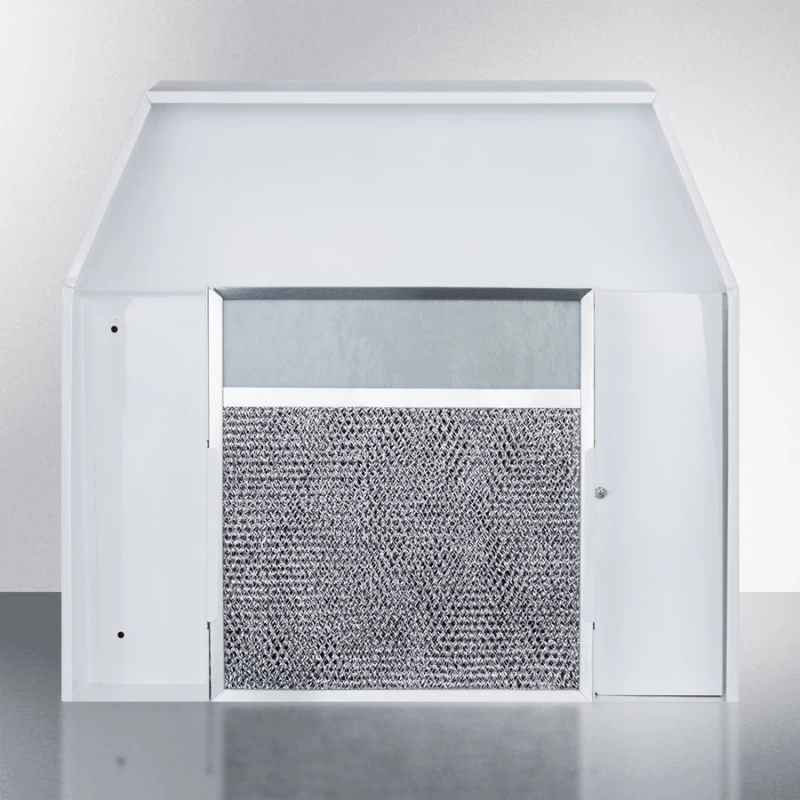

Dishwasher-safe aluminum filter

Removable mesh filter with solid construction and easy cleanability

Two-speed fan

High and low setting gives you the right amount of power for most general cooking applications

Charcoal liner

Filter includes a charcoal liner for better absorption of grease and odors

Switchable light option

Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.

Made in the USA

Solidly constructed for years of use

More sizes available

Also available in 18", 20", 24", and 30" wide sizes

Ducted choices available by special order

For a ducted version of this hood, see the ADAH16 series

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width36 in.
Height5 in.
Length18 in.
Weight22 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.88 ft³
Dimensional Weight23.31 lbs.
Total of Cubes1.88 ft³
Total of Dimensional Weight23.31 lbs.

Overview Range Hood

Nominal Height5.0" (13 cm)
Height of Cabinet5.0" (13 cm)
Nominal Width36.0" (91 cm)
Width36.0" (91 cm)
Nominal Depth18.0" (46 cm)
Depth18.0" (46 cm)
CabinetWhite
US Electrical SafetyUL
Weight22.0 lbs. (10 kg)
Parts & Labor Warranty1 Year
UPC761101064109
InstallationUnder Cabinet
VentingRecirculating
Number of Fan Speeds2
Maximum Air Movement160.0 CFM
