Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners - KFDC500JAV

This product has been discontinued by the manufacture and is no longer available.

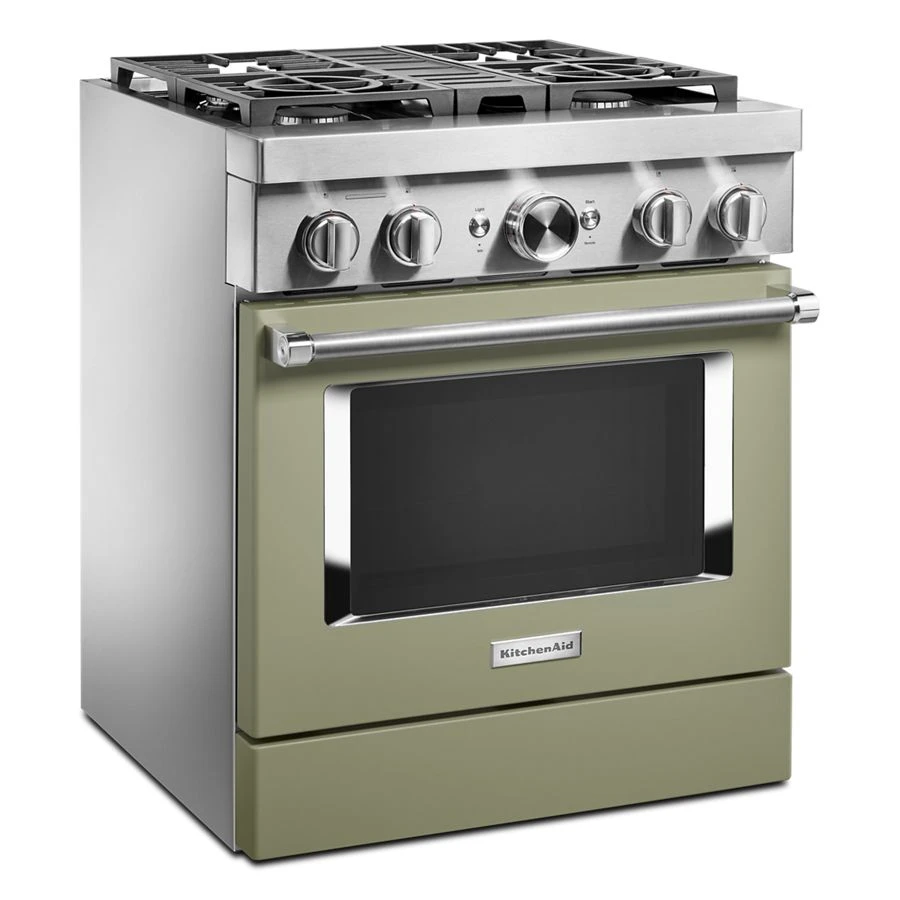

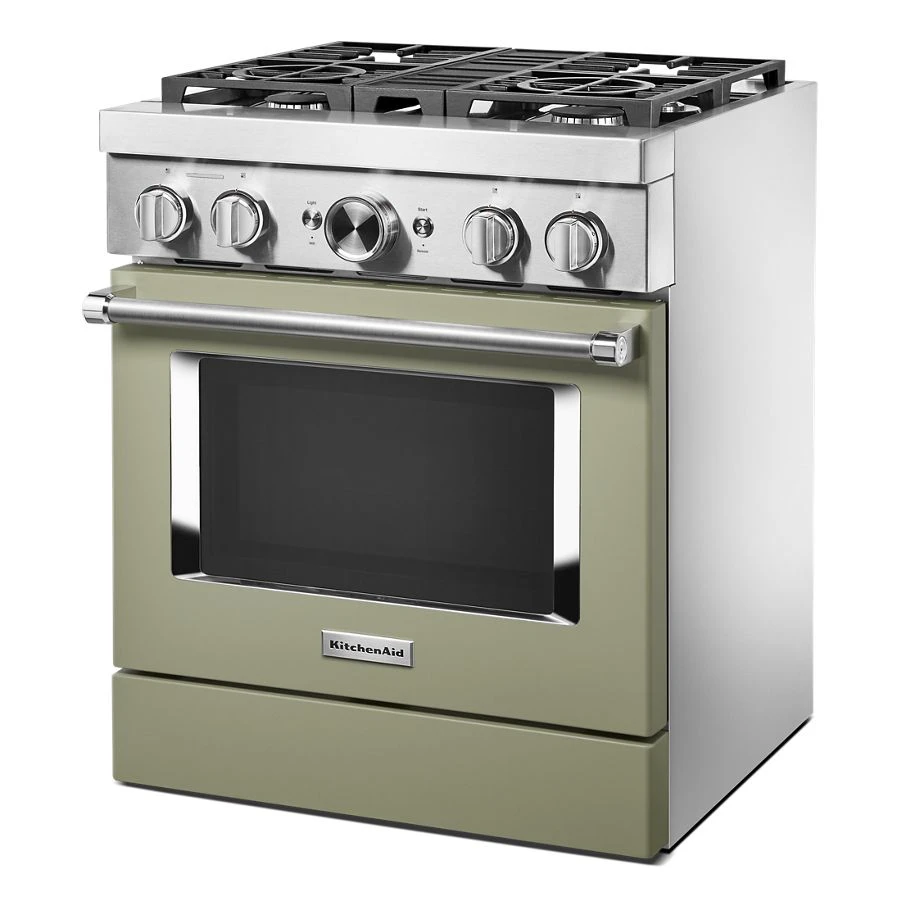

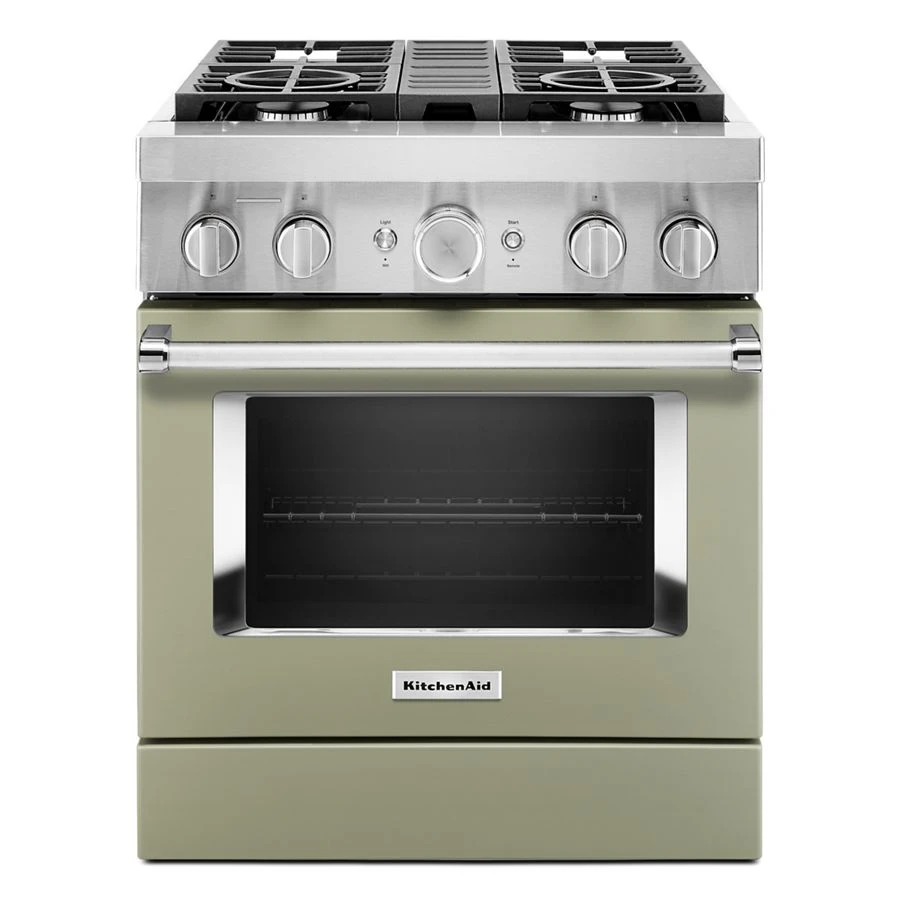

Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners

Model: KFDC500JAV

Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAVKitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAV
Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAV
Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAV
Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAV
Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAV
Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAV
+8more

360 View

360 icon

Color : Avocado Cream

Kitchenaid® 30'' Smart Commercial-style Dual Fuel Range With 4 Burners KFDC500JAV
Avocado Cream

Key Features

  • Dual Fuel Range

  • Smart Appliance

  • Three-Level Convertible Grates

  • 5,000 BTU Simmer & Melt Burner

  • Even-Heat™ True Convection

  • Two 20,000 BTU Ultra Power™ Dual-Flame Burners

Description

Empower your creativity with a 30-inch KitchenAid® Commercial Style Range with 4 burners. This dual fuel range combines a gas cooktop with the even baking of an electric oven. Two versatile 20,000 BTU Ultra Power™ Dual-Flame Burners offer the power and precision to sear, simmer, stir-fry and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

Dual Fuel Range

satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

Smart Appliance

lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

Three-Level Convertible Grates

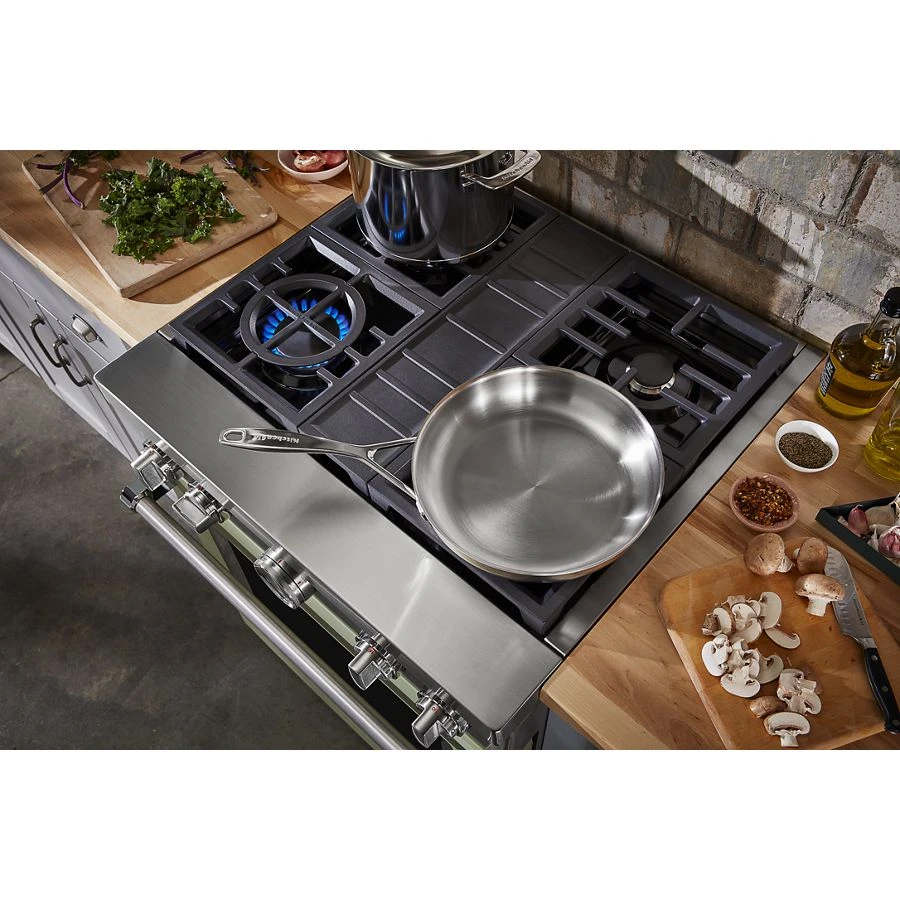

with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

5,000 BTU Simmer & Melt Burner

with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

Even-Heat™ True Convection

features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

Two 20,000 BTU Ultra Power™ Dual-Flame Burners

give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

Specifications

Details

Oven Automatic Shut-OffYes
Cooktop ConfigurationAll Burners
Fuel TypeDual Fuel
LP ConvertibleYes - Kit Included
Oven ConfigurationSingle Oven
Power On Indicator LightYes
Power Outage CompatibleYes
Range ConfigurationFreestanding
Range TypeFreestanding
Natural Gas ConvertibleYes
Oven SelectionsAudible Signal, Bake, Broil, Cancel/Off, Convect Modes, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Keep Warm Setting, Proofing, Sabbath Mode, Temperature Probe

Cooktop Details

Auto Re-ignitionYes
Cooktop Control Knob ColorStainless Steel
Cooktop Control Knob TypeMetal
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Surface MaterialPorcelain Coated Steel
Griddle IncludedN/A
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo
Ignition TypeFlame-Sensing™ Re-ignition

Certifications

ADA CompliantNo
CULYes
Star K CertifiedYes
ULYes

Electrical

Power Cord IncludedNo

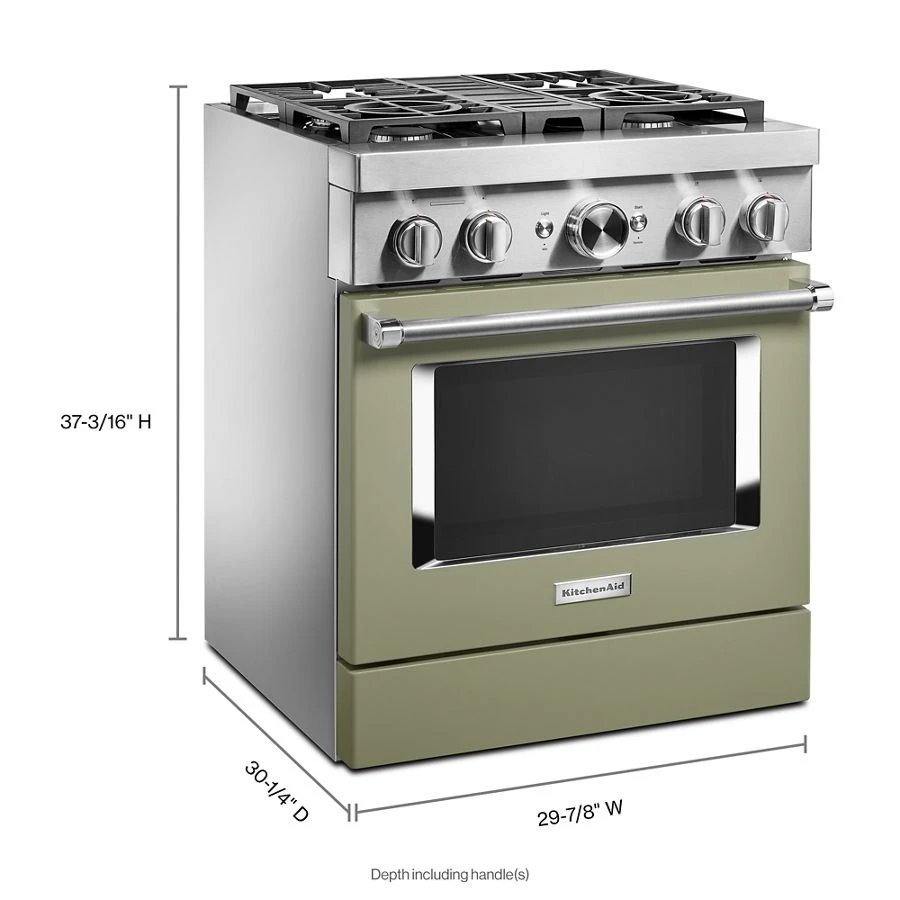

Dimensions & Weight

Width29.88 in.
Height36 in.
Length24 in.
Weight408 lbs.
Carton Depth35 1/2
Carton Height47 1/2
Carton Width35 13/16
Cutout Depth (in)24
Cutout Height (in)36
Cutout Width (in)30
Depth Closed Excluding Handles27 3/4
Depth Closed Including Handles30 1/4
Depth With Door Open 90 Degree46 1/2
Gross Weight408
Net Weight358.0
Cutout Depth(IN,inches)24.0000
Cutout Height(IN,inches)36.0000
Cutout Width(IN,inches)30.0000
Depth Closed Excluding Handles(IN,inches)27.7500
Depth Closed Including Handles(IN,inches)30.2500
Depth With Door Open 90 Degree(IN,inches)46.5000
Maximum Height(IN,inches)37.5000
Minimum Height(IN,inches)36.0000
Net Weight(LB,pounds)358
Carton Depth(IN,inches)35.5000
Carton Height(IN,inches)47.5000
Carton Width(IN,inches)35.8125
Cutout Height Min(IN,inches)36.0000
Gross Weight(LB,pounds)408

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height41 in.
Shipping Length29 in.
Shipping Weight448 lbs.
Total of Shipping Weight448 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement14.94 ft³
Dimensional Weight185.7 lbs.
Total of Cubes14.94 ft³
Total of Dimensional Weight185.7 lbs.

Element/Burner Details

Cooktop Element StyleSealed Burners
Left Front Element-Burner TypeDual-Stacked Burner
Left Rear Element-Burner Power15000 BTU/11000 LP
Left Rear Element-Burner TypeSealed Burner
Number of Cooking Element-Burners4
Right Front Element-Burner TypeDual-Stacked Burner
Right Rear Element-Burner TypeSealed Burner
Left Front Element-Burner Power20,000 BTU/14,000 LP
Number of Grates4
Right Front Element-Burner Power20,000 BTU/14,000 LP
Right Rear Element-Burner Power5,000 BTU/3,000 LP

Exterior Details

Door TypeMetal & Glass
Oven Control Knob TypeMetal
Oven Control LocationFront
Oven Control TypeKnobs
Oven Window SizeLarge
Handle ColorStainless Steel
Handle MaterialMetal

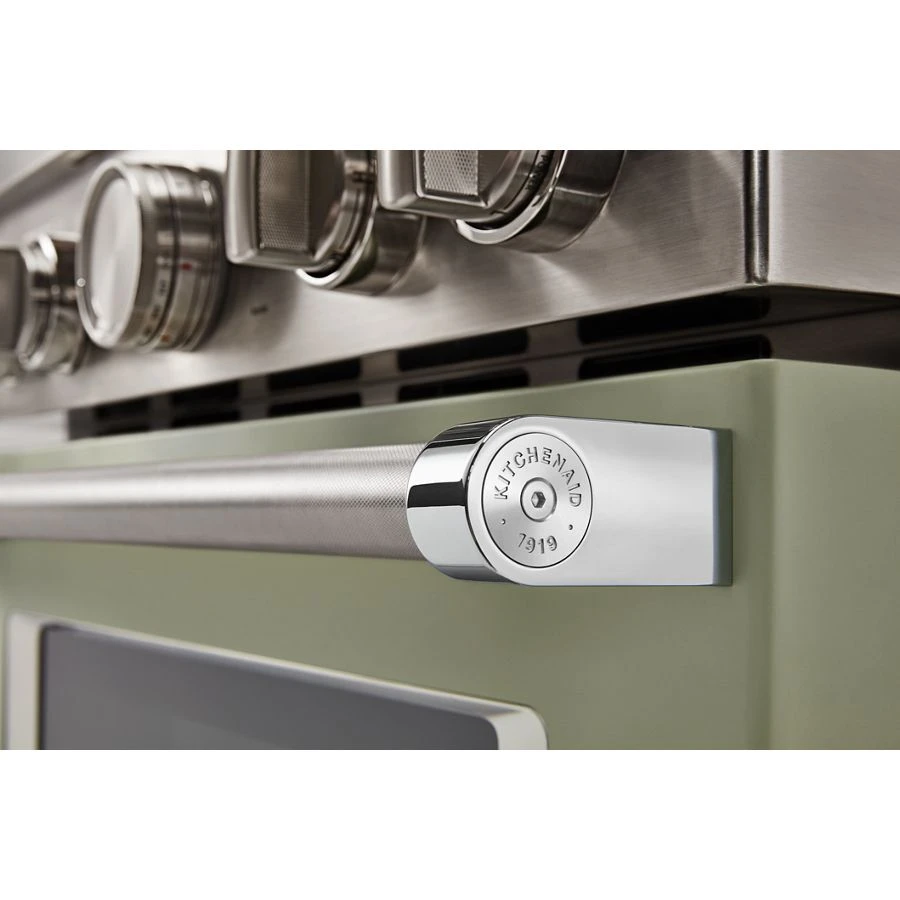

Handle TypeTowel Bar
Oven Control Knob ColorStainless Steel

Grate Details

Number of Grates4
Grate DetailsDishwasher Safe, Individual, Matte Finish, Porcelain Coated Cast Grates

Smart Compatibility

Smart ApplianceYes
ConnectivityAmazon Alexa, Android, Google Assistant, iOS
Works WithApp, Remote Access, Voice Controlled, WiFi

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustYes
Bake Element Power3,000 W
Broiler Element Power5,500 W
Broiler LocationTop Center
Convection Element TypeTrue Bow Tie
Convection FunctionsBake, Broil, Roast
Door RemovableYes
Hidden Bake ElementYes
Interior ColorBlack
Natural Gas ConvertibleYes
Number of Oven Lights3

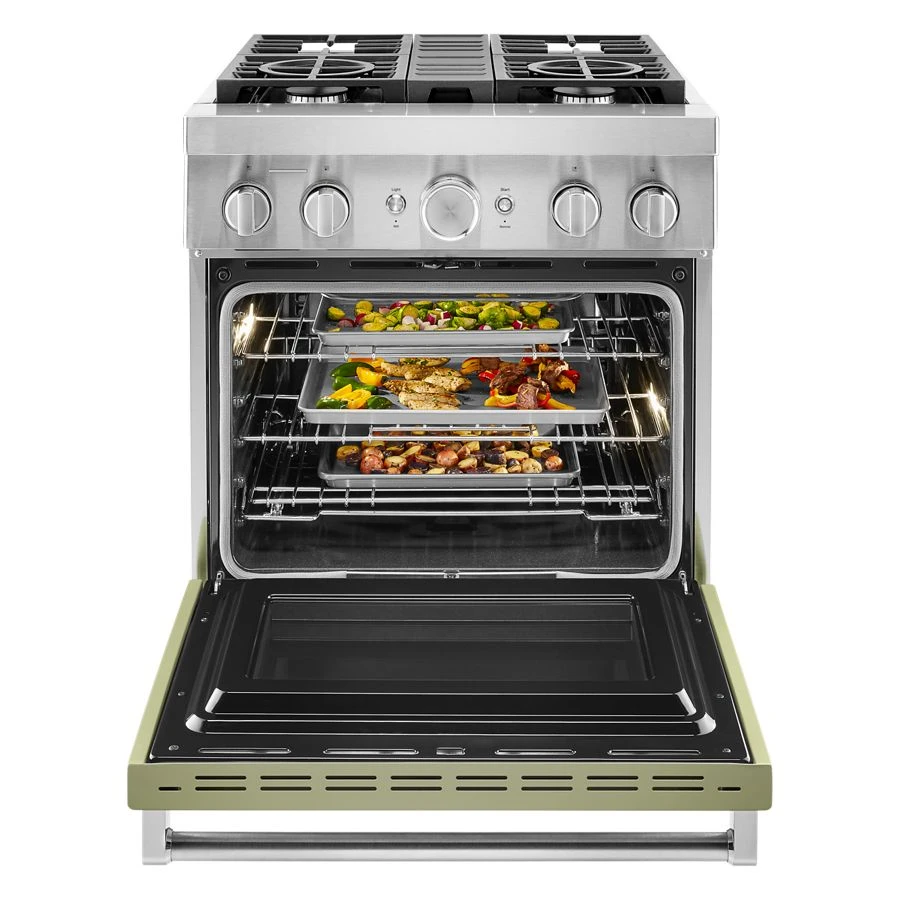

Number of Oven Racks3
Oven Cleaning TypeSelf-Cleaning
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Oven Rack Guide TypeMolded
Oven Rack TypeGliding Roll-Out, Standard (Both)
Convection Element Power1,600 w

Features

Range FeaturesSmart Appliance

Dimensions

Cutout Depth24 in
Cutout Height36 in
Cutout Width30 in
Gross Weight408 lbs
Height36 in
Net Weight358 lbs
Oven Interior Width24 in
Depth30.25 in
Depth Closed Excluding Handles27.75 in
Depth Closed Including Handles30.25 in
Depth With Door Open 90 Degree46.5 in
Oven Interior Depth16.3 in
Oven Interior Height14.3 in
Width29.875 in
