5.0 Cu. Ft. Gas Range With Center Oval Burner - WFG525S0JV
5.0 Cu. Ft. Gas Range With Center Oval Burner
Model: WFG525S0JV
360 View
5.0 Cu. Ft. Gas Range With Center Oval Burner
Model: WFG525S0JV
Color : Black Stainless
Key Features
Center Oval Burner
SpeedHeat™ Burner
Keep Warm setting
Available from Drimmers Appliances, serving customers throughout Florida.
Features

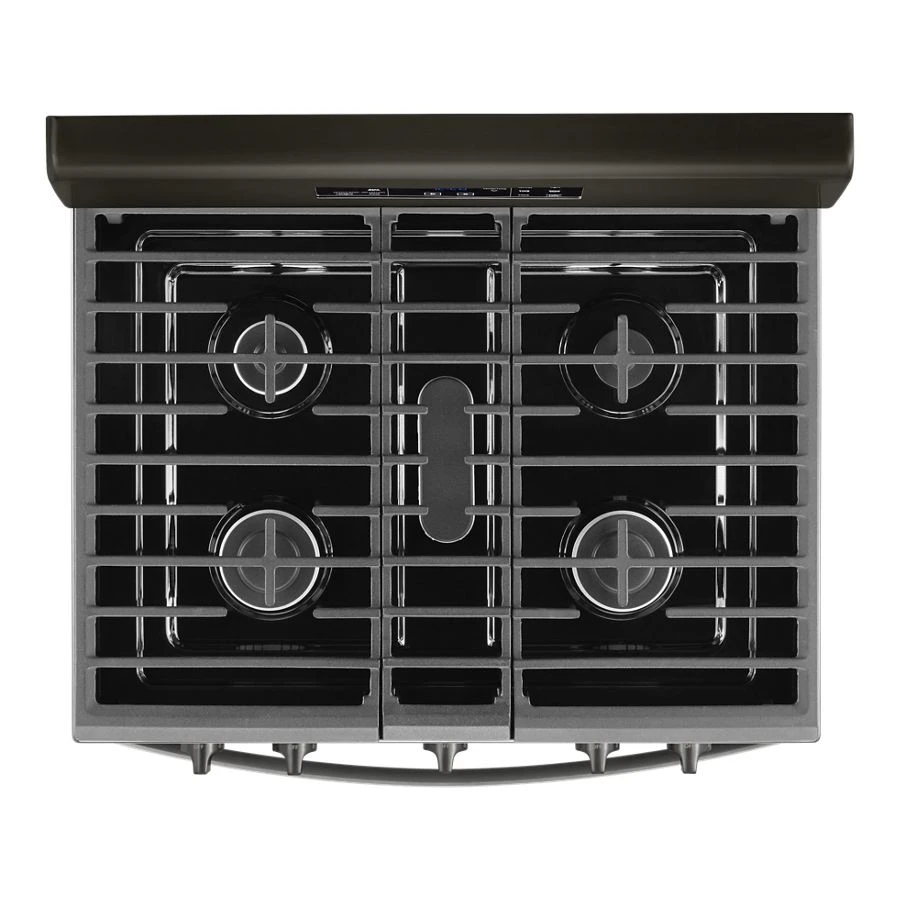

Center Oval Burner
Easily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the range top.
SpeedHeat™ Burner
Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
Keep Warm setting
Keep dishes from getting cold with a setting that delivers low heat to the oven, so your meal is ready when you are.
Specifications
Cooktop Details
| Auto Re-ignition | No |

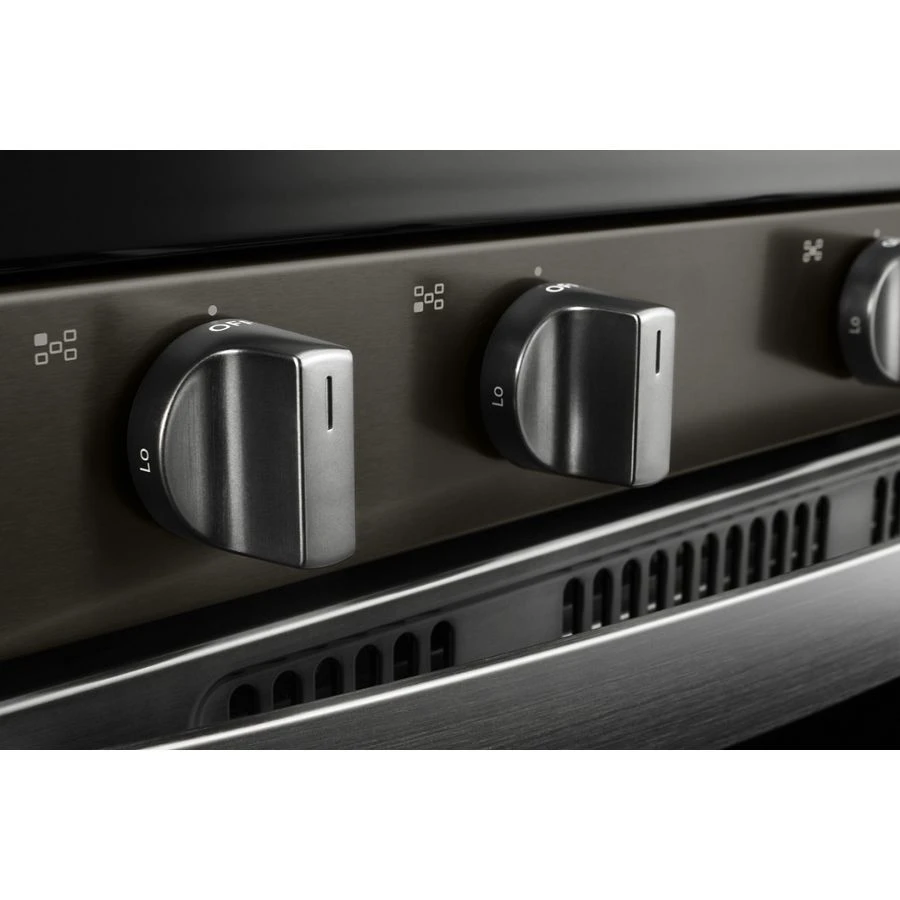

| Cooktop Control Knob Color | Black Stainless |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Exterior Details
| Door Type | Glass Window |
| Handle Color | Black Stainless |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Oven Control Knob Color | Black Stainless |
| Oven Control Knob Type | Plastic |

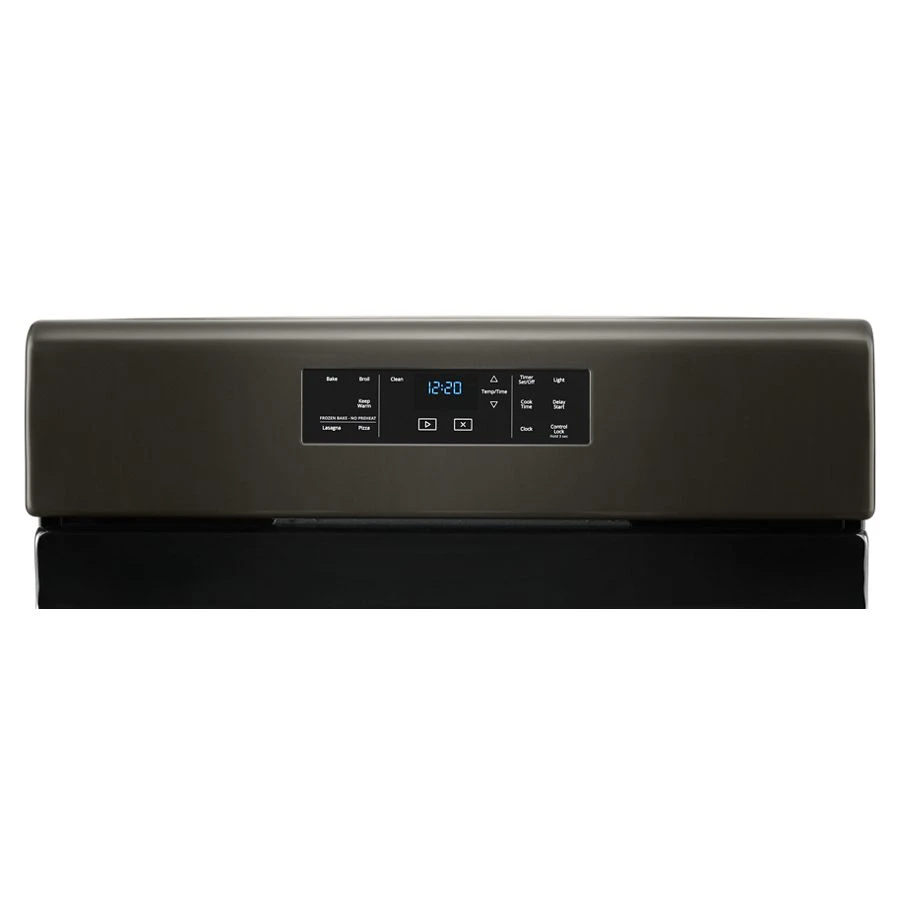

| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | No |
| Broiler Location | Top Center |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Black |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard (Both) |
| Broiler Element Power | 10,000 BTU |
Element/Burner Details
| Center Front Element-Burner Size | 4in. |
| Center Front Element-Burner Type | Oval Burner |
| Cooktop Element Style | Sealed Burners |
| Left Front Element-Burner Size | 4in. |
| Left Front Element-Burner Type | Power |
| Left Rear Element-Burner Size | 4in. |
| Left Rear Element-Burner Type | Standard |
| Number of Cooking Element-Burners | 5 |
| Number of Grates | 3 |
| Right Front Element-Burner Size | 4in. |
| Right Front Element-Burner Type | Power |
| Right Rear Element-Burner Size | 4in. |
| Right Rear Element-Burner Type | Simmer |
| Center Front Element-Burner Power | 8,000 BTU |
| Left Front Element-Burner Power | 15,000 BTU |
| Left Rear Element-Burner Power | 9,500 BTU |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Rear Element-Burner Power | 5,000 BTU |
Details
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Oven Automatic Shut-Off | No |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | Yes |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
Controls
| Display Color | Blue |
| Electronic Display Type | LED |
Grate Details
| Grate Details | Continuous, Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates |
| Number of Grates | 3 |
Electrical
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
| Volts | 120 |
Certifications
| ADA Compliant | No |
| CUL | No |
| UL | No |

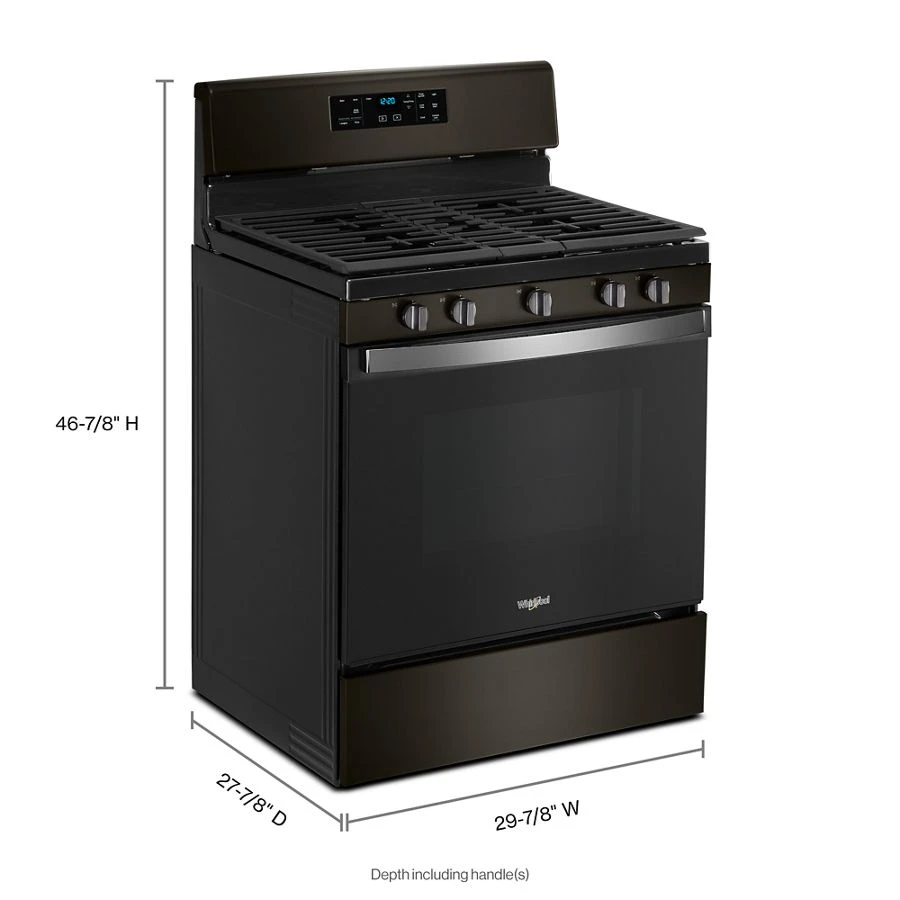

Dimensions & Weight
| Width | 29.88 in. |
| Height | 47.88 in. |
| Length | 27.88 in. |
| Weight | 189 lbs. |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30 in |
| Depth Closed Including Handles | 28 in |
| Gross Weight | 189 lbs |
| Net Weight | 173 lbs |
| Depth Closed Excluding Handles | 25.438 in |
| Depth With Door Open 90 Degree | 46.563 in |
| Maximum Height | 47.875 in |
| Minimum Height | 46.875 in |
| Oven Interior Depth | 18.5 in |
| Oven Interior Height | 18.875 in |
| Oven Interior Width | 24.5 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52.88 in. |
| Shipping Length | 32.88 in. |
| Shipping Weight | 229 lbs. |
| Total of Shipping Weight | 229 lbs. |
| Source | Calculation |
Other
| Capacity | 5 cu. ft. |
| Common Size | 30 in |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.9 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.9 lbs. |
