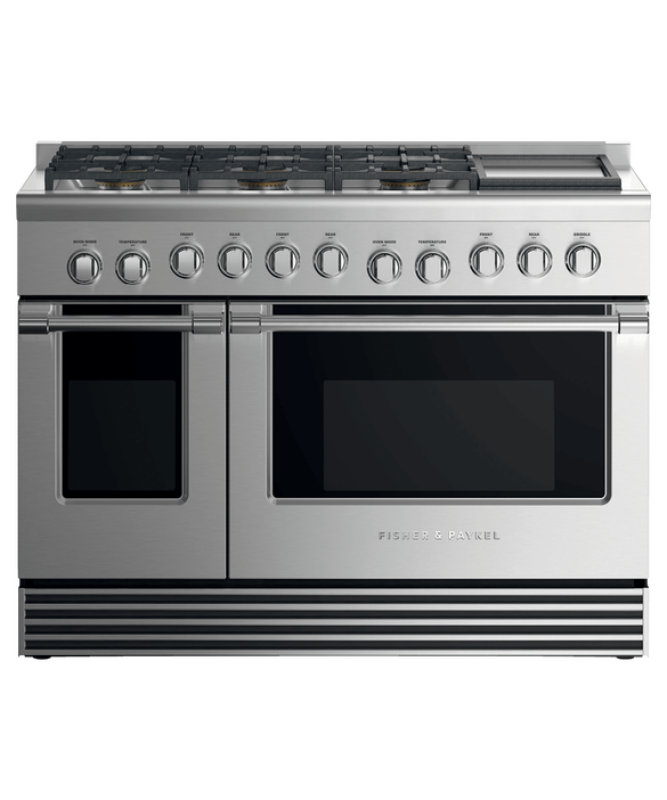

48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG - RGV2486GDLN

Fisher PaykelFisher Paykel brand logo

48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG

Model: RGV2486GDLN

48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG RGV2486GDLN48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG RGV2486GDLN
48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG RGV2486GDLN
48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG RGV2486GDLN
rebate iconRebate Available

Color : Stainless Steel

48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG RGV2486GDLN
Stainless Steel

Current Rebates

Fisher And Paykel 15% And Warranty Extension Rebate
Expires: December 31, 2026

Key Features

  • Cooktop power

  • Total control

  • Easy to clean

  • Instant visibility

  • Cooking flexibility

  • Design quality

Description

A striking addition to your kitchen, with six powerful gas burners and two gas ovens giving you a combined capacity of 7.7 cu ft.

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

Cooktop power

Total control

Easy to clean

Instant visibility

Cooking flexibility

Design quality

Specifications

Main oven features

Capacity usable (AHAM)3.9 cu ft
Capacity total (AHAM)5.3 cu ft
Full extension telescopic racks3
Shelf positions5

Gas requirements

Fitting and pipe½ NPT, min. ⅝" Ø flex line
Supply Pressure (natural gas)6" to 9" W.C

Main oven functions

Number of main oven functions3

Oven performance

Main oven - Bake power28,000 BTU
Main oven - Broil power19,000 BTU
Secondary oven - Bake power18,000 BTU
BakeYes
Main oven - Bake power22,000 BTU
Secondary oven - Bake power18,500 BTU
Bake28000 BTU

Power requirements

Supply frequency60Hz
Supply voltage120V
Amperage15A
Rated current15A

Rangetop features

Sealed Dual Flow Burners™6
Simmer on all burners140°F
Vent trim includedFlat vent trim
Vent trim includedYes
Sealed range topYes

Rangetop Performance

Max burner power23,500 BTU
Power back centre18,500 BTU
Power back left18,500 BTU
Power back right18,500 BTU
Power front centre18,500 BTU
Power front left23,500 BTU
Power front right18,500 BTU
Power griddle16,500 BTU
Total cooktop power132,500 BTU
Max burner power19,000 BTU
Power back centre13,000 BTU
Power back left13,000 BTU
Power back right13,000 BTU
Power front centre15,000 BTU
Power front left19,000 BTU
Total cooktop power103,000 BTU
Power front right15,000 BTU
Power griddle15,000 BTU

Recommended back guards and ventilation

Combustible situationBGRV2-3048H
Non combustible situationBGRV2-3048 / BGRV2-1248
Recommended hoodHCB48-12_N (48" Professional Range Hood, Dual Blower)
Minimum CFM1,200

Secondary oven features

Capacity total (AHAM)2.4 cu ft
Capacity usable (AHAM)1.7 cu ft
3/4 Extension racks2
Shelf positions5
Electronic oven controlYes
Internal lightYes

Warranty

Parts and laborLimited 2 years
Parts2 Year
Labor2 Year

Secondary oven functions

Number of secondary oven functions2
BakeYes
ProofYes

Capacity

Capacity total (AHAM)5.3cu ft
Capacity usable (AHAM)3.9cu ft
Shelf positions5

Controls

Metal illuminated dialsYes
Electric circuit3 wire

Gas Requirements

Fitting and pipe½ NPT, min. ⅝" ∅ flex line
Supply Pressure (LPG)11" to 14" W.C

Cleaning

Dishwasher proof trivetsYes

Installation Dimensions

Height (excluding vent trim)35 3/4 - 36 3/4"

Oven features

Full extension telescopic sliding shelvesYes

Recommended Back Guards Ventilation

Combustible situationBGRV2-3048H
Non combustible situationBGRV2-3048 / BGRV2-1248
Minimum CFM1200
Recommended hoodHCB48-12_N (48"" Professional Range Hood, Dual Blower)

Safety

Full extension telescopic sliding shelvesYes

Other

Supply Pressure (natural gas)6" to 9" W.C
Fitting and pipe½ NPT, min. ⅝" Ø flex line
Capacity total (AHAM)5.3 cu ft
Capacity usable (AHAM)3.9 cu ft
Full extension telescopic racks3
Shelf positions5
Main oven - Bake power28,000 BTU
Main oven - Broil power19,000 BTU
Secondary oven - Bake power18,000 BTU
Amperage15A
Supply frequency60Hz
Supply voltage120V
Sealed Dual Flow Burners™6
Simmer on all burners140°F
Vent trim includedFlat vent trim
Max burner power23,500 BTU
Power back centre18,500 BTU
Power griddle16,500 BTU
Total cooktop power132,500 BTU
Combustible situationBGRV2-3048H
Minimum CFM1,200
Non combustible situationBGRV2-3048 / BGRV2-1248
Recommended hoodHCB48-12_N (48" Professional Range Hood, Dual Blower)
3/4 Extension racks2
Capacity total (AHAM)2.4 cu ft
Capacity usable (AHAM)1.7 cu ft
Parts and laborLimited 2 years

Dimensions & Weight

Width47.88 in.
Height44 in.
Length29.13 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width52.88 in.
Shipping Height49 in.
Shipping Length34.13 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement35.5 ft³
Dimensional Weight441.38 lbs.
Total of Cubes35.5 ft³
Total of Dimensional Weight441.38 lbs.
