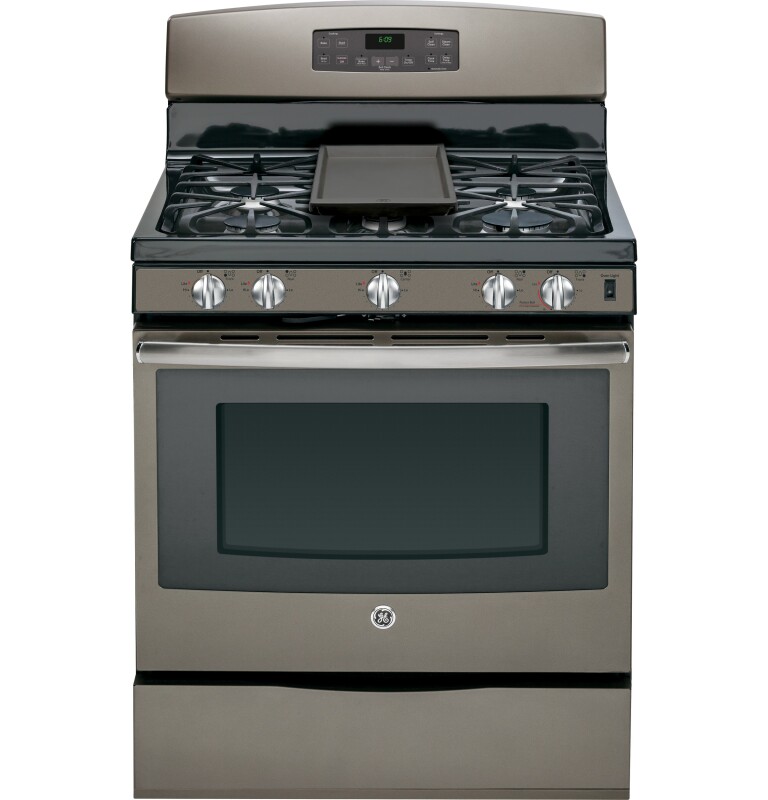

30" Free-Standing Gas Convection Range - JGB697EEHES
30" Free-Standing Gas Convection Range
Model: JGB697EEHES
Product Video
30" Free-Standing Gas Convection Range
Model: JGB697EEHES
Color : Slate
Key Features
17,000 BTU Power Boil burner
Center oval burner
Precise Simmer burner
Non-stick griddle
Self-clean with Steam Clean option
Gas convection oven
Heavy-cast, continuous grates
5.0 cu. ft. oven capacity
Description
Available from Drimmers Appliances, serving customers throughout Florida.
Features

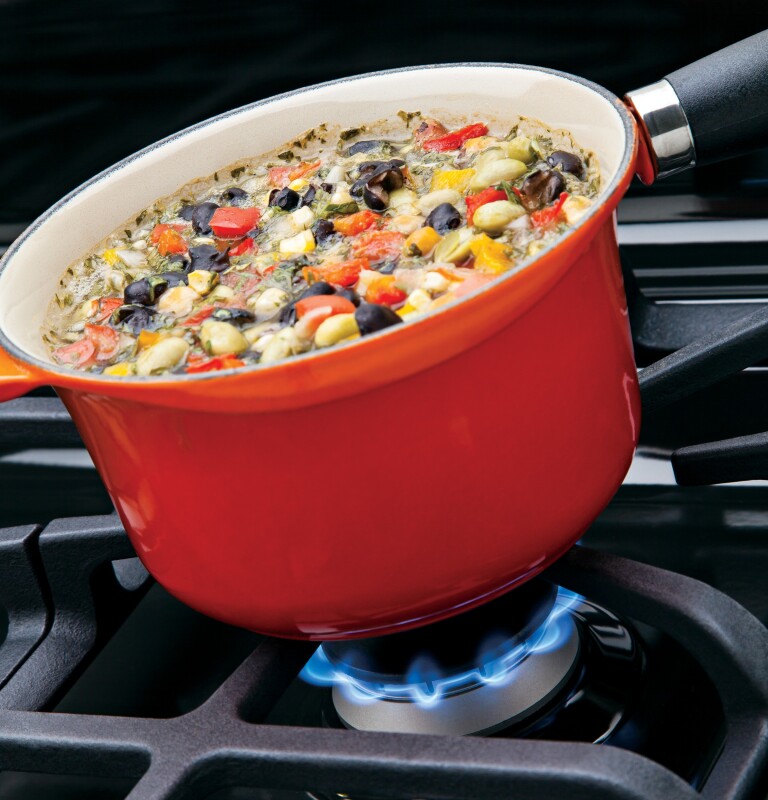

17,000 BTU Power Boil burner
Delivers intense heat for fast boiling

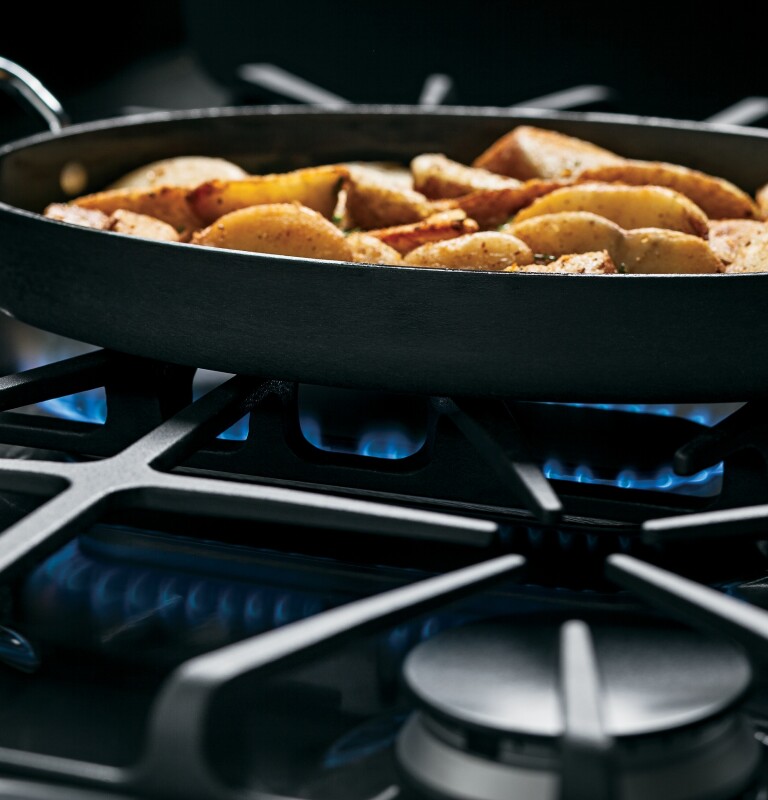

Center oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware

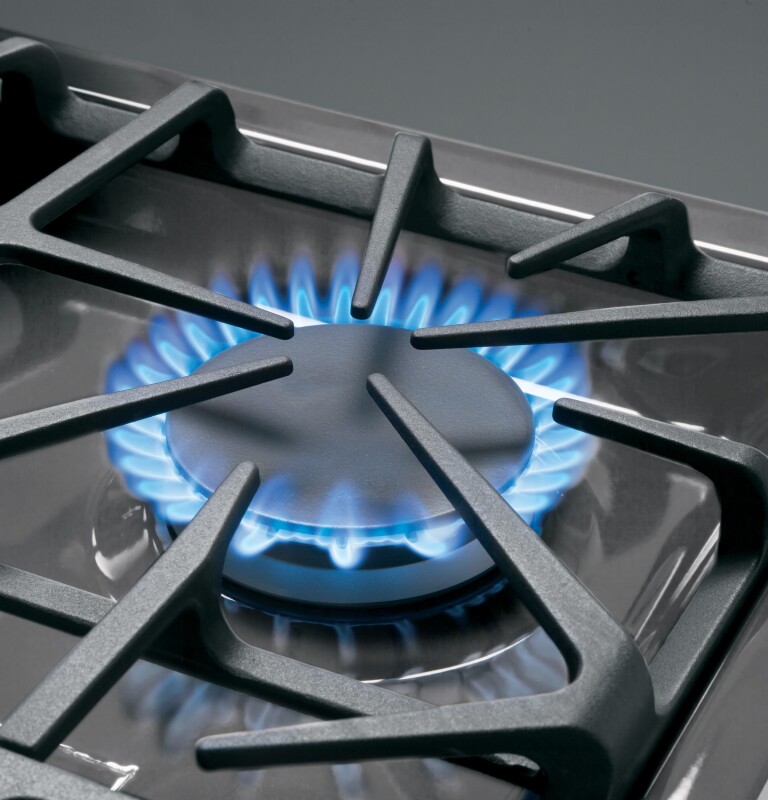

Precise Simmer burner
Delicate foods don’t burn with low, even heat

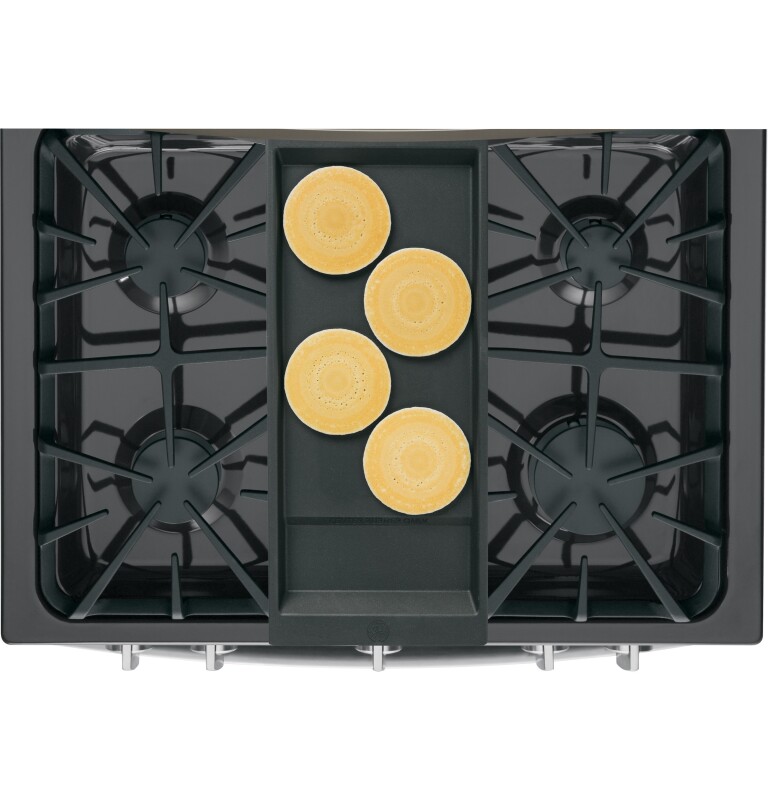

Non-stick griddle
Large non-stick surface perfect for griddle cooking

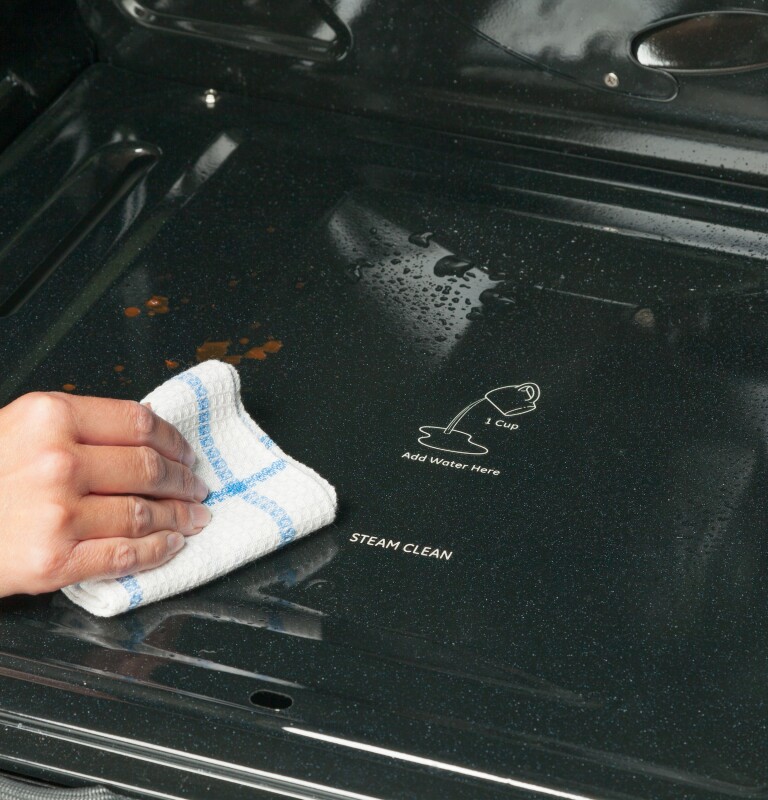

Self-clean with Steam Clean option
Clean your oven the way you want

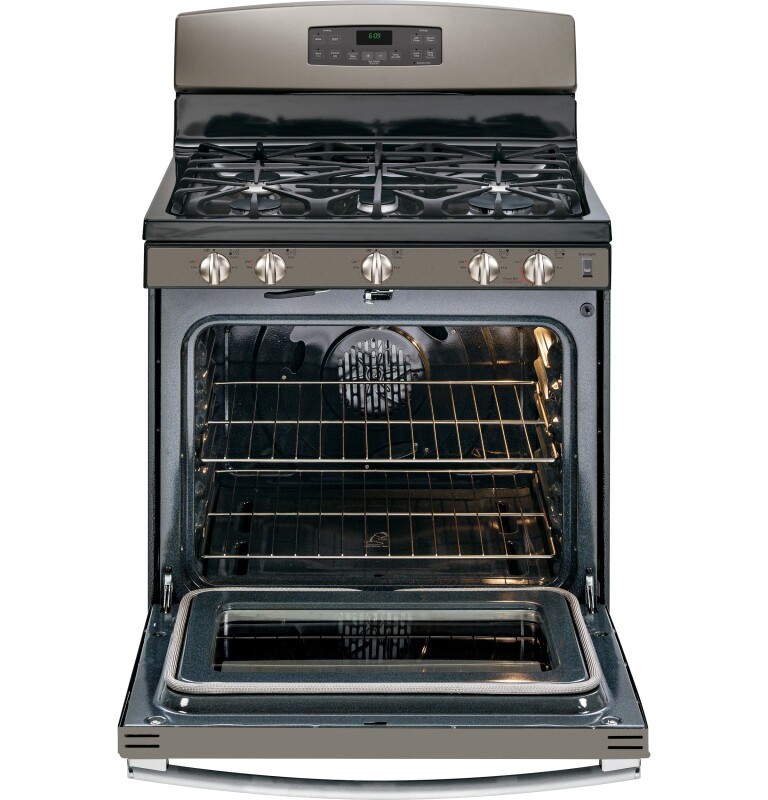

Gas convection oven
Circulates heat for high-quality results

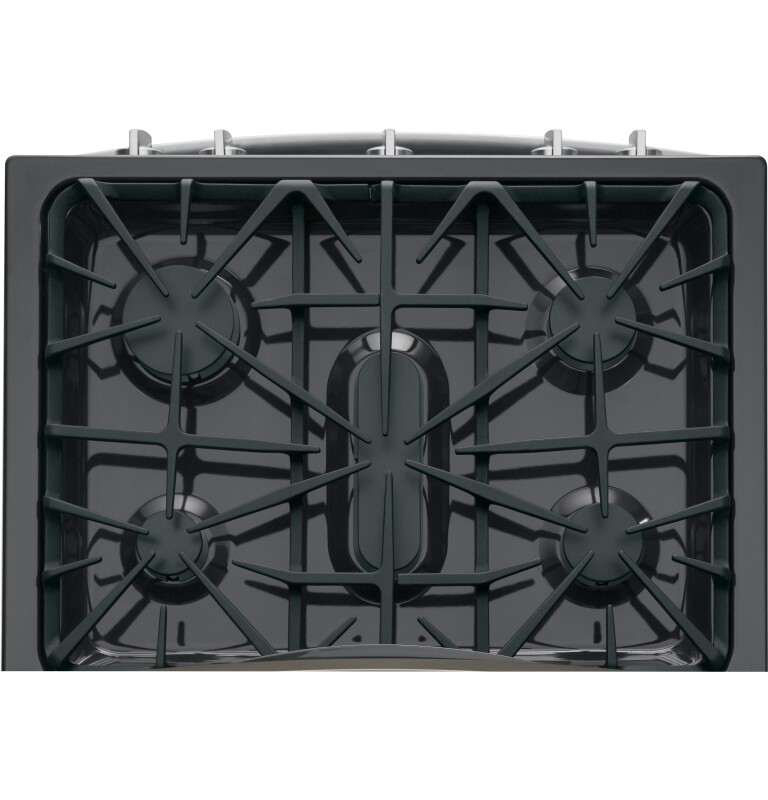

Heavy-cast, continuous grates
Allow for easy movement of pans between burners

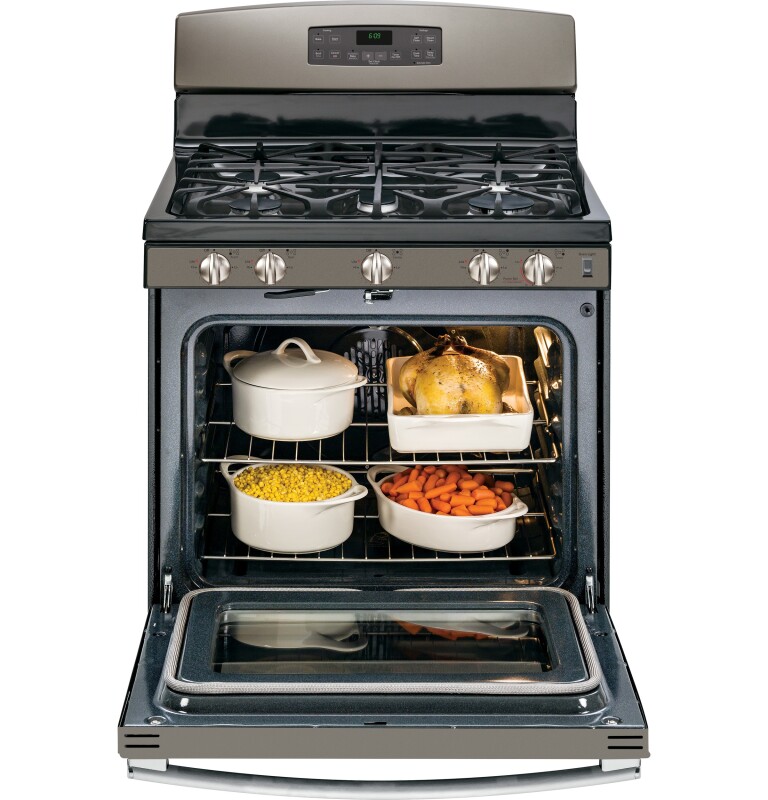

5.0 cu. ft. oven capacity
Cook more dishes at once
Black gloss oven interior
Enjoy a clean and sleek appearance
Certifications
California Prop 65
Specifications

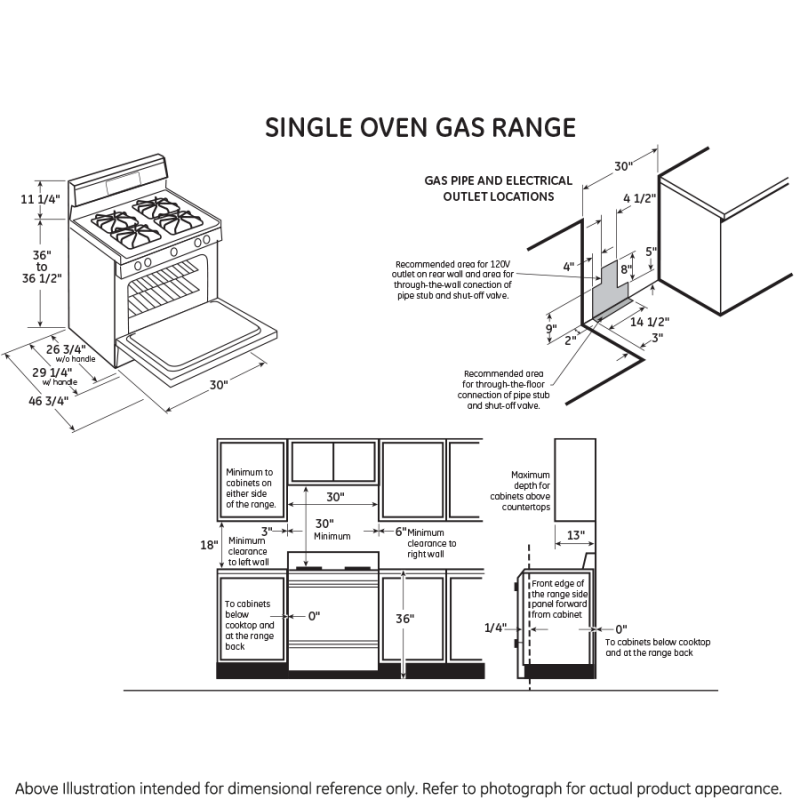

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Stainless Steel |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Stainless Steel Appearance |
| Color Appearance | Fingerprint Resistant Slate |
| Handle | Designer Style |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Non-Stick |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 8,000 BTU Oval |
| Interior Oven Light | 1 Auto Incandescent |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 11,000 BTU |

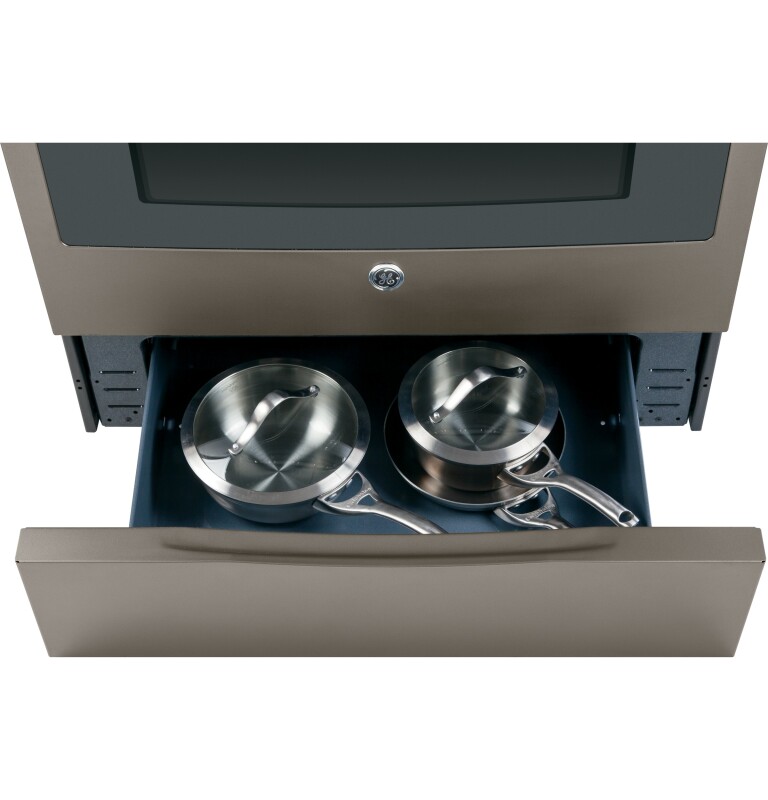

| Drawer Type | Storage |
| Cooking Technology | Convection |
| Configuration | Range with Storage Drawer |
| Oven Cooking Modes | Convection Bake |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 17,000 BTU Power Boil |
| Cooktop Surface | Gray |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Surface | Deep Recessed |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option |
| Oven Control Features | Audible Preheat Signal |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.5; (1) 5.0; (1) 6.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| LP Conversion Kit | Included |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
