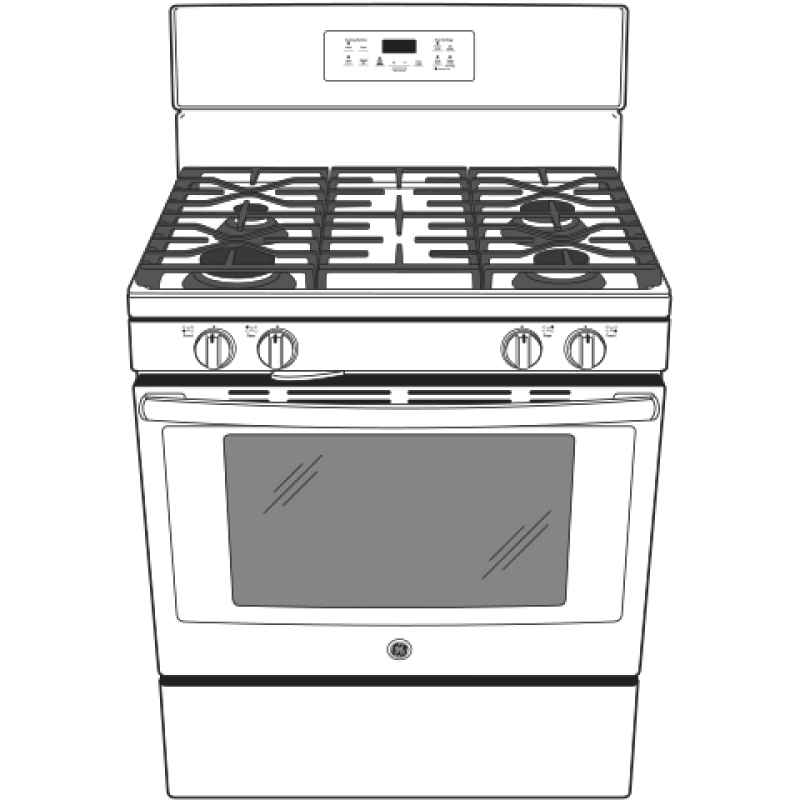

30" Free-Standing Gas Range - JGB645DEKWW
30" Free-Standing Gas Range
Model: JGB645DEKWW
Product Video
30" Free-Standing Gas Range
Model: JGB645DEKWW
Color : White
Key Features

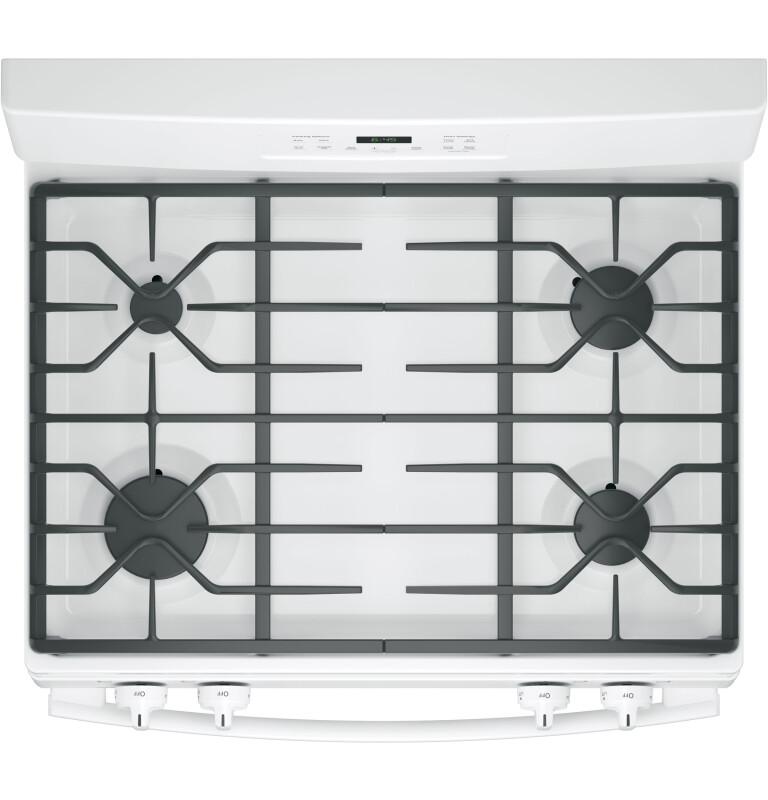

Two-piece continuous edge-to-edge cooktop
15,000 BTU Power Boil Burner
Precise Simmer burner
Self-clean oven
Heavy duty, dishwasher-safe grates
5.0 cu. ft. oven capacity
Deep-recessed cooktop
Spend Less Time Cleaning Up
Description
Available from Drimmers Appliances, serving customers throughout Florida.
Features
Two-piece continuous edge-to-edge cooktop
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

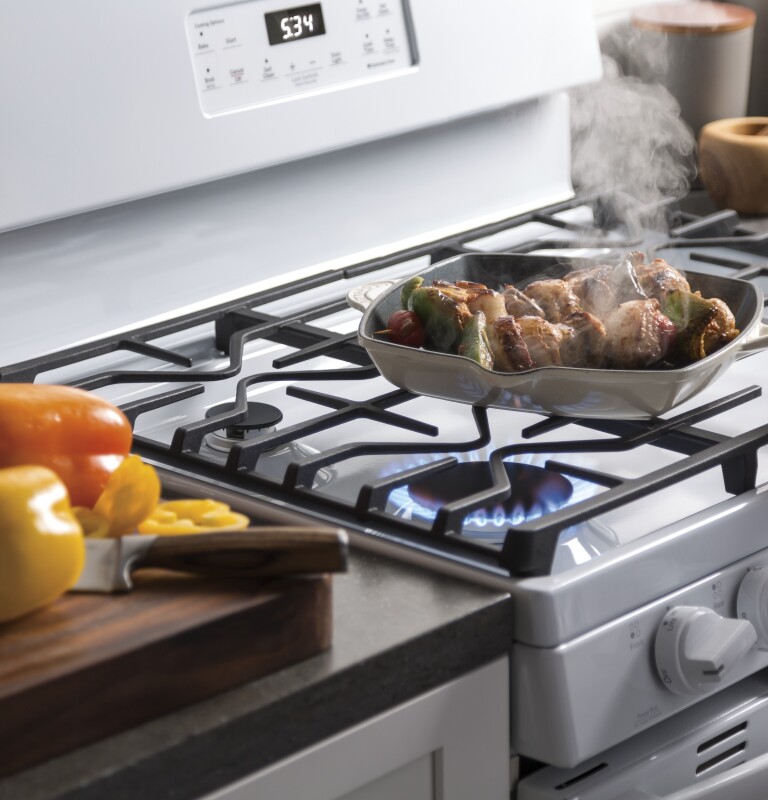

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

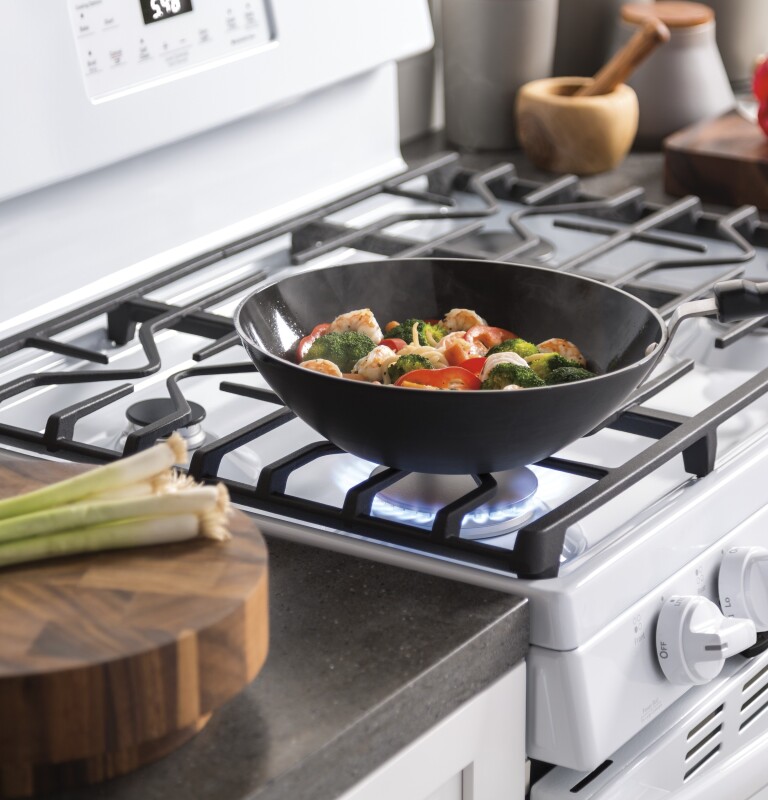

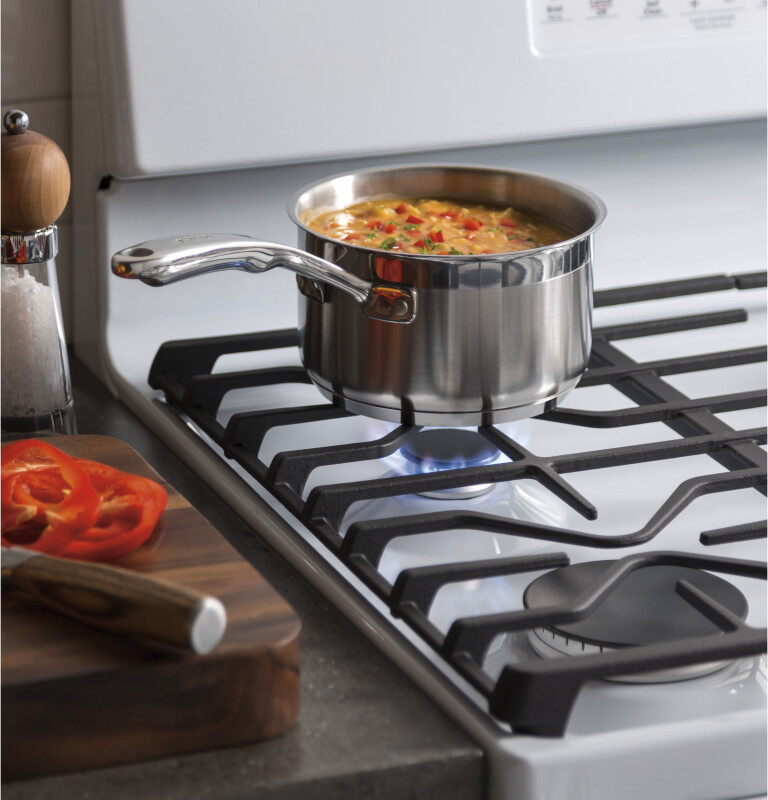

Precise Simmer burner
Delicate foods don’t burn with low, even heat

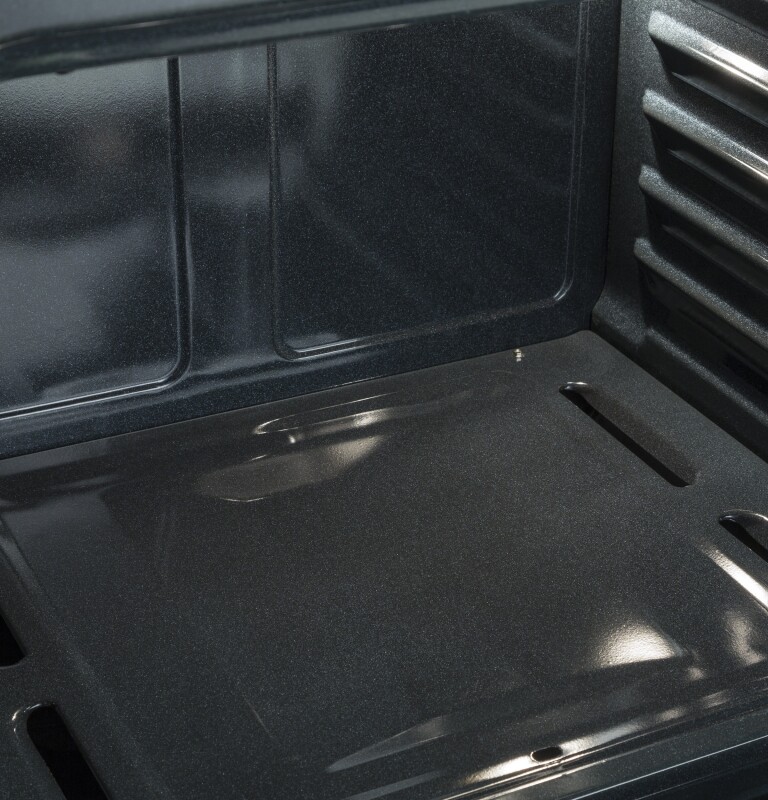

Self-clean oven
Cleans the oven cavity without the need for scrubbing

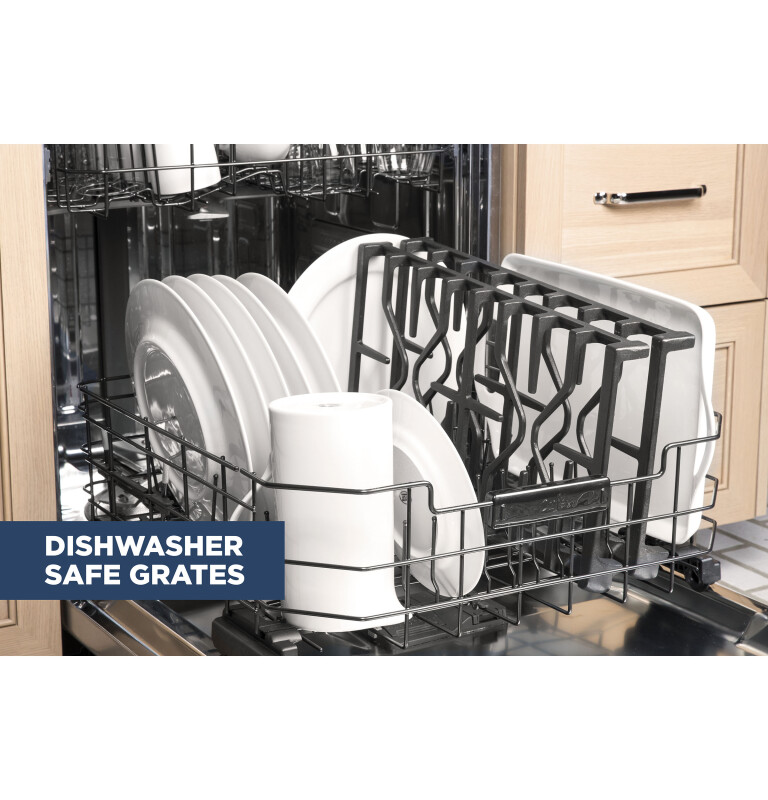

Heavy duty, dishwasher-safe grates
Easily and safely clean grates in the dishwasher

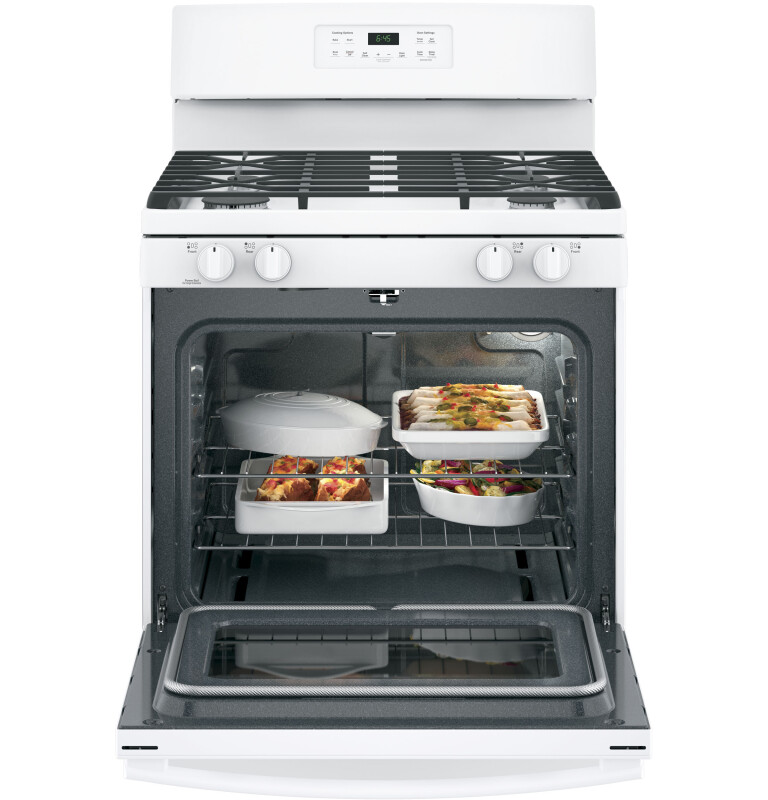

5.0 cu. ft. oven capacity
Cook more dishes at once
Deep-recessed cooktop
Contains spills for quick and easy cleaning
Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

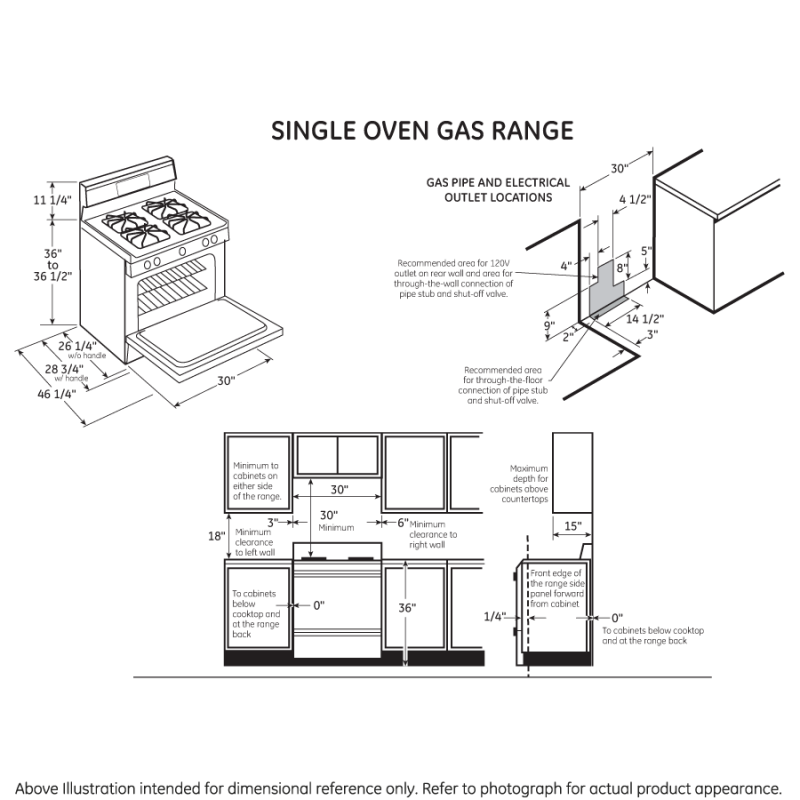

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Gloss White |
| Color Appearance | White |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |

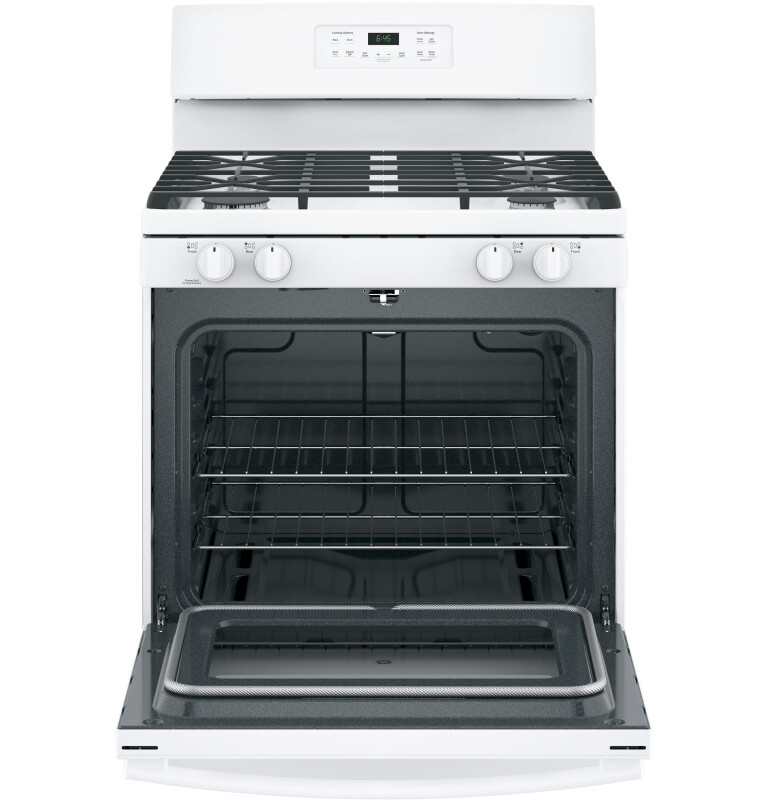

| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 15,000 BTU |
| Drawer Type | Storage |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | White |
| Cooktop Surface | Edge-to-Edge |
| Cooktop Surface | Porcelain-Enamel |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (1) 9.5; (1) 15.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| LP Conversion Kit | Included |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
