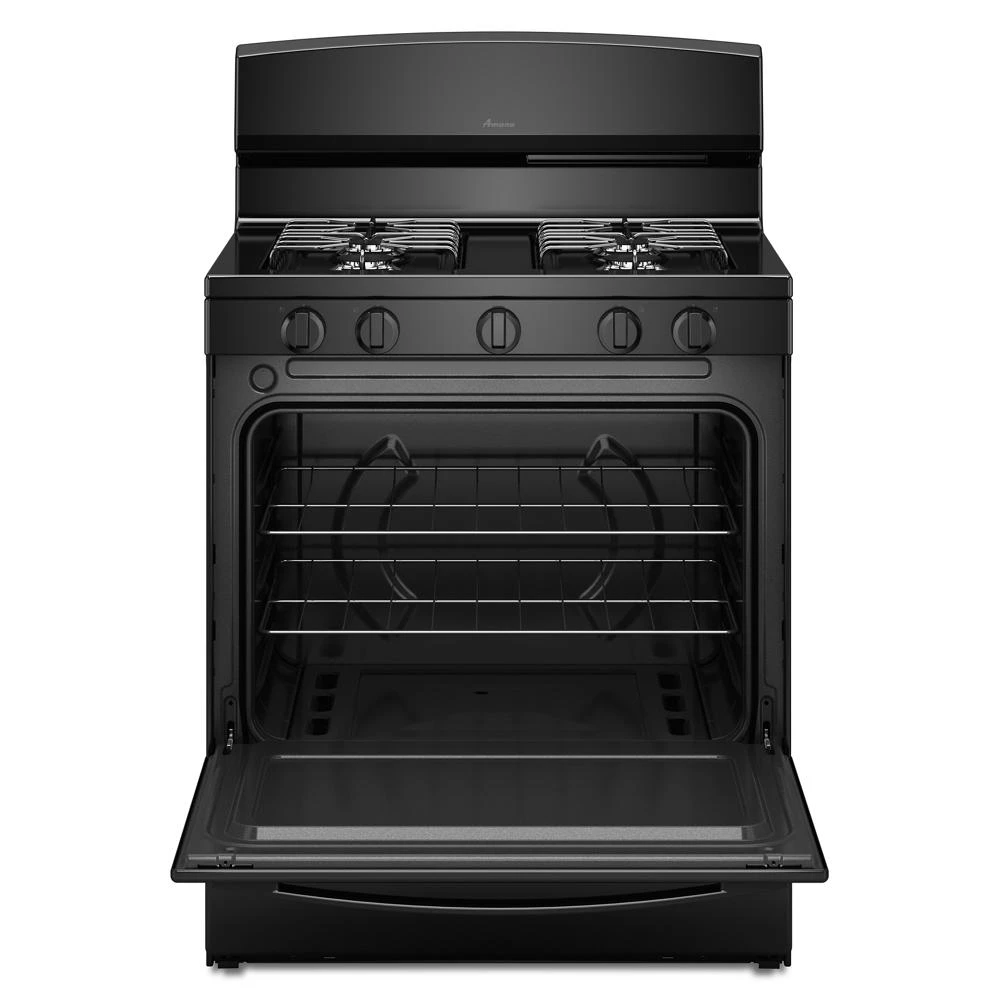

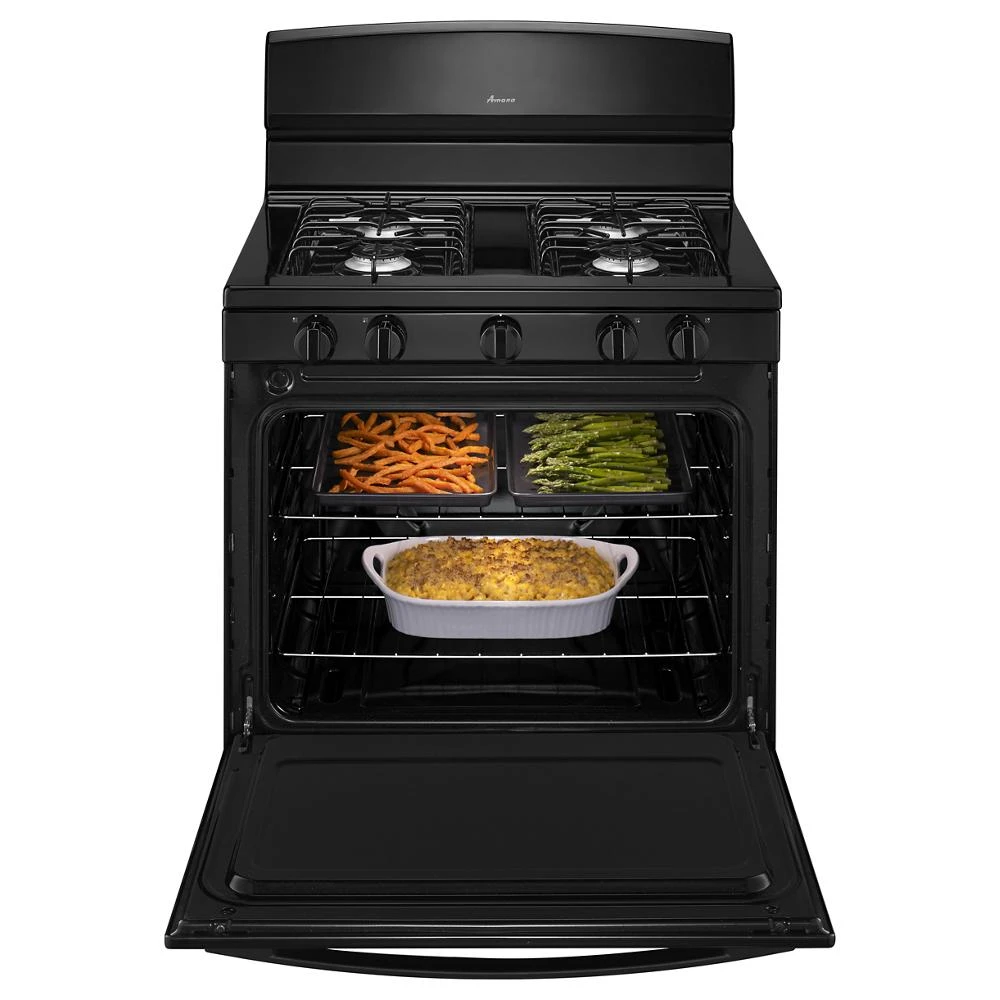

30-inch Gas Range with EasyAccess™ Broiler Door - AGR4230BAB
30-inch Gas Range with EasyAccess™ Broiler Door
Model: AGR4230BAB
30-inch Gas Range with EasyAccess™ Broiler Door
Model: AGR4230BAB
Color : Black
Key Features
Large Oven Capacity
Versatile Cooktop
Sealed Burners
EasyAccess™ Broiler Door
SpillSaver™ Upswept Cooktop
Temp Assure™ Cooking System
Available from Drimmers Appliances, serving customers throughout Florida.
Features
Large Oven Capacity
5.0 Cu. Ft. Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Versatile Cooktop
Our Versatile Cooktop features multiple burner options that provide up to 9,500 BTUs, helping you cook your favorites all at once.
Sealed Burners
Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
EasyAccess™ Broiler Door
The EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
SpillSaver™ Upswept Cooktop
Go ahead, spill the beans. The SpillSaver™ Upswept Cooktop comes with raised edges to keep spills contained and surfaces clean.
Temp Assure™ Cooking System
Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Specifications
Cooktop Details
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Ignition Type | Electronic |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
Certifications
| ADA Compliant | No |
| UL | Yes |
| prop65 | Standard |
Electrical
| Power Cord Included | Yes |
Other
| Capacity (Cu Ft) | 5.10 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.25 in. |
| Length | 27.2 in. |
| Weight | - |
| Carton Depth | 28 |
| Carton Height | 48 |
| Carton Width | 32 |
| Cutout Height (in) | 36.02 |
| Cutout Width (in) | 30 1/8 |
| Depth Closed Excluding Handles | 25 1/8 |
| Depth With Door Open 90 Degree | 45.21 |
| Gross Weight | 136 |
| Net Weight | 0.0 |
| Cutout Height(IN,inches) | 36.0000 |
| Cutout Width(IN,inches) | 30.1250 |
| Depth Closed Excluding Handles(IN,inches) | 25.1250 |
| Depth With Door Open 90 Degree(IN,inches) | 45.2100 |
| Carton Depth(IN,inches) | 28.0000 |
| Carton Height(IN,inches) | 48.0000 |
| Carton Width(IN,inches) | 32.0000 |
| Cutout Height Min(IN,inches) | 36.0200 |
| Gross Weight(LB,pounds) | 136 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 32.2 in. |
| Shipping Weight | 40 lbs. |
| Total of Shipping Weight | 40 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.75 ft³ |
| Dimensional Weight | 270.42 lbs. |
| Total of Cubes | 21.75 ft³ |
| Total of Dimensional Weight | 270.42 lbs. |
Details
| Automatic Convection Conversion Temperature Adjust | No |
| Fuel Type | Gas |
| LP Convertible | Yes |
| Oven Configuration | Single Oven |
| Power On Indicator Light | No |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Drawer Type | Broiler Drawer |
| Range Type | Freestanding |
Dimensions
| Cutout Height | 36 |
| Cutout Width | 30.125 |
| Depth Closed Excluding Handles | 25.125 |
| Depth With Door Open 90 Degree | 45.21 |
| carton depth | 28 |
| carton height | 48 |
| carton width | 32 |
| gross weight | 136 |
| net weight | 0 |
Element/Burner Details
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Power | 9, 500 BTU |
| Left Front Element-Burner Type | Sealed Burner |
| Left Rear Element-Burner Power | 9, 500 BTU |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Power | 9, 500 BTU |
| Right Front Element-Burner Type | Sealed Burner |
| Right Rear Element-Burner Power | 5, 000 BTU |
| Right Rear Element-Burner Type | Sealed Burner |
Exterior Details
| Door Type | Enameled Steel |
| Oven Control Location | Front |
| Oven Control Type | Knobs |
| Oven Window Size | None |
Grate Details
| Grate Details | Gloss Finish; Porcelain Coated Steel Grates |
| Number of Grates | 2 |
Oven Details
| Broiler Location | Drawer |
| Convection Element Type | None |
| Convection Functions | No |
| Hidden Bake Element | Yes |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Manual Clean |
| Oven Cooking System | Thermal |
| Oven Light Type | None |
| Oven Rack Type | Standard |
