24" Wide 230V 4-Burner Solid Disk Cooktop - CSD4B24

This product has been discontinued by the manufacture and is no longer available.

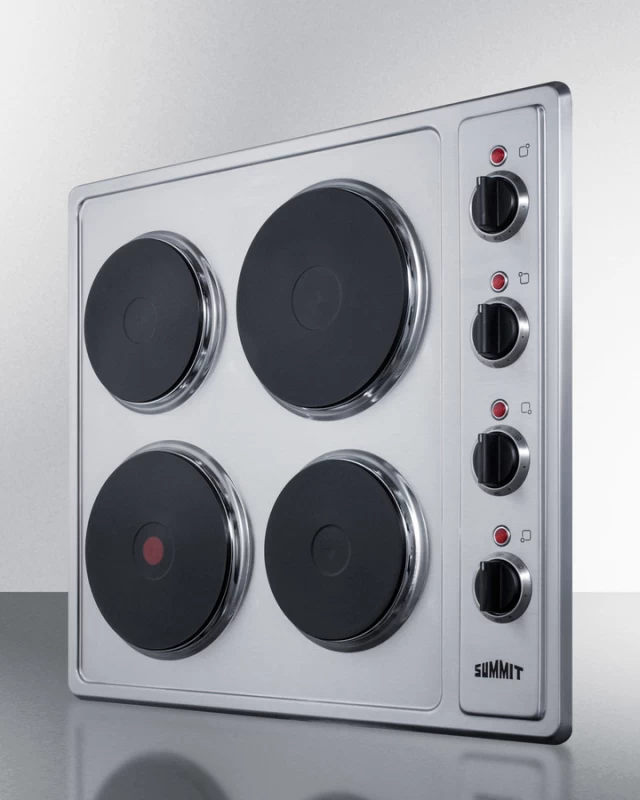

24" Wide 230V 4-Burner Solid Disk Cooktop

Model: CSD4B24

24" Wide 230V 4-Burner Solid Disk Cooktop CSD4B2424" Wide 230V 4-Burner Solid Disk Cooktop CSD4B24
24" Wide 230V 4-Burner Solid Disk Cooktop CSD4B24
24" Wide 230V 4-Burner Solid Disk Cooktop CSD4B24

Color : Stainless Steel

24" Wide 230V 4-Burner Solid Disk Cooktop CSD4B24
Stainless Steel

Key Features

  • Solid disk elements

  • Two 6" elements

  • Stainless steel finish

  • Durable cast iron design

  • Easier cleanup

  • Push-to-turn controls

  • Indicator lights

  • Two 8" elements

Read More

Description

Summit's selection of electric cooktops offers the perfect fit for every application. Sized at 24" wide, the CSD4B24 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware. The rear 1500W 8" element also accommodates full-sized pots and pans, while two 1000W 6" heating elements meet most general heating needs. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety. With its modern style and durable design, the CSD4B24 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 2-burner version, see the CSD2B230.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

Solid disk elements

Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience

Two 6" elements

1000W elements accommodate most lighter cooking needs

Stainless steel finish

Surface is made from stainless steel for an attractive and easy to clean look

Durable cast iron design

Solid metal elements hold up to heavy duty use

Easier cleanup

Fully sealed cast iron elements offer easier cleanup than traditional coil elements

Push-to-turn controls

Knobs require a small amount of force to help prevent accidents

Indicator lights

Operating indicators light up to show which burner is in use

Two 8" elements

Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans

Designed for built-in installation

Fits counter cutout sizes that are 22" W x 19 3/4" D

230V operation

Professional installation required

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width22.75 in.
Height4.13 in.
Length20.38 in.
Weight14 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.11 ft³
Dimensional Weight13.78 lbs.
Total of Cubes1.11 ft³
Total of Dimensional Weight13.78 lbs.

Overview Electric Cooktop

Nominal Height4.13" (10 cm)
Height of Cabinet4.13" (10 cm)
Nominal Width23.0" (58 cm)
Width22.75" (58 cm)
Nominal Depth21.0" (53 cm)
Depth20.38" (52 cm)
CabinetStainless Steel
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps23.0
Voltage/Frequency230 V AC/60 Hz
Weight14.0 lbs. (6 kg)
Parts & Labor Warranty1 Year
UPC761101056340
Heating TypeRadiant
SurfaceStainless Steel
Element TypeCast Iron
Number of Elements4
ControlsDial
Countertop Cutout Height5.0" (13 cm)
Countertop Cutout Width22.0" (56 cm)
Countertop Cutout Depth19.75" (50 cm)
Power Source230V
Element #1 Size8.0" (20 cm)
Element #1 Wattage2000.0
Element #2 Size6.0" (15 cm)
Element #2 Wattage1000.0
Element #3 Size8.0" (20 cm)
Element #3 Wattage1500.0
Element #4 Size6.0" (15 cm)
Element #4 Wattage1000.0
Power Cord IncludedNo
