27" Wide 230V 5-Burner Radiant Cooktop - CR5B274W

This product has been discontinued by the manufacture and is no longer available.

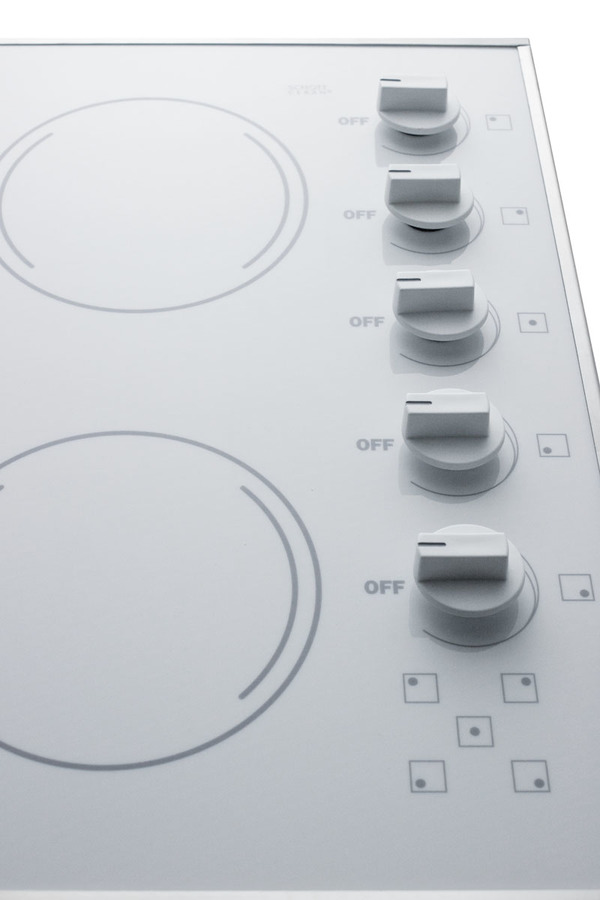

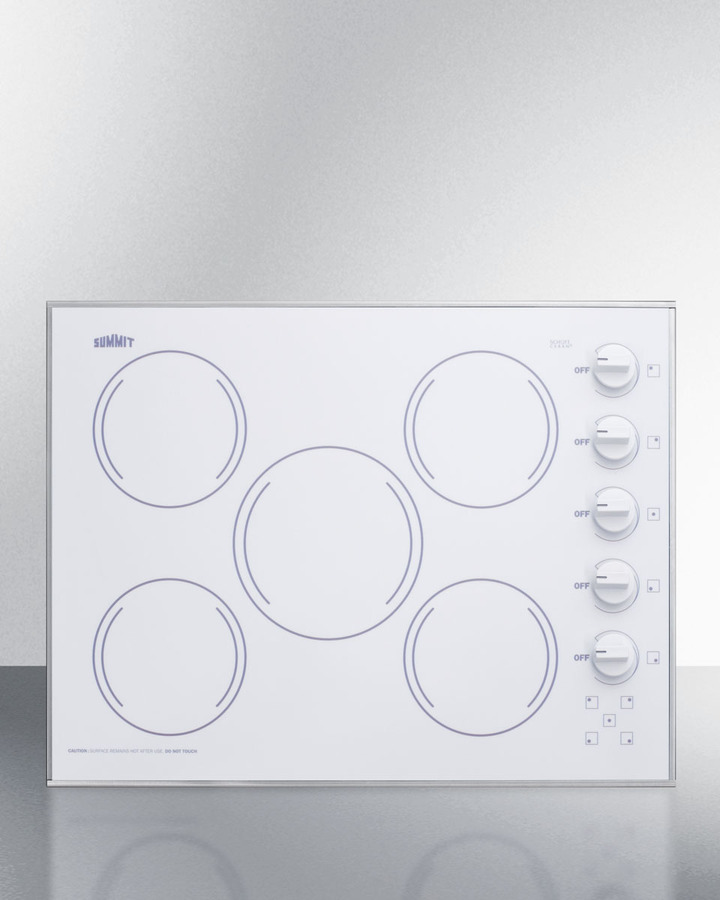

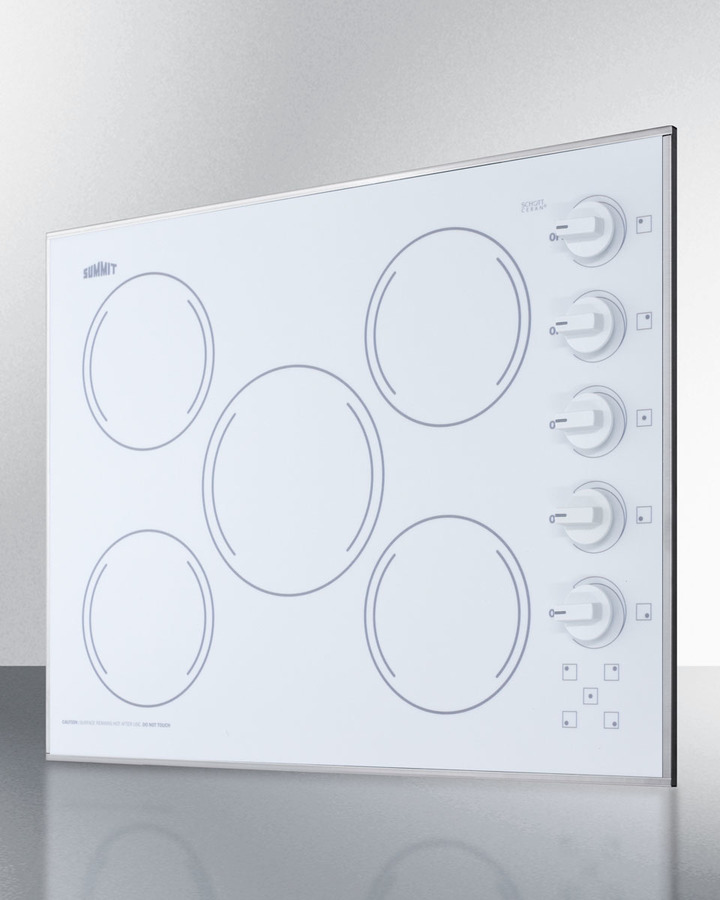

27" Wide 230V 5-Burner Radiant Cooktop

Model: CR5B274W

27" Wide 230V 5-Burner Radiant Cooktop CR5B274W27" Wide 230V 5-Burner Radiant Cooktop CR5B274W27" Wide 230V 5-Burner Radiant Cooktop CR5B274W
27" Wide 230V 5-Burner Radiant Cooktop CR5B274W
27" Wide 230V 5-Burner Radiant Cooktop CR5B274W
27" Wide 230V 5-Burner Radiant Cooktop CR5B274W

Color : White

27" Wide 230V 5-Burner Radiant Cooktop CR5B274W
White

Key Features

  • 27" width

  • Standard burners

  • Schott Ceran surface

  • High output burner

  • Indicator lights

  • Stainless steel trim

  • 230V operation

  • E.G.O. burners

Read More

Description

SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements. The CR5B274W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte white finish to complete the look. Each burner includes an indicator light. The smooth surface is made from ceramic Schott glass in a classic white finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304 grade stainless steel for added durability. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CR5B274W can fit in cutouts 25 1/4" W x 18 3/4" deep. Designed and manufactured in the USA, the CR5B274W is the perfect way to finish any small kitchen space. For this unit in a black glass finish, see the CR5B273B.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications

Features

27" width

Designed to fit 25.25" W x 18.75" D cutouts

Standard burners

Four 6.5" 1200W burners meet most heating needs

Schott Ceran surface

Smooth ceramic glass cooking surface in a classic white finish

High output burner

Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels

Indicator lights

Each burner includes an indicator light to show when the unit is on

Stainless steel trim

Stainless steel border adds an extra touch of style

230V operation

Requires professional hardwired installation to 230V power supply

E.G.O. burners

Considered by many to be the industry's best cooking technology

Push-to-turn knobs

Controls require a gentle push to help prevent cooking accidents

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width27 in.
Height3.13 in.
Length20.5 in.
Weight35 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1 ft³
Dimensional Weight12.46 lbs.
Total of Cubes1 ft³
Total of Dimensional Weight12.46 lbs.

Overview Electric Cooktop

Nominal Height3.13" (8 cm)
Height of Cabinet3.13" (8 cm)
Nominal Width27.0" (69 cm)
Width27.0" (69 cm)
Nominal Depth21.0" (53 cm)
Depth20.5" (52 cm)
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps25.0
Voltage/Frequency230 V AC/60 Hz
Weight35.0 lbs. (16 kg)
Parts & Labor Warranty1 Year
UPC761101060330
Heating TypeRadiant
SurfaceGlass
Element TypeGlasstop
Number of Elements5
ControlsDial
Countertop Cutout Width25.25" (64 cm)
Countertop Cutout Depth18.75" (48 cm)
Element #1 Size8.0" (20 cm)
Element #1 Wattage1800.0
Element #2 Size6.5" (17 cm)
Element #2 Wattage1200.0
Element #3 Size6.5" (17 cm)
Element #3 Wattage1200.0
Element #4 Size6.5" (17 cm)
Element #4 Wattage1200.0
Element #5 Size6.5" (17 cm)
Element #5 Wattage1200.0
Power Cord IncludedNo
