$1,130.00

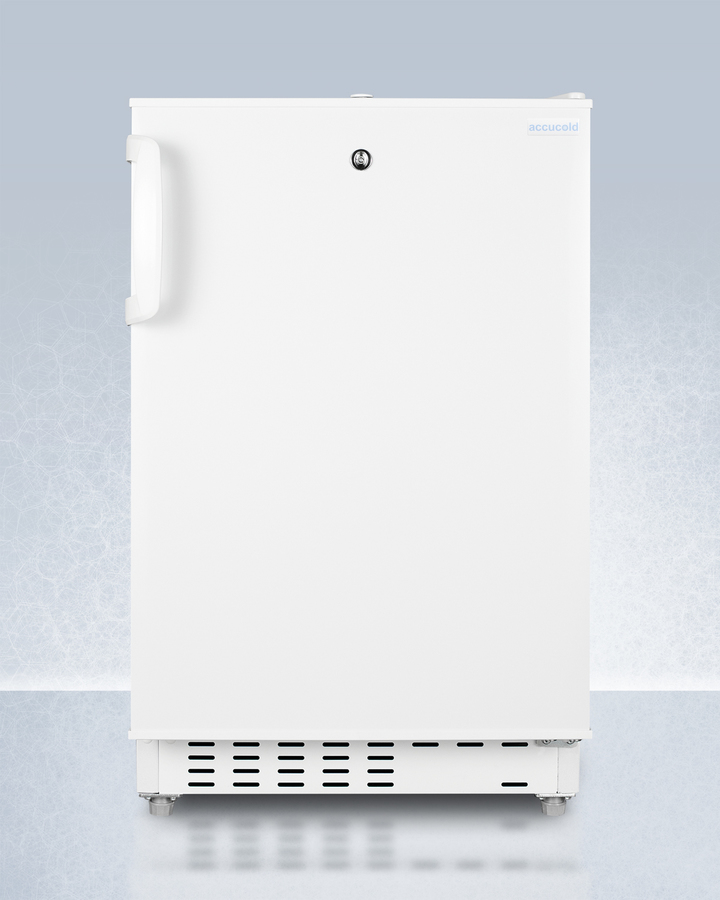

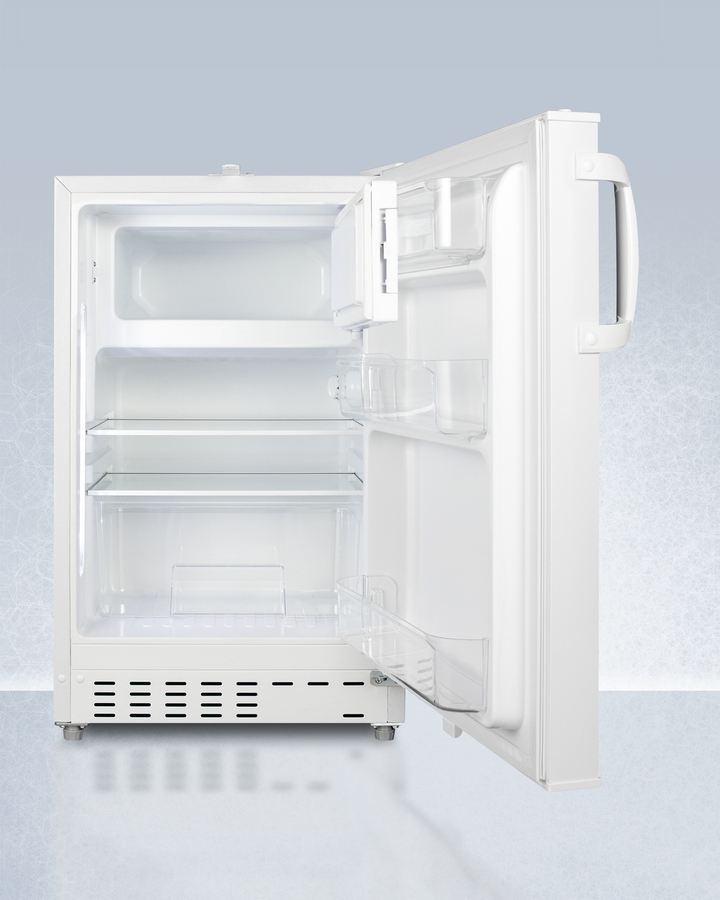

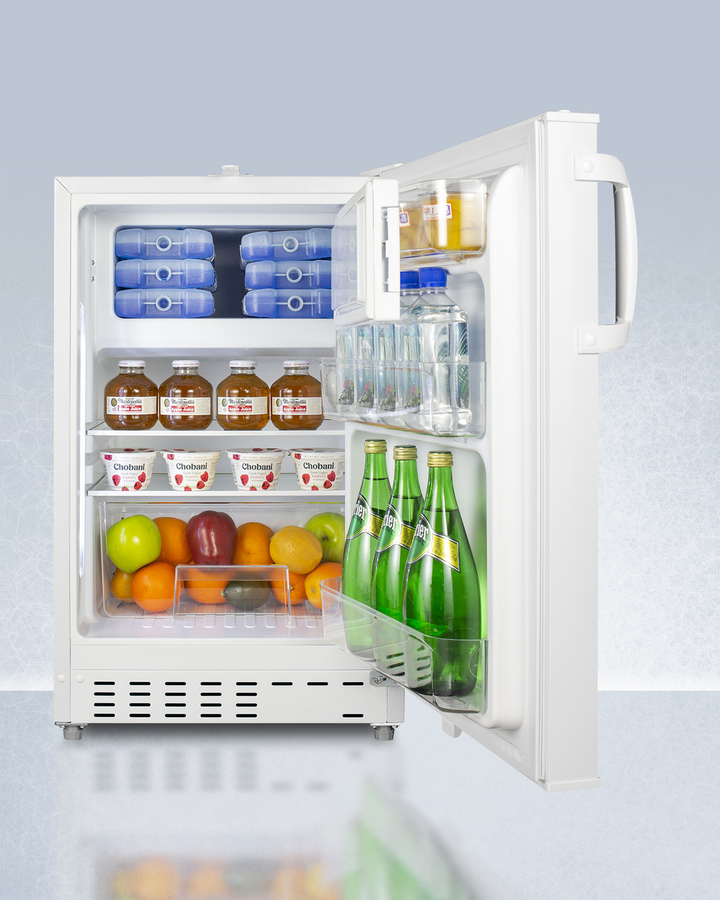

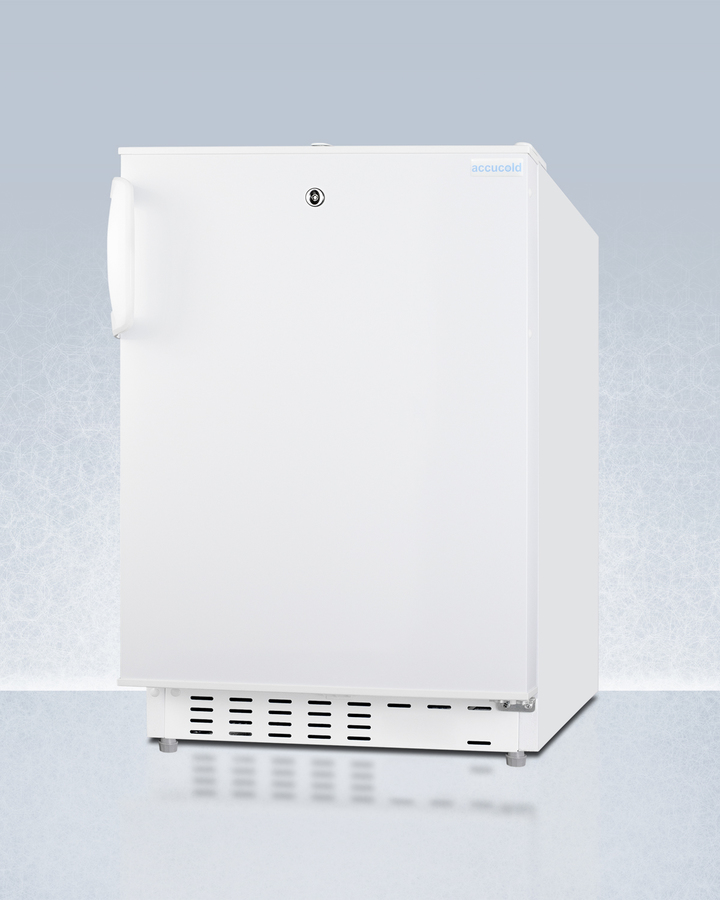

20" Wide Built-in Refrigerator-Freezer, ADA Compliant - ADA302RFZ
$1,130.00
Key Features
Freezer compartment
ADA compliant design
Factory-installed lock
3" thick door
Built-in capable
Adjustable glass shelves
Manual defrost
Sealed back
Description
Available from Drimmers Appliances, serving customers throughout Florida.
Features

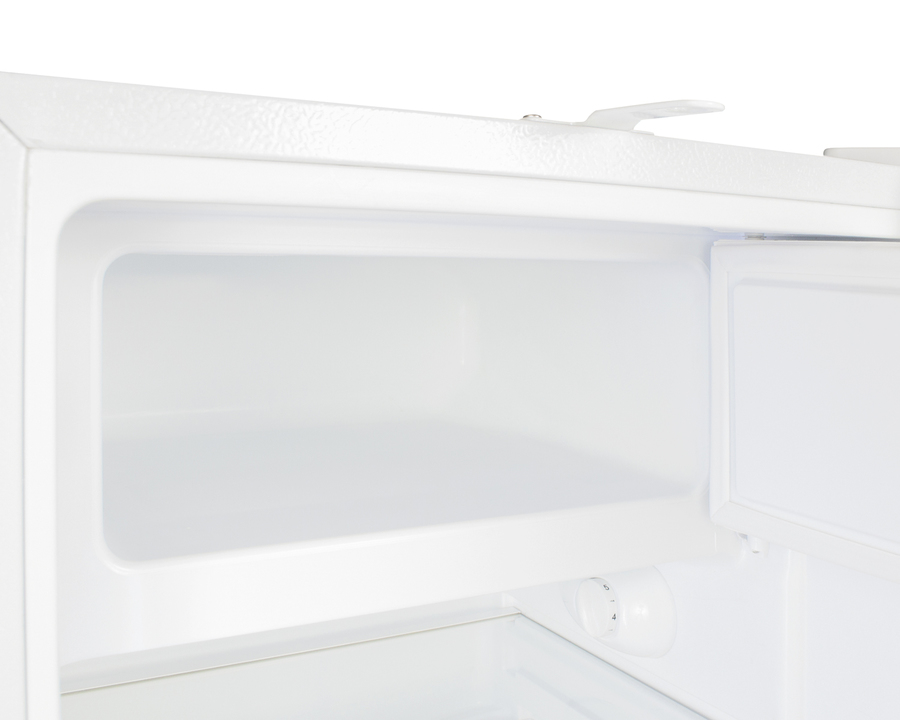

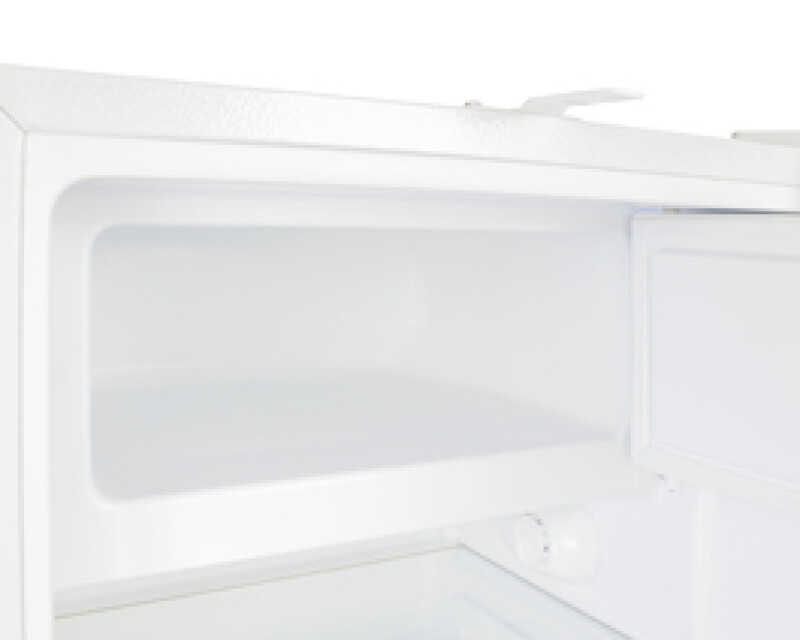

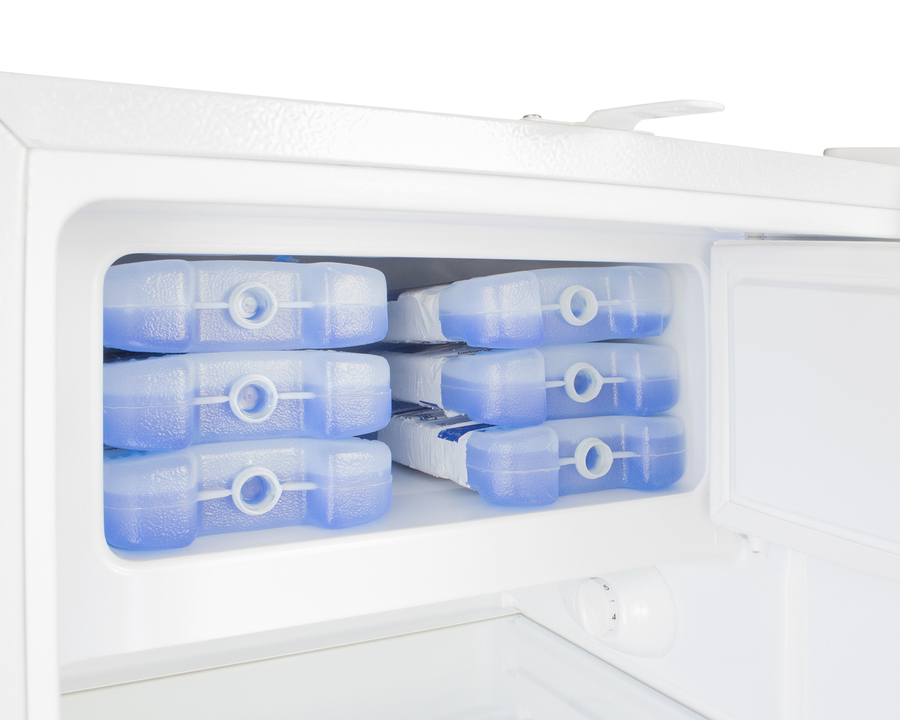

Freezer compartment
Interior freezer compartment offers convenient storage of ice cube trays, ice packs, and other healthcare supplies
ADA compliant design
32" height allows easy installation under lower ADA compliant counters

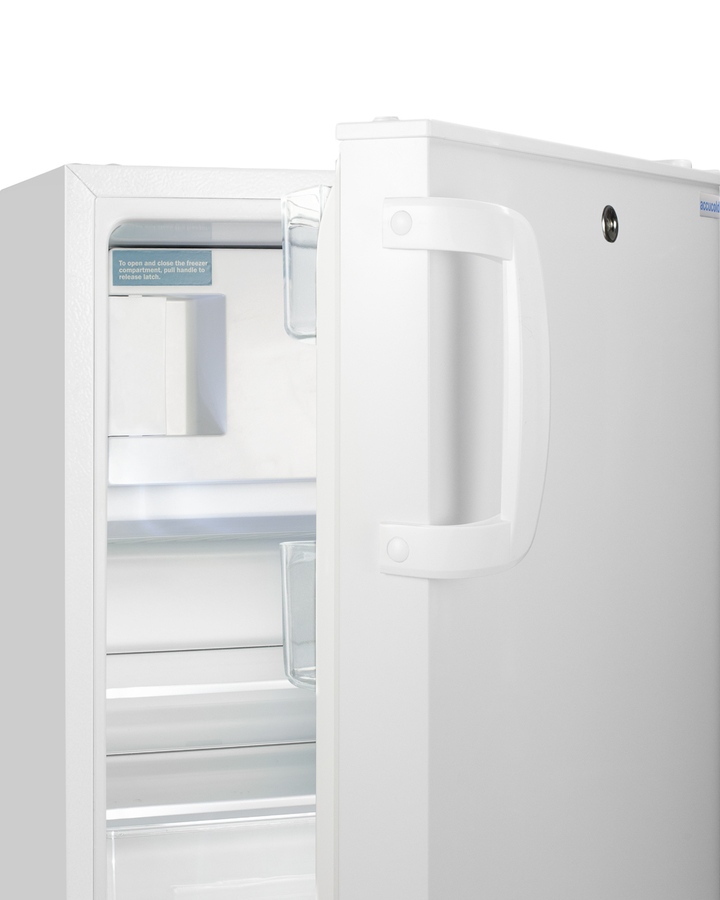

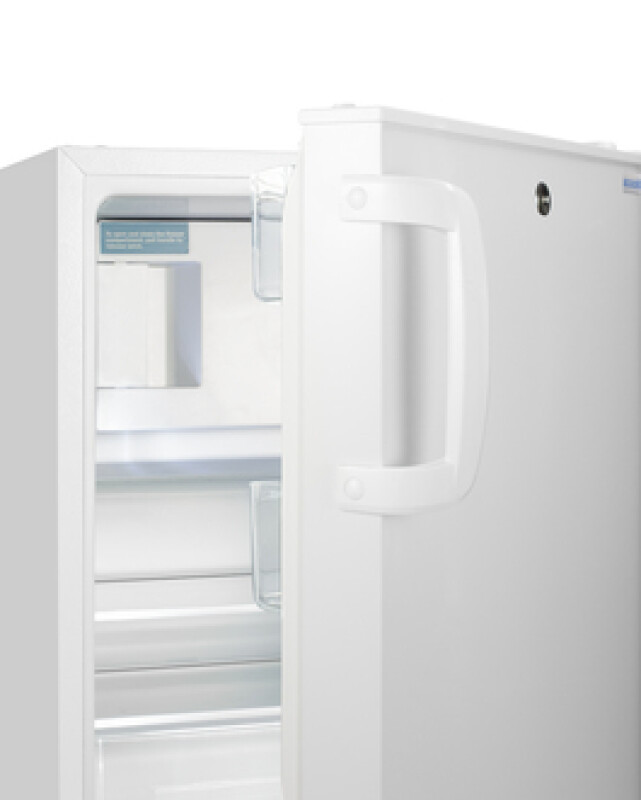

Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

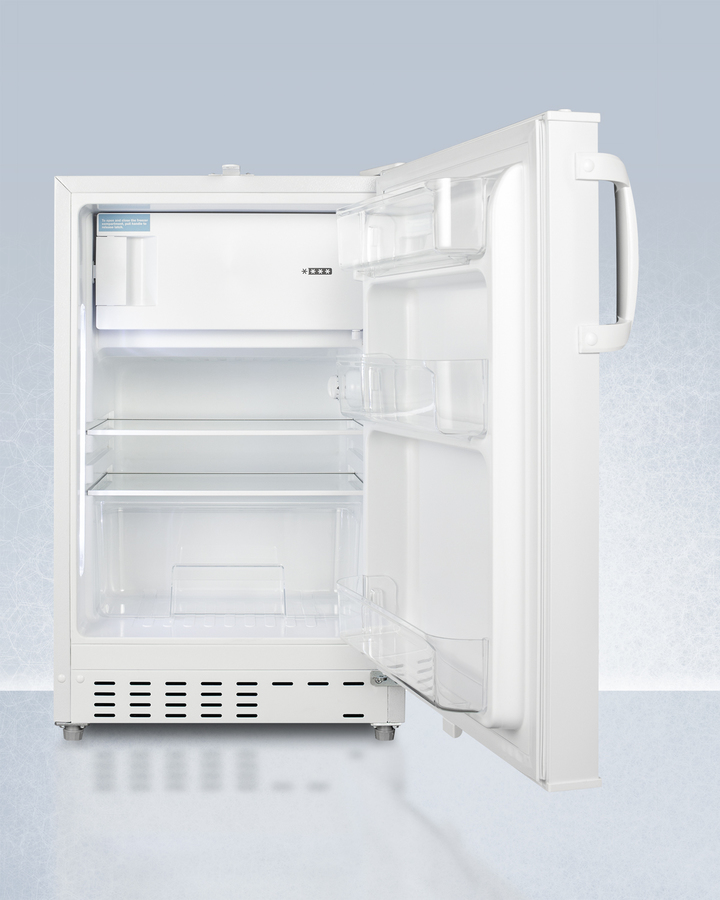

Adjustable glass shelves
Three adjustable spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
Manual defrost
Static cooling system for added efficiency
Sealed back
Space-saving design that offers easier cleanability
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Slide-out drawer
Removable clear crisper drawer

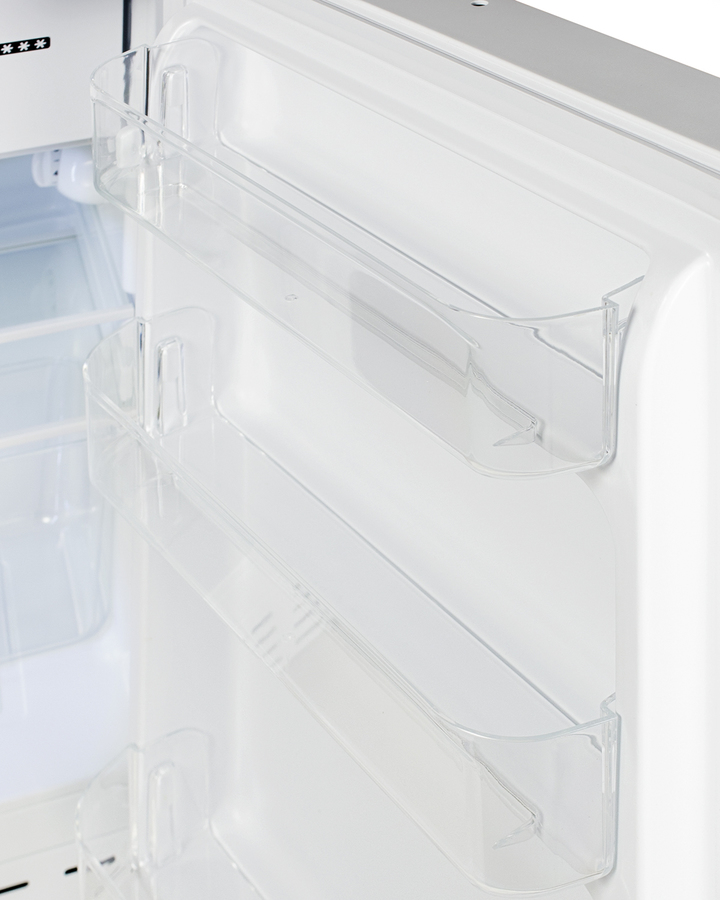

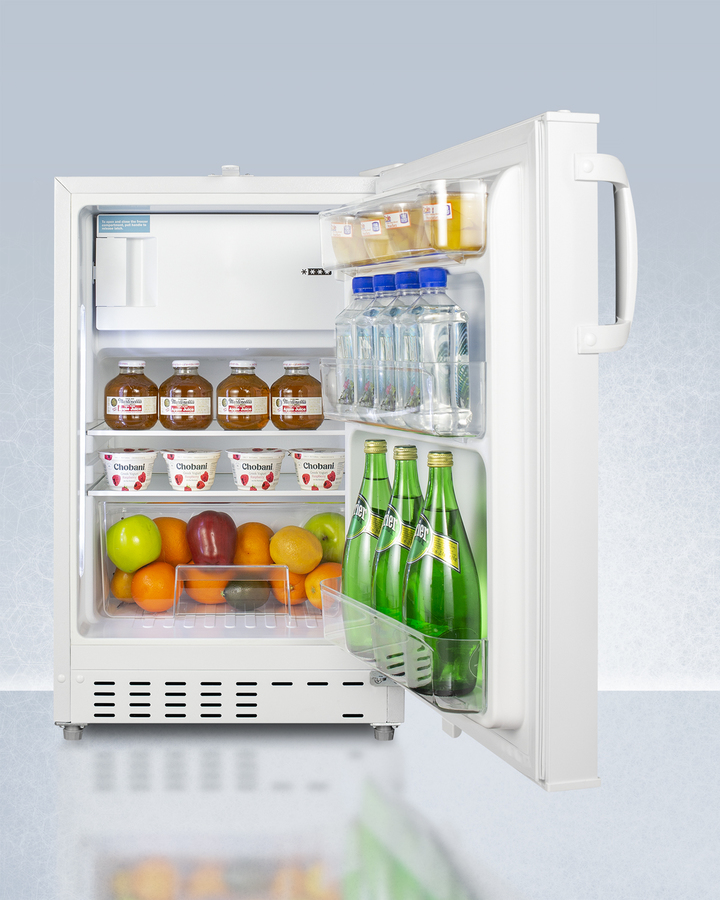

Door shelves
Three removable door racks for additional storage of bottles and other taller items
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished white cabinet
Allows the unit to be used freestanding
Interior light
Front-located LED light ensures entire interior is lit when door opens
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Dimensions & Weight
| Width | 19.75 in. |
| Height | 31.75 in. |
| Length | 22.5 in. |
| Weight | 65 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.16 ft³ |
| Dimensional Weight | 101.5 lbs. |
| Total of Cubes | 8.16 ft³ |
| Total of Dimensional Weight | 101.5 lbs. |
Overview Refrigerator-Freezer
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067957 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 17.5" (44 cm) |
| Refrigerator - Interior Width | 16.25" (41 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 3 |
| Refrigerator - Temperature Range | 35-46º F |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 0.92 oz. |
| Freezer - Interior Height | 5.75" (15 cm) |
| Freezer - Interior Width | 16.25" (41 cm) |
| Freezer - Interior Depth | 11.25" (29 cm) |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
