20" Wide Built-In Pharmacy All-Freezer, ADA Compliant - ACF33LCAL

This product has been discontinued by the manufacture and is no longer available.

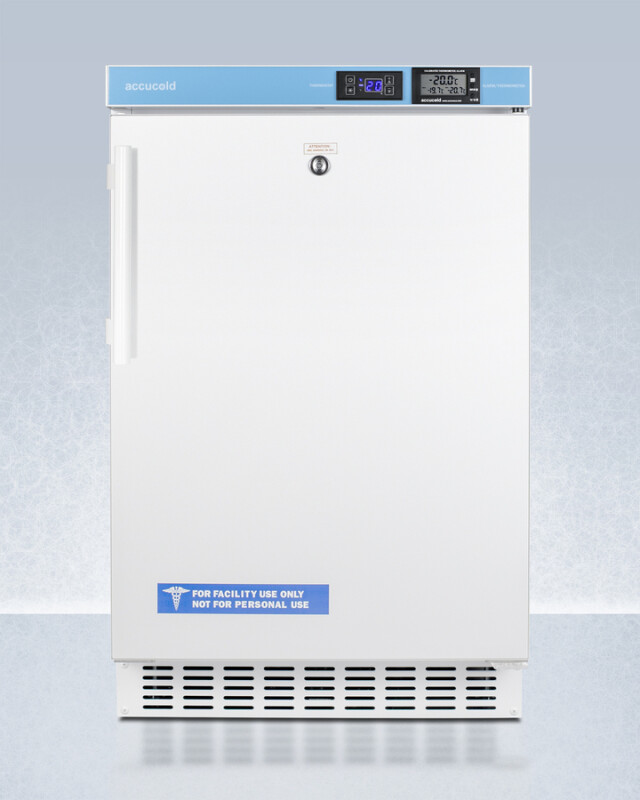

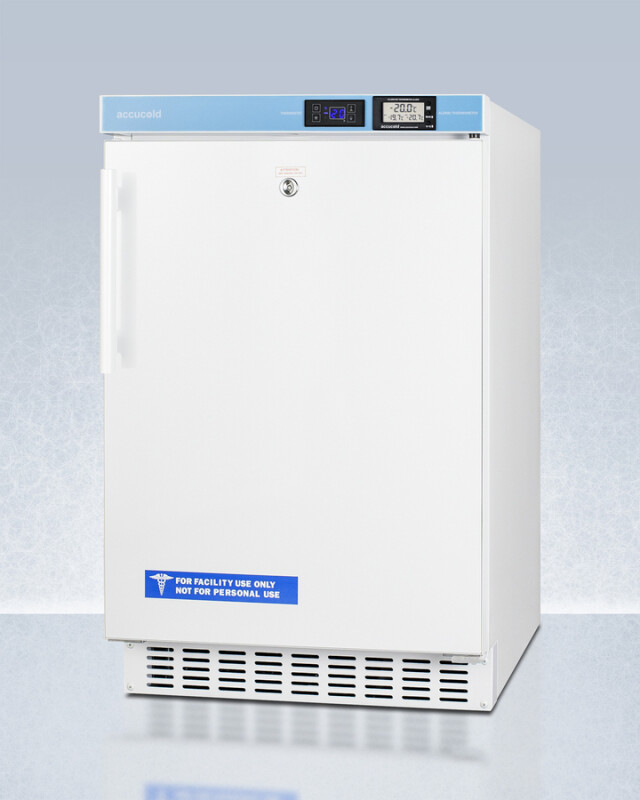

20" Wide Built-In Pharmacy All-Freezer, ADA Compliant

Model: ACF33LCAL

20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL
20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL
20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL
20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL
20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL
20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL
+5more

Color : White

20" Wide Built-In Pharmacy All-Freezer, ADA Compliant ACF33LCAL
White

Key Features

  • Vaccine freezer

  • Built-in capable

  • Slim 20" width

  • External temperature readout

  • Digital thermostat

  • High/low temperature alarm

  • Buffered temperature probe

  • Factory installed lock

Read More

Description

Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC, VFC and VFA guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters. The ACF33LCAL all-freezer is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA compliant counters and fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops. For optimum temperature management, the ACF33LCAL features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC, VFC and VFA). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACF33LCAL.) Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view. At just under 20" wide, the ACF33LCAL is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. For a matching refrigerator, see the ACR45LCAL (solid door) or ACR46GLCAL (glass door). Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
Read More

Available from Drimmers Appliances, serving customers throughout Florida.

Features
Specifications
Certifications

Features

Vaccine freezer

Purpose-built to meet the recommendations of the CDC, VFC and VFA for reliable vaccine storage

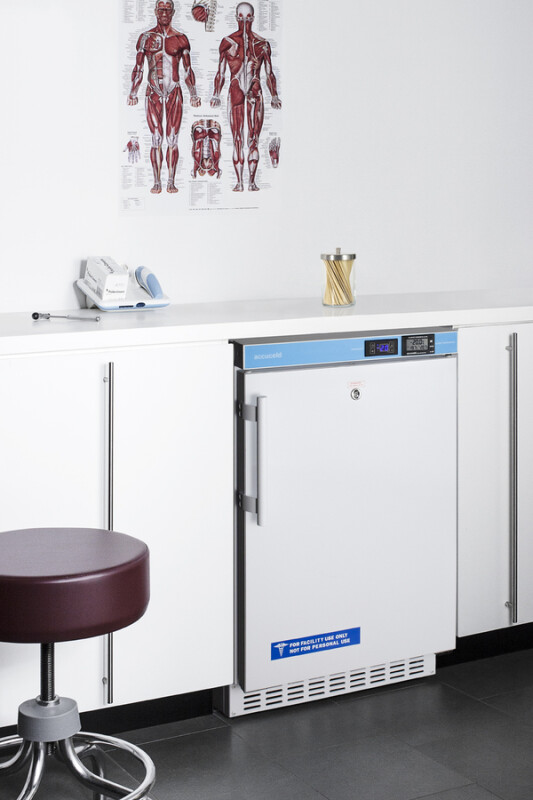

Built-in capable

Front-breathing system allows the unit to be installed under cabinets with minimum clearance

Slim 20" width

Full 2.65 cu.ft. capacity inside conveniently slim footprint

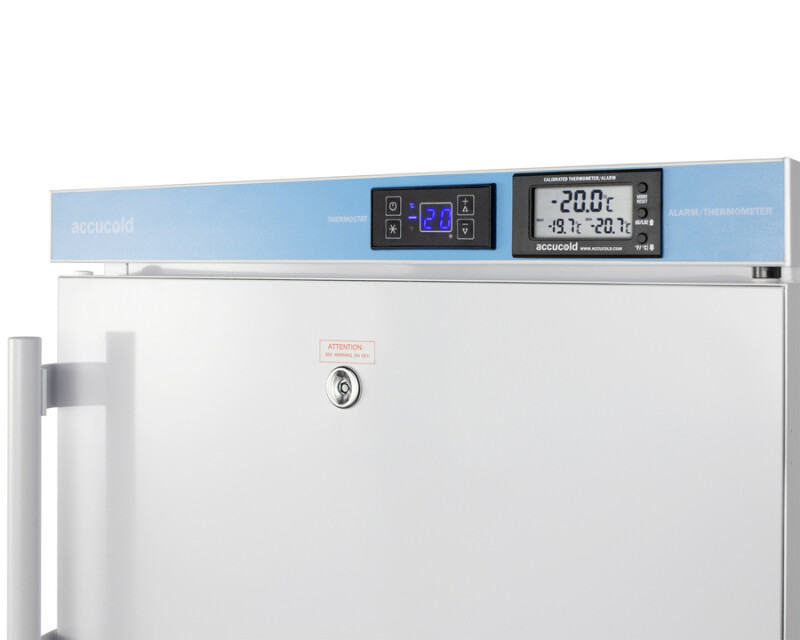

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

Buffered temperature probe

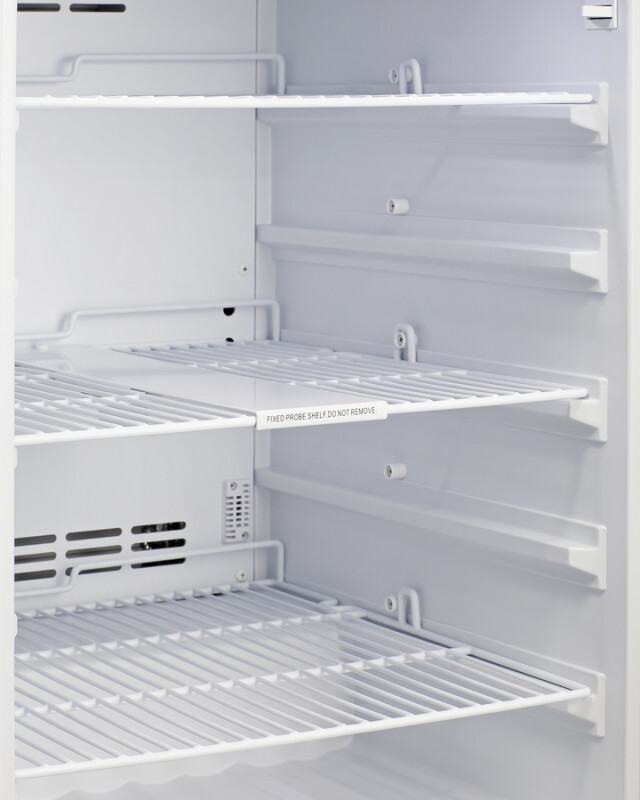

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Frost-free

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

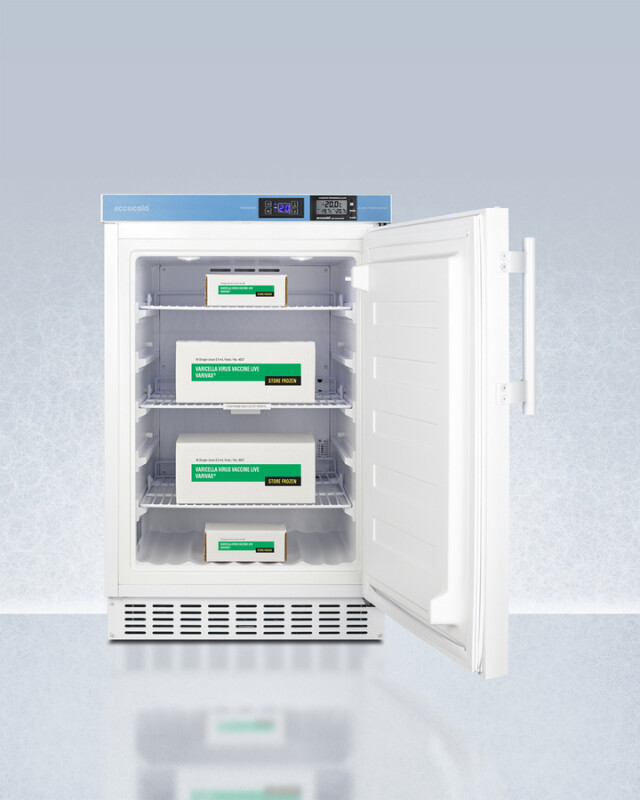

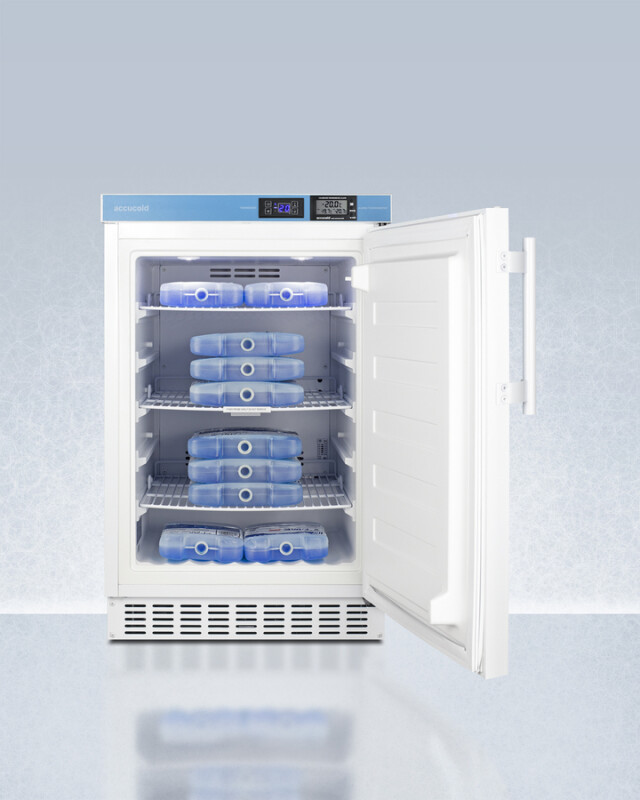

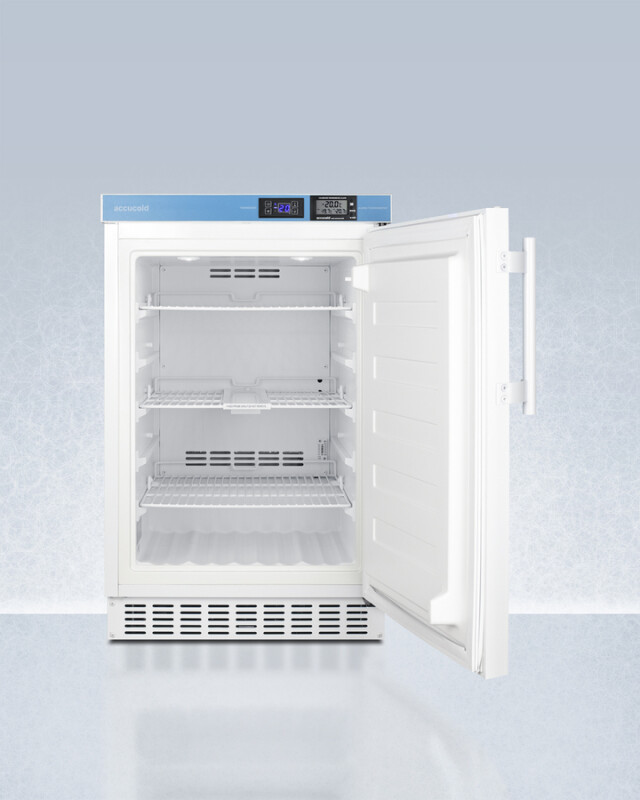

Adjustable wire shelves

Rearrange freezer space to accommodate all sizes or remove shelves for simple cleanup

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Reversible door

User-reversible door swing makes it easy to adjust to your setting as needed

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Sealed back

Space-saving design with no exposed coils for easier cleanability

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Handle included

Side-mounted handle for user convenience (not required to operate the unit)

Fully finished white cabinet

Allows the unit to be used freestanding

Matching refrigerator

Pair with Accucold ACR45L (solid door) or ACR46GL (glass door) all-refrigerators to create a matching side-by-side or stackable set

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

ADA compliant

Sized just under 32" high to allow installation under lower ADA compliant counters

NIST calibrated external temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Certificate of calibration included

Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records

Certifications

ADA Compliant certification

ADA Compliant

Specifications

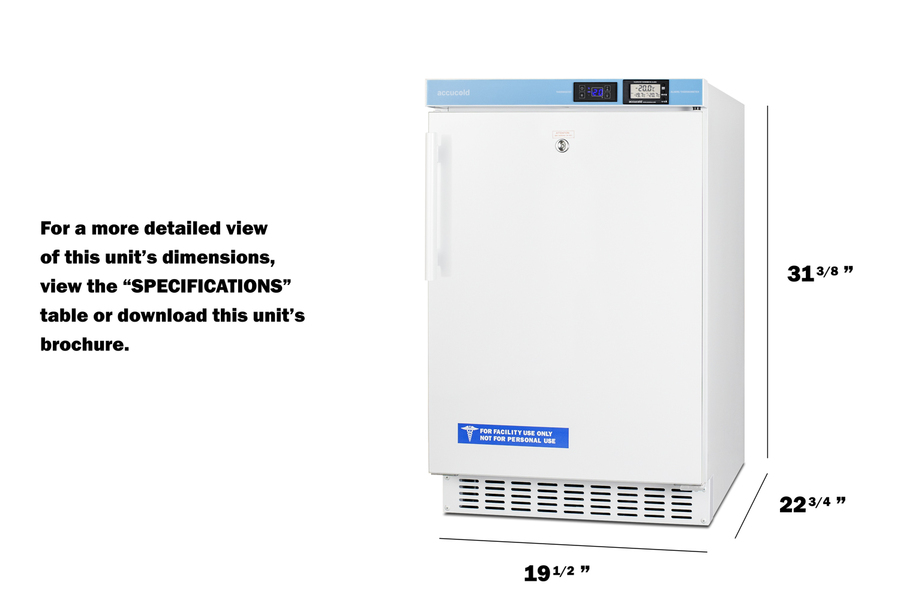

Dimensions & Weight

Width19.5 in.
Height31.38 in.
Length22.75 in.
Weight81 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.06 ft³
Dimensional Weight100.15 lbs.
Total of Cubes8.06 ft³
Total of Dimensional Weight100.15 lbs.

Overview Freezer

Nominal Height32.0" (81 cm)
Height of Cabinet31.38" (80 cm)
Nominal Width20.0" (51 cm)
Width19.5" (50 cm)
Nominal Depth23.0" (58 cm)
Depth22.75" (58 cm)
Depth with Handle23.63" (60 cm)
Depth with door at 90°41.0" (104 cm)
Capacity2.65 cu.ft. (75 L)
Defrost TypeFrost-Free
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S
Amps2.0
Voltage/Frequency115 V AC/60 Hz
Weight81.0 lbs. (37 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101089249
Door SwingRHD
ReversibleYes
Interior Height21.25" (54 cm)
Interior Width15.0" (38 cm)
Interior Depth16.0" (41 cm)
Shelf TypeWire
Shelf Qty3
Adjustable ShelvesYes
Thermostat TypeDigital
Interior LightYes
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount1.23 oz.
High Side PSI270.0
Low Side PSI105.0
Compressor Step Height3.5" (9 cm)
Compressor Step Width15.0" (38 cm)
Compressor Step Depth4.75" (12 cm)
Temperature Range-30 to -11.6ºC /-22 to +11ºF
Sound Level38.1 dB
