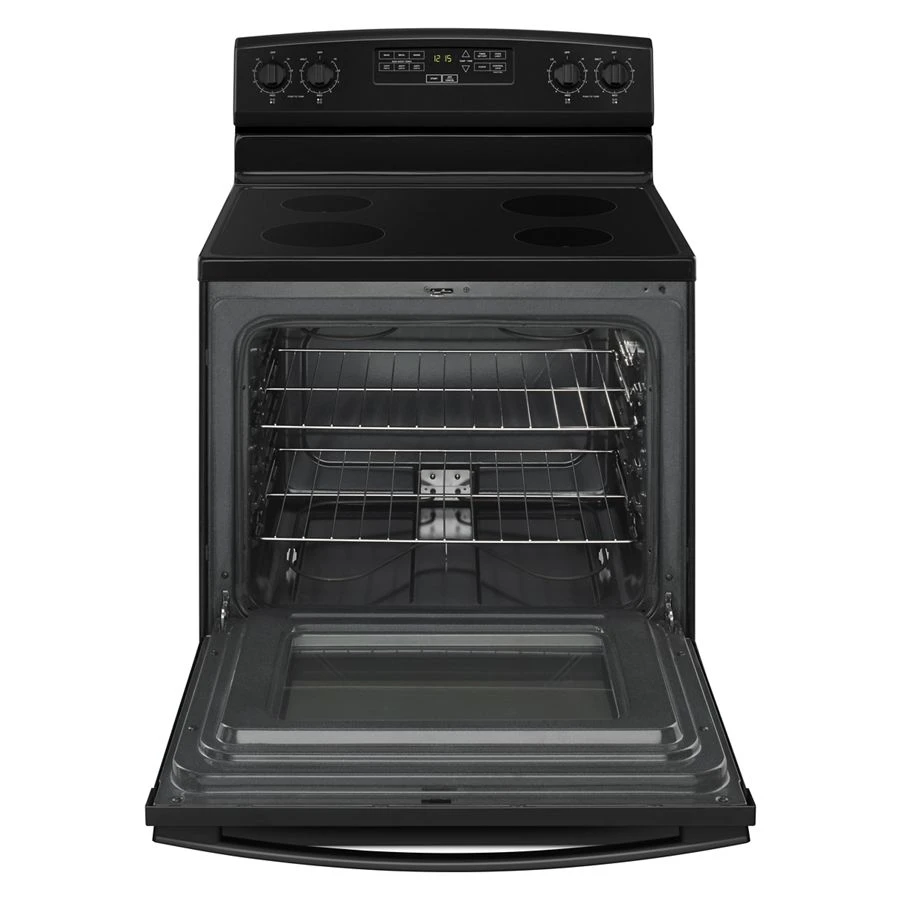

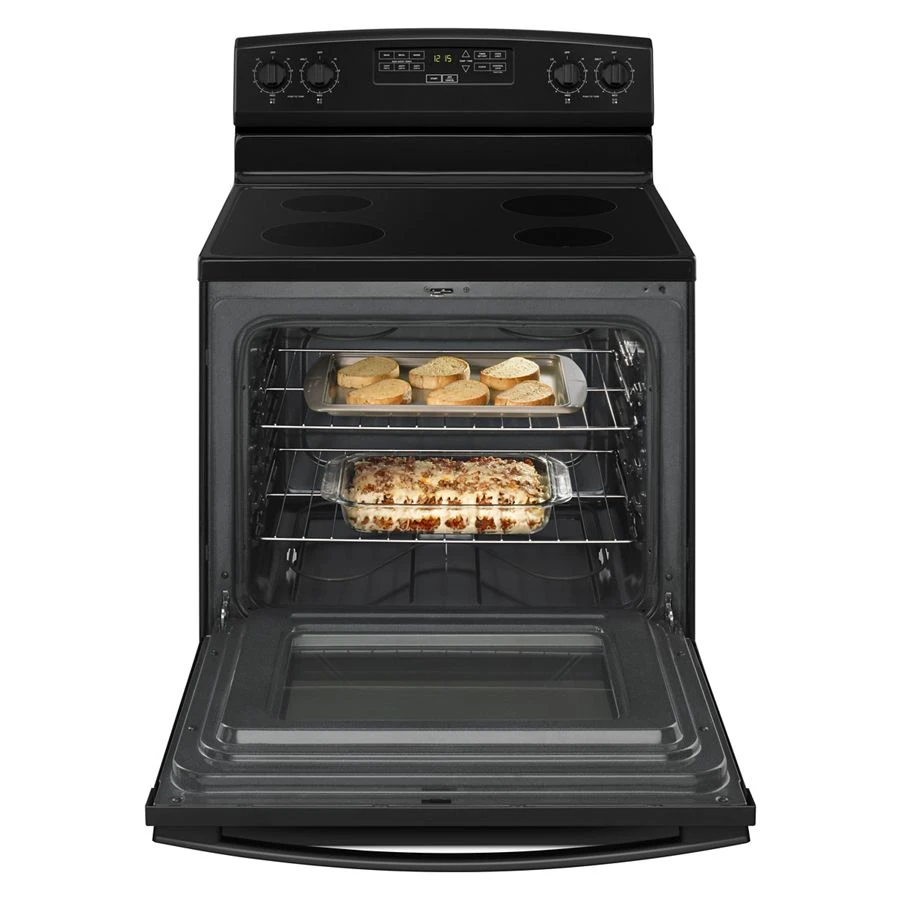

30-inch Electric Range with Extra-Large Oven Window - AER6303MFB
$598.00
Was$666.00Save $68.00 (10%)
Color : Black
$598.00
$598.00
Key Features
Large Oven Capacity (4.8 cu. ft.)
Versatile Cooktop
Bake Assist Temps
Easy Touch Electronic Controls Plus
Available from Drimmers Appliances, serving customers throughout Florida.
Features
Large Oven Capacity (4.8 cu. ft.)
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

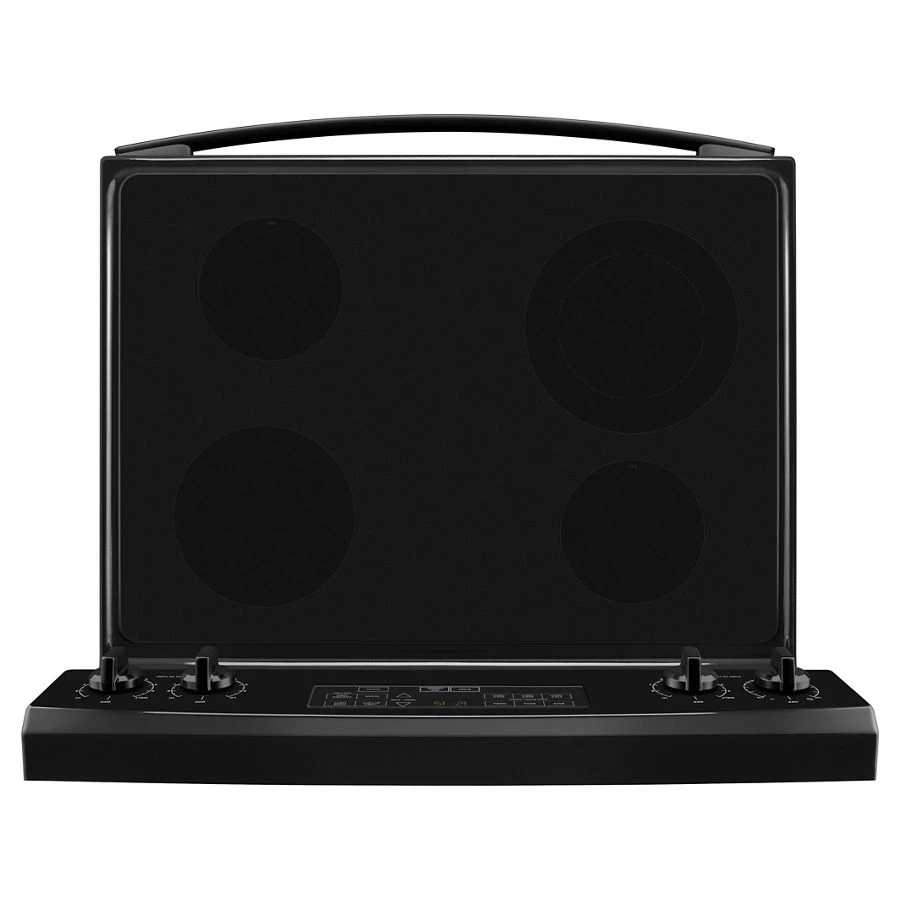

Versatile Cooktop
Our Versatile Cooktop with multiple element options provides up to 1,800 watts to help you cook more of your favorites at the same time.
Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

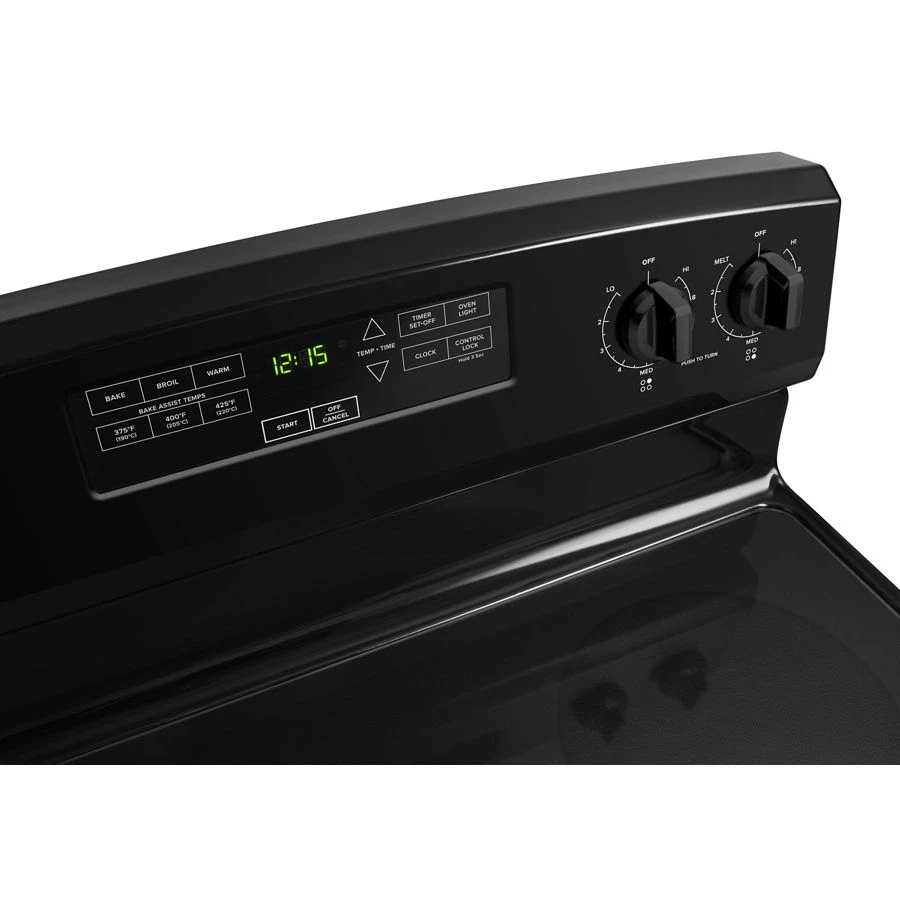

Easy Touch Electronic Controls Plus
Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Specifications
Controls
| Display Color | Green |
| Electronic Display Type | LED |
Cooktop Details
| Cooktop Control Knob Color | Color Coordinated |
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Porcelain Coated Steel |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Certifications
| ADA Compliant | No |
| UL | Yes |
| Prop 65 | Yes |
Electrical
| Amps | 40 |
| Power Cord Included | No |
| Volts | 120 |
Other
| Capacity (Cu Ft) | 4.80 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | - |
| Carton Depth | 29 |
| Carton Height | 48 3/4 |
| Carton Width | 32 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 36 |
| Cutout Width (in) | 30 |
| Depth Closed Excluding Handles | 25 5/16 |
| Depth With Door Open 90 Degree | 46 11/16 |
| Gross Weight | 187 |
| Maximum Height | 47 7/8 |
| Minimum Height | 46 7/8 |
| Net Weight | 0.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 36.0000 |
| Cutout Width(IN,inches) | 30.0000 |
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
| Maximum Height(IN,inches) | 47.8750 |
| Minimum Height(IN,inches) | 46.8750 |
| Carton Depth(IN,inches) | 29.0000 |
| Carton Height(IN,inches) | 48.7500 |
| Carton Width(IN,inches) | 32.0000 |
| Cutout Height Min(IN,inches) | 36.0000 |
| Gross Weight(LB,pounds) | 187 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 40 lbs. |
| Total of Shipping Weight | 40 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.5 ft³ |
| Dimensional Weight | 279.65 lbs. |
| Total of Cubes | 22.5 ft³ |
| Total of Dimensional Weight | 279.65 lbs. |
Details
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
| Natural Gas Convertible | No |
| Oven Selections | Audible Signal, Clock, Control Lock, Sabbath Mode, Timer, Warm Hold |
Element/Burner Details
| Cooktop Element Style | Smoothtop |
| Left Front Element-Burner Size | 8in. |
| Left Front Element-Burner Type | Radiant |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Radiant Hyper |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Power | 1200W |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Radiant |
| Right Rear Element-Burner Size | 8in. |
| Right Rear Element-Burner Type | Radiant |
| Left Front Element-Burner Power | 1,800W |
| Left Rear Element-Burner Power | 1,200W |
| Right Rear Element-Burner Power | 1,800W |
Exterior Details
| Door Type | Glass Window |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
| Handle Color | Black |
| Handle Material | Plastic |
| Handle Type | Reach Through Handle |
Oven Cavity Details
| Bake Element Power | 2,400 W |
| Broiler Element Power | 3,400 W |
| Broiler Location | Top of Oven |
| Convection Element Type | None |
| Convection Functions | No |
| Door Removable | Yes |
| Hidden Bake Element | No |
| Interior Color | Grey |
| Natural Gas Convertible | No |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Manual Clean |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard |
Dimensions
| Capacity | 4.8 cu. ft. |
| Common Size | 30 in |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30 in |
| Depth | 27-3/4 in |
| Depth Closed Excluding Handles | 25-313/1000 in |
| Depth With Door Open 90 Degree | 46-86/125 in |
| Height | 46-7/8 in |
| Maximum Height | 47-7/8 in |
| Minimum Height | 46-7/8 in |
| Net Weight | 0 lbs |
| Oven Interior Depth | 18-1/2 in |
| Oven Interior Height | 18-1/8 in |
| Oven Interior Width | 24-1/2 in |
| Width | 29-7/8 in |
| Gross Weight | 187 lbs |
