$2,899.00

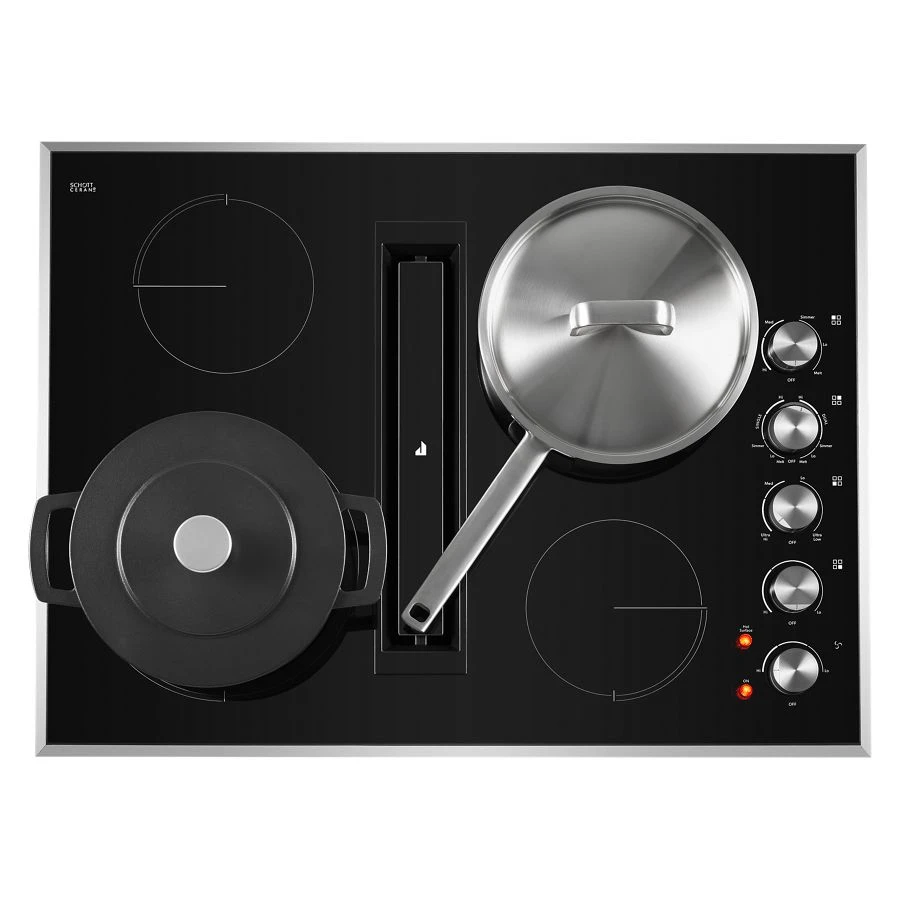

Euro-style 30" Jx3™ Electric Downdraft Cooktop - JED3430GS
$2,899.00
Current Rebates
Key Features
DuraFinish® Glass Protection
JX3™ Downdraft Ventilation System with 3 Speeds
Color-Coordinating Die-Cast Metal Knobs
10"/6" Dual-Choice™ element
Lustre Brushed Metal Design
Perimetric Extraction
Available from Drimmers Appliances, serving customers throughout Florida.
Features
DuraFinish® Glass Protection
DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
Color-Coordinating Die-Cast Metal Knobs
Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
10"/6" Dual-Choice™ element
Enjoy cooking flexibility and efficiency with a two-tiered single element that accommodates various-sized cookware.

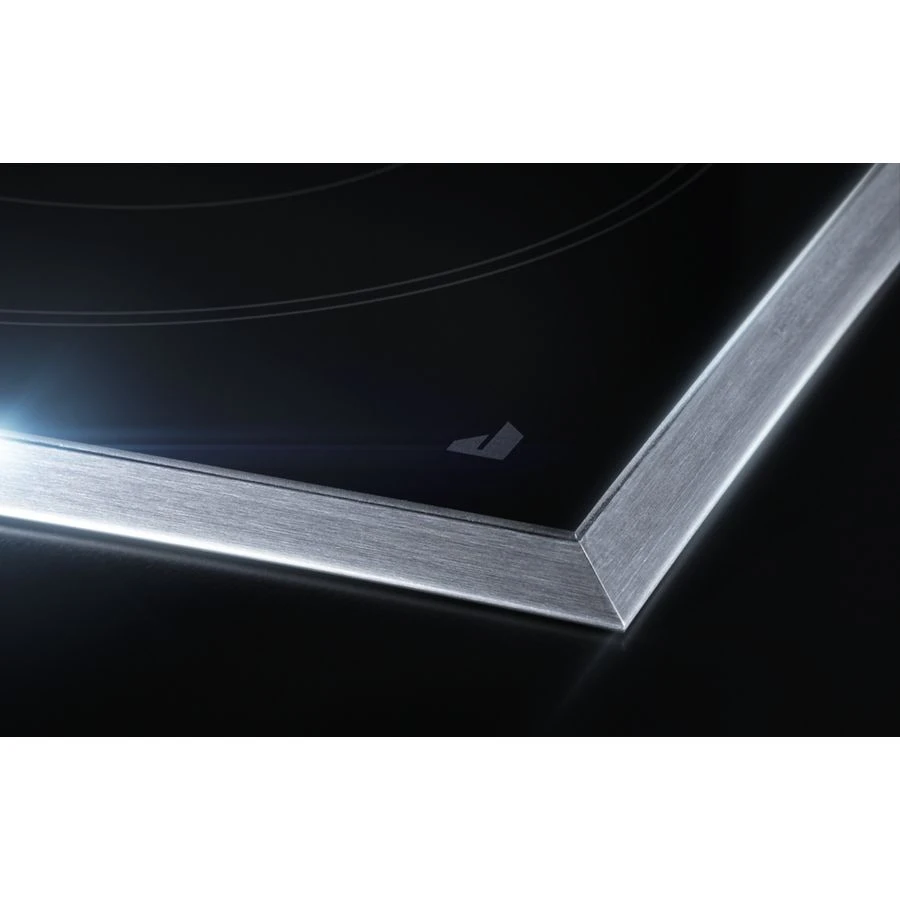

Lustre Brushed Metal Design
Blur the lines of temptation with tight corners of lustrous brushed metal that will leave you reeling.
Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft³ |
| Dimensional Weight | 17.96 lbs. |
| Total of Cubes | 1.44 ft³ |
| Total of Dimensional Weight | 17.96 lbs. |
Dimensions & Weight
| Width | 30.88 in. |
| Height | 3.07 in. |
| Length | 26.38 in. |
| Weight | 82 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 35 1/8 |
| Cutout Depth (in) | 21 1/8 |
| Cutout Width (in) | 28 7/8 |
| Gross Weight | 82 |
| Maximum Height | 18 23/32 |
| Net Weight | 70.0 |
| Gross Weight | 82 |
| Cutout Depth(IN,inches) | 21.1250 |
| Cutout Width(IN,inches) | 28.8750 |
| Depth(IN,inches) | 23.2500 |
| Maximum Height(IN,inches) | 18.7188 |
| Net Weight(LB,pounds) | 70 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 35.1250 |
| Gross Weight(LB,pounds) | 82 |
| Cutout Depth | 21.125 |
| Cutout Width | 28.875 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 35.12 |
| gross weight | 82 |
| net weight | 70 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35.13 in. |
| Shipping Height | 23.81 in. |
| Shipping Length | 31.38 in. |
| Shipping Weight | 122 lbs. |
| Total of Shipping Weight | 122 lbs. |
| Source | Calculation |
Cooktop Details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Installs Over Built-In Oven | No |
| Cooktop Selections | Convertible To Duct Free Ventilation, Downdraft |
| Griddle Included | N/a |
Exterior Details
| Knob Color | Stainless Steel |
| Knob Type | Metal |
Details
| Design Expression | Stainless Steel |
| Digital Display | No |
| Fuel Type | Electric Radiant |
| LP Convertible | No |
| Power Outage Compatible | No |

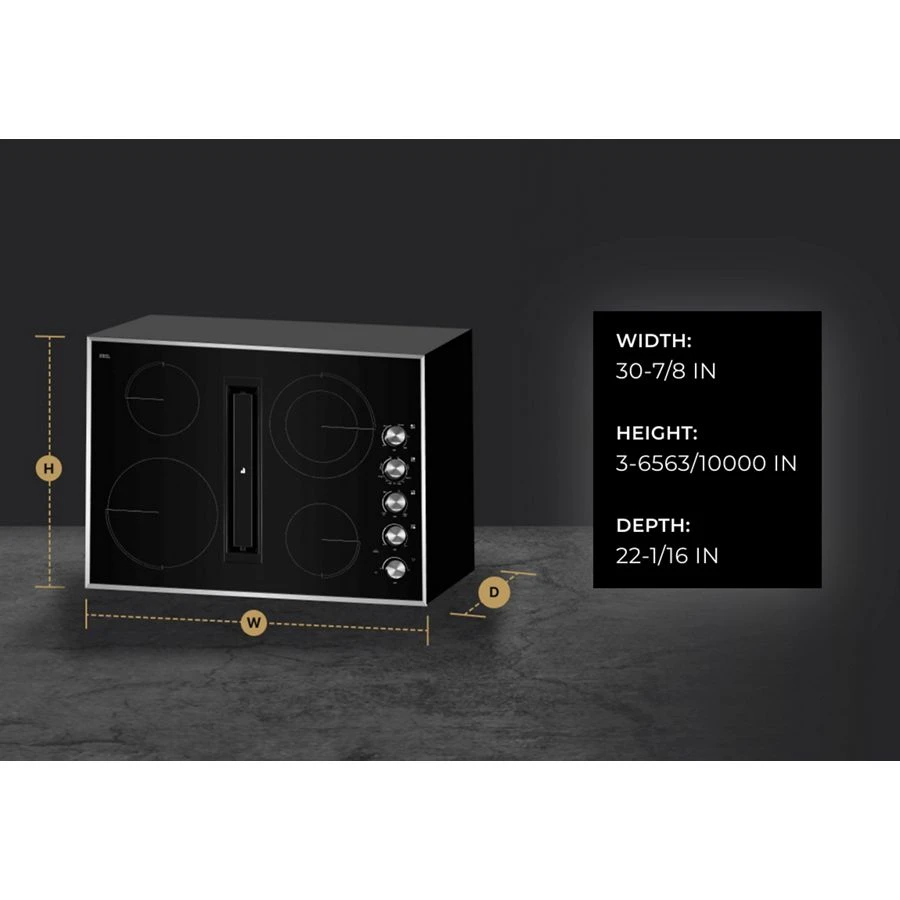

Dimensions
| Common Size | 30, 30 |
| Cutout Depth | 21-1/8 In |
| Cutout Width | 28-7/8 In |
| Depth | 22-1/16 In |
| Gross Weight | 82 Lbs |
| Height | 3-6563/10000 In |
| Maximum Height | 18-1797/2500 In |
| Net Weight | 70 Lbs |
| Width | 30-7/8 In |
Element/Burner Details
| Automatic Pan Detection | No |
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-Burner Size | 10in. |
| Left Front Element-Burner Type | Hyper |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Hyper |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Single |
| Right Rear Element-Burner Size | 10in./6in. |
| Left Front Element-Burner Power | 3,200w |
| Left Rear Element-Burner Power | 1,300w |
| Right Front Element-Burner Power | 1200w |
| Right Rear Element-Burner Power | 3000w/1400w |
| Right Rear Element-Burner Type | Dual-stacked Burner |
Certifications
| ADA Compliant | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
| Energy Star® Qualified | Energy Star® Qualified |
Ventilation Details
| CFM Motor Class | 310 |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
Controls
| Control Location | Right Side |
| Control Type | Knobs |
| Number of Vent Speeds | 3 |
Electrical
| Amps | 40 |
| Power Cord Included | No |
| Volts | 220 |
